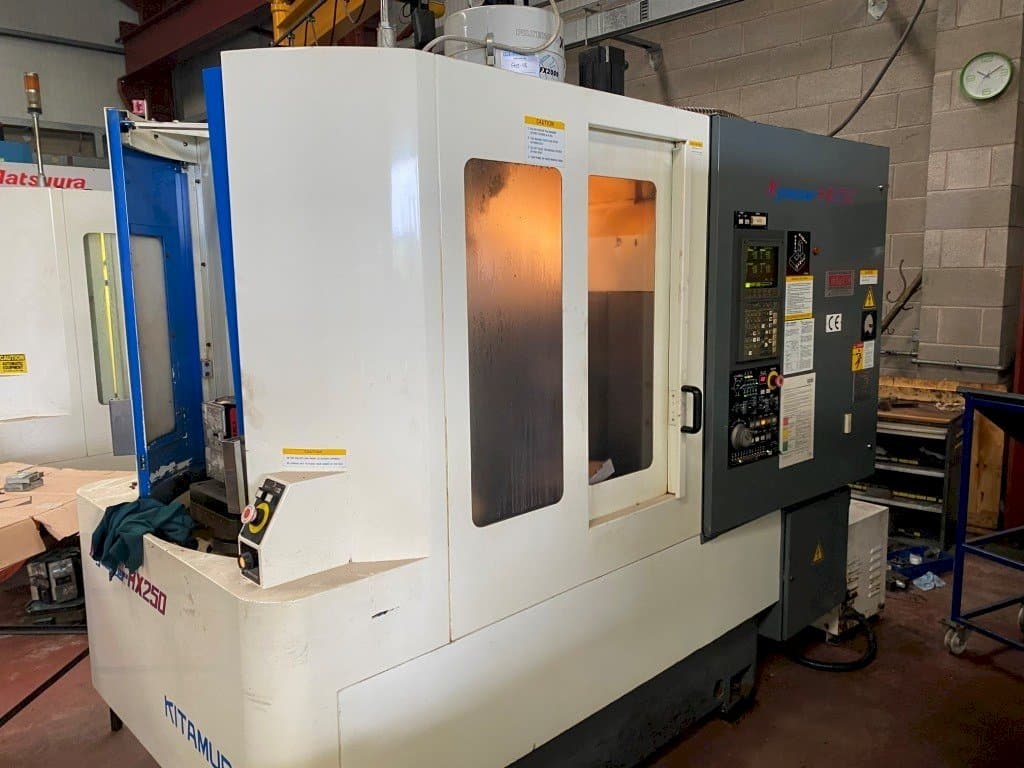

Front view of Kitamura Mycenter HX250 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Kitamura Mycenter HX250

Photo Gallery

Kitamura - Mycenter HX250IE-MIL-KIT-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Kitamura Mycenter HX250 Horizontal Machining Center - Used

Show in original language

This Kitamura Mycenter HX250 Horizontal Machining Center was manufactured in Japan in 1999. This machine incorporates a table of 254x254 mm and a 8000 rpm spindle. In the past, it has mainly worked with steel in the production of machined components.

Overview

brand: Kitamura
year: 1999
MODEL: Mycenter HX250
application type: Milling
Location: Ireland
machine type: Horizontal Machining Centre

Technical Information - Kitamura Mycenter HX250

General Data

Measurements width: 2330 mm
Measurements depth: 2950 mm
Measurements height: 2470 mm
Machine weight: 4500 kg

Control Unit

Model: i80
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 305 mm
Y-AXIS Movement: 305 mm
Z-AXIS Movement: 330 mm
B-AXIS Movement: 0.001-360° MM

Workpiece

Workpiece drm: 350 mm
Workpiece z: 400 mm
Workpiece weight: 100 kg

Table

Outer length: 254 mm
Outer width: 254 mm

Tools

Slots in storage: 24
Max weight: 2 kg
Max tool diameter: 50 mm
Max tool length: 200 mm
Type of tool holder: BT30

Media

Main electronic connection: 380 V
Power consumption: 8 kVA

Additional equipment

- Filtermist FX2000
- 2 x Pallets

Additional Information

Machine history

Material type: Steel
End product: Machined components

Machine Benefits

Technical Machine Benefits:
- - Compact footprint
Qualitative Machine Benefits:
- - Well maintained machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
