Kitamura Spark Mycenter 3XiF

Show in original language

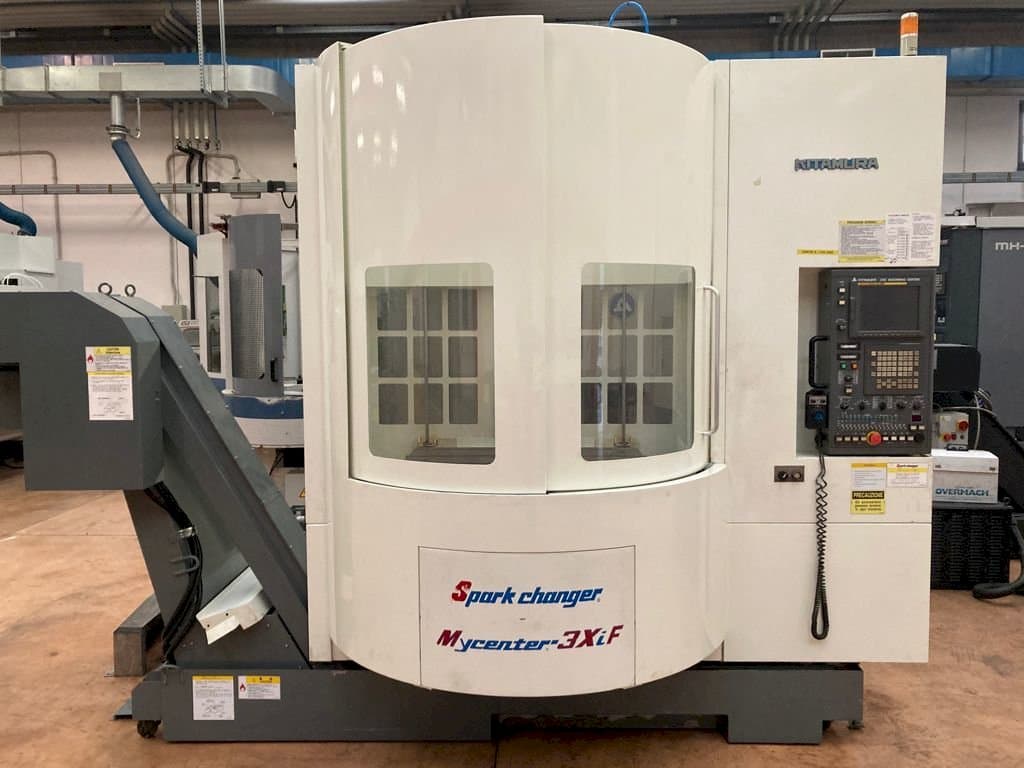

This Kitamura Spark Mycenter 3XiF Vertical Machining Center was manufactered in the year 2005. This 3 axis machine is operated through a Fanuc Series 16i-MB control unit. This machine can work with a spindle speed range up to 20000 rpm.

Overview

brand: Kitamura
year: 2005
MODEL: Spark Mycenter 3XiF
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Kitamura Spark Mycenter 3XiF

Control Unit

Model: Series 16i-MB
Brand: FANUC

Main drive

Spindle speed range: 20000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 760 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 455 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 460 mm
Z-AXIS Rapid traverse: 36 m/min

Table

Outer length: 410 mm
Outer width: 864 mm
Table load: 200 Kg

Tools

Type of tool holder: ISO 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool magazine: 30

Extra information

- Options: Chip conveyor, Pallet changer, Electronic handwheel, internal coolant supply, high pressure pump predisposition.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
