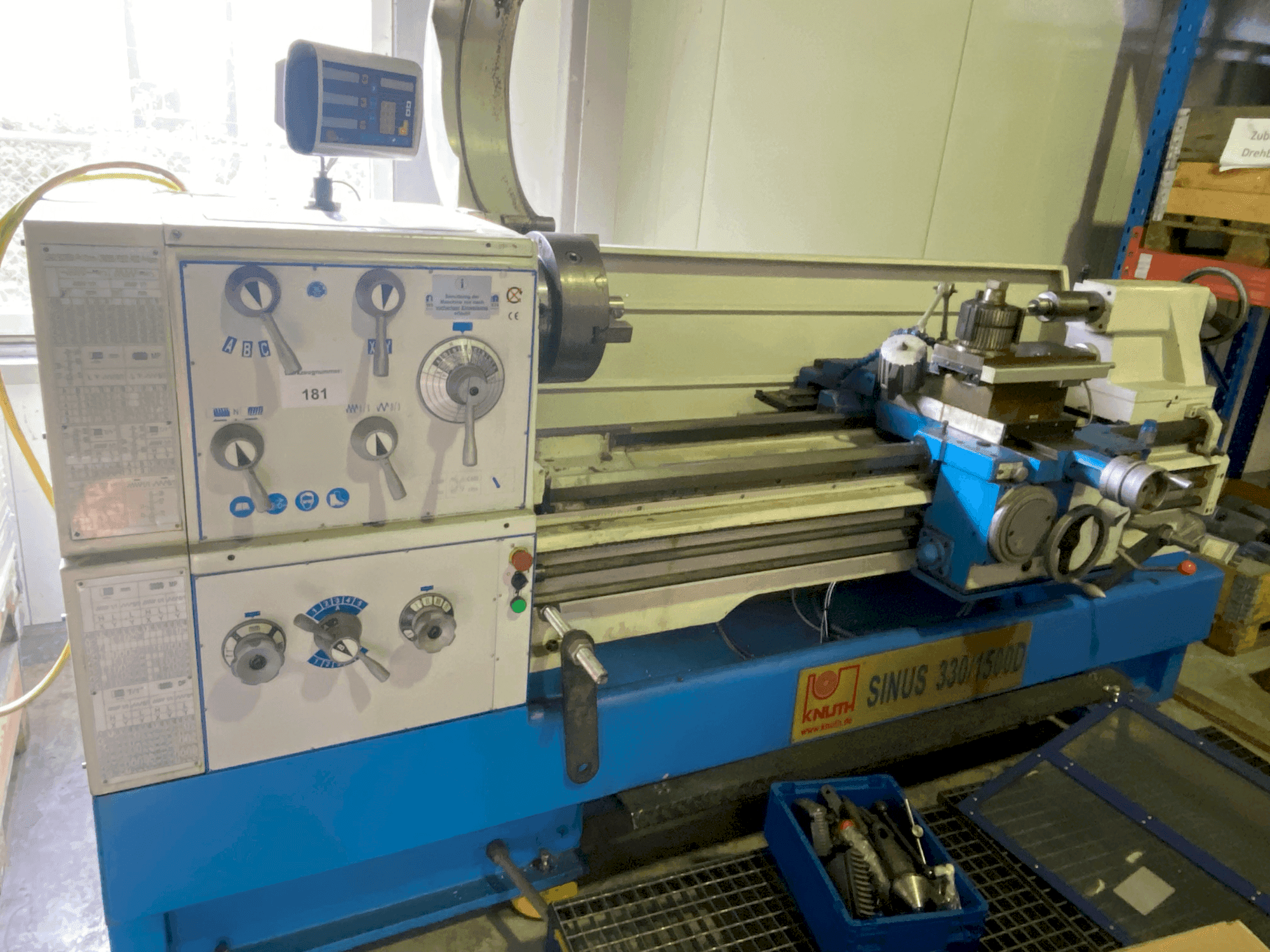

Front view of KNUTH SINUS 330/1500 D machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KNUTH SINUS 330/1500 D

Photo Gallery

KNUTH - SINUS 330/1500 DDE-TUR-KNU-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KNUTH SINUS 330/1500 D For Sale | gindumac.com

Show in original language

This KNUTH SINUS 330/1500 D horizontal turning machine was manufactured in 2009. It features a robust swing over bed of Ø 660 mm and a maximum spindle speed of 1600 RPM. The spindle bore is Ø 105 mm, supporting diverse machining tasks. Ideal for workshops requiring precision and versatility, the machine weighs up to 3300 kg, ensuring stability and performance. For more information about this horizontal turning machine, please reach out to us.

Overview

brand: KNUTH
year: 2009
MODEL: SINUS 330/1500 D
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - KNUTH SINUS 330/1500 D

General Data

Measurements width: 2000 mm
Measurements depth: 1500 mm
Measurements height: 3000 mm
Machine weight: 2700 kg / 2900 kg / 3300 kg

Main drive

Spindle speed range: 25 - 1600 RPM 1/MIN
Spindle motor power: 7.5 kW

Workpiece

Workpiece drm over bed: 660 mm
Workpiece drm over support: 440 mm

Additional equipment

- Coolant pump

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max tool shank size: 25 x 25 mm
- - Max travel of cross slide (x-axis): 368 mm / max travel of z1-axis: 230 mm
- - Tailstock quill travel: 235 mm / tailstock quill diameter: Ø 90 mm / tailstock quill internal taper: mt5
- - Coolant pump power: 0. 09 kw (1/8 hp)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
