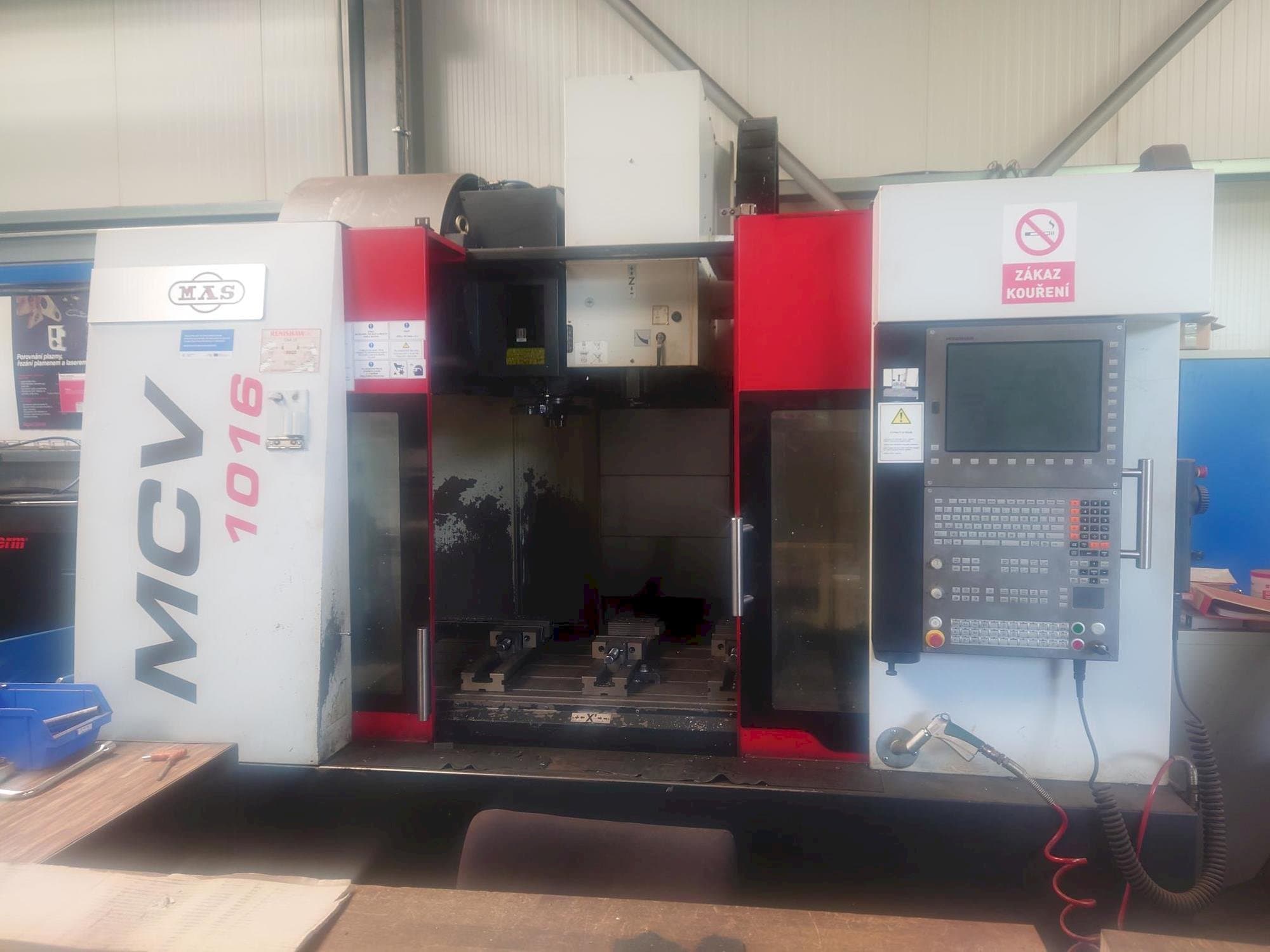

Front view of KOVOSVIT MAS MCV 1016 Quick machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

KOVOSVIT MAS MCV 1016 Quick

Photo Gallery

KOVOSVIT MAS - MCV 1016 QuickCZ-MIL-KOV-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KOVOSVIT MAS MCV 1016 Quick Vertical Machining Center

Show in original language

This KOVOSVIT MAS MCV 1016 Quick Vertical Machining Center was made in 2015 in the Czech Republic. It is equipped with a Heidenhain iTNC 530 HSCI control unit and has 3 axis. The machine has a spindle speed of 10000 rpm and is in very good condition.

Overview

brand: KOVOSVIT MAS
year: 2015
MODEL: MCV 1016 Quick
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - KOVOSVIT MAS MCV 1016 Quick

General Data

Measurements width: 3080 mm
Measurements depth: 2700 mm
Measurements height: 2937 mm
Machine weight: 5500 kg

Control Unit

Model: iTNC 530 HSCI
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 610 mm
Z-AXIS Movement: 710 mm

Workpiece

Workpiece weight: 700 kg

Table

Outer length: 1300 mm
Outer width: 600 mm
Number of tslots: 5
Distance between: 125 mm

Tools

Slots in storage: 24
Max weight: 6,5 kg
Max tool diameter: 75/120 mm
Max tool length: 300 mm
Type of tool holder: ISO 40

Media

Power consumption: 40 kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cooling through spindle
- - Workpiece + tool probe
- - Spindle motor power (s1/s6 - 40%) 17/25 kw
- - Main motor torque (s1/s6 - 40%) 162/239 nm
- - Work feedrate (x/y/z) 1-30 000 mm/min
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
