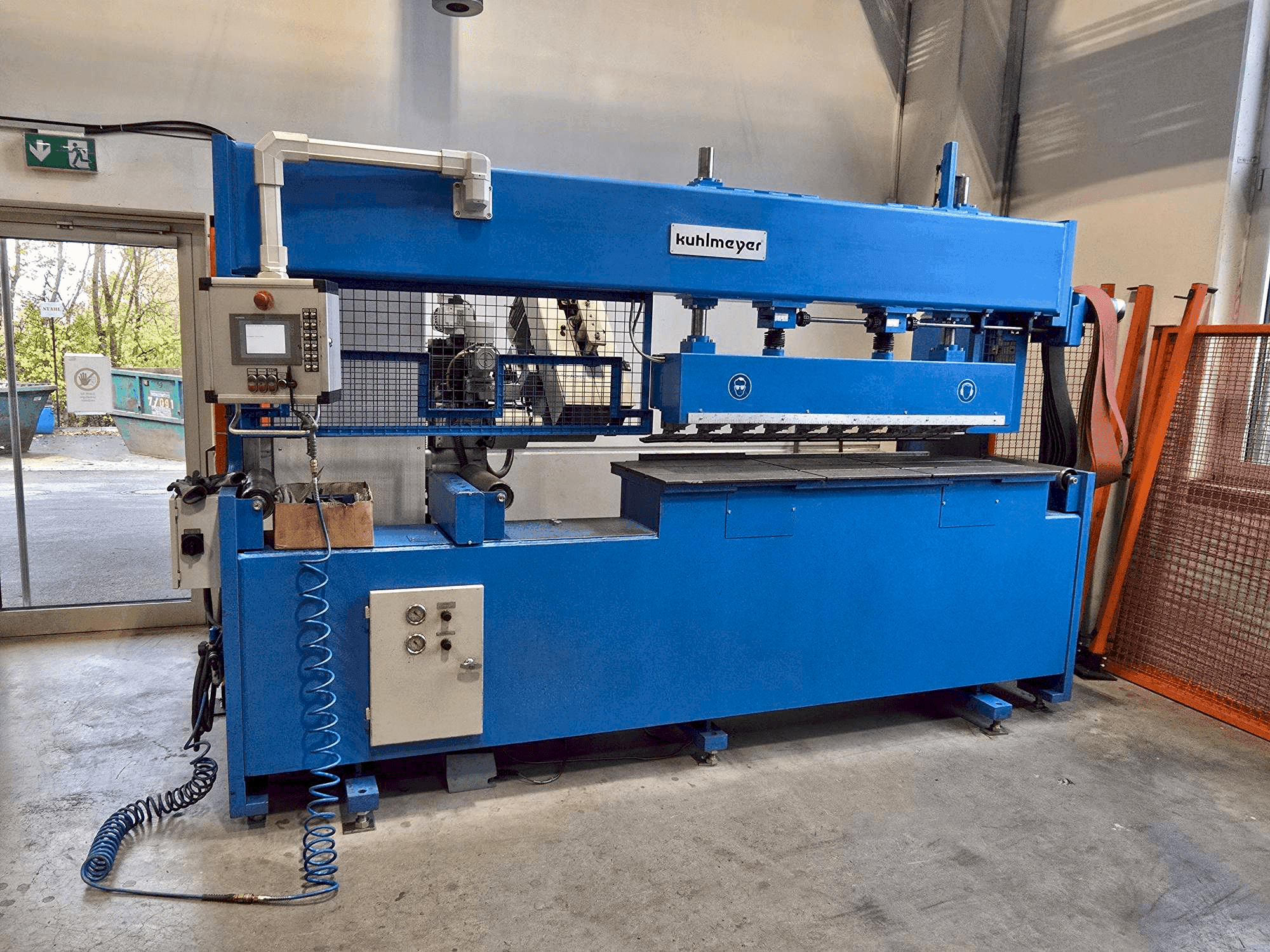

KUHLMEYER - Fasen Fix 4.1-1500DE-GRI-KUH-2012-00001

Additional equipment

• - Sanding Unit/Sanding Belt: 120 x 2300 mm/Drive Power: 7.5 kW/Belt Tension: Pneumatic/Oscillation Range: 10 - 80 mm for optimum belt utilization and cooling/Removal Rate: Approx. 80 cm³/min

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Application: for moving longer workpieces with open side supports for seam preparation before welding.
  • - Working length: 1500 mm
  • - Machine table length: 1500 mm/equipped with t-slots for attaching gauges or other devices.
  • - Clamping force: motorized adjustment for workpiece thickness: 3 - 80 mm/clamping width: 150 mm with rubber pressure bars for tolerance compensation/clamping force: 110 kp per clamp at 6 bar, complies with safety regulations.
  • - Feed speed: 0. 5 - 5 m/min (return speed: 10 m/min)/cross support: motorized adjustment for horizontal and vertical axes/angle adjustment: 0° to +60° via pivot bearing
  • - Swiveling control panel with simatic multi panel touch
  • - Keypad for setting x, y and z axes, feed speed, oscillation path, etc.
  • - Display of energy consumption depending on the removal rate
