➤ Used TOS WFQ 80 CNC Boring Mill For sale | gindumac.com

Show in original language

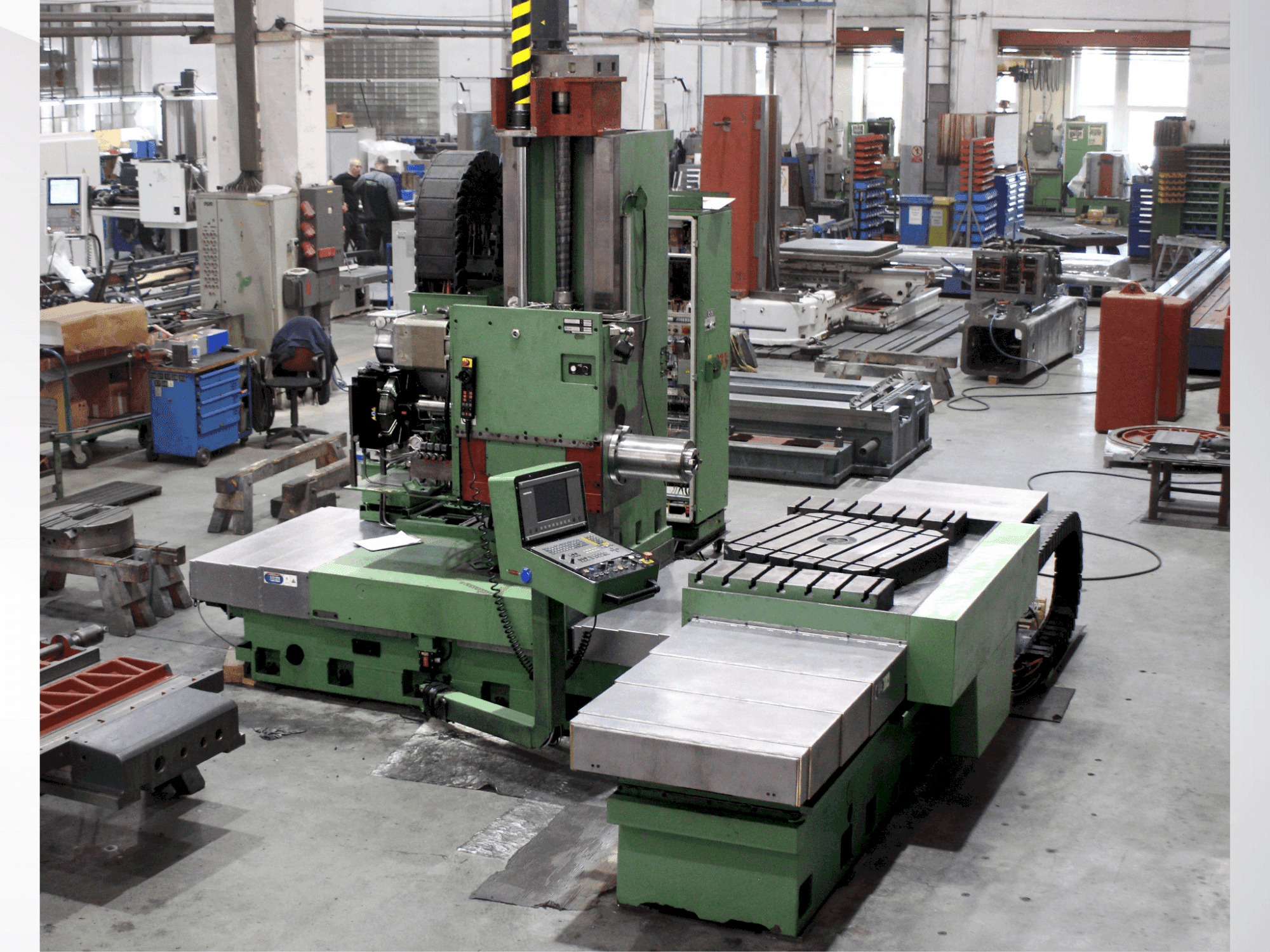

This 4-axis TOS WFQ 80 CNC boring machine was manufactured in 2008. It features a working spindle diameter of 128 mm, a clamping taper of 50 ISO, and a spindle speed of 3500 rpm. The table can handle loads up to 5000 kg with additional supports and includes a chip conveyor and SIEMENS motors and drives. A great opportunity to buy this TOS WFQ 80 CNC boring machine. Contact us for further details regarding this boring machine.

Overview

brand: TOS
year: 2008
MODEL: WFQ 80 CNC
application type: Other Machine Tools
Location: Czech Republic
machine type: Boring Machine (Metal)
control unit brand: HEIDENHAIN

Technical Information - TOS WFQ 80 CNC

Control Unit

Brand: HEIDENHAIN
Model: TNC426

Main drive

Spindle speed range: 3500 1/MIN
Tool taper: 50 ISO

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 920 mm
Z-AXIS Movement: 950 mm

Table

Outer length: 850 mm (extends to 1600 mm with supports)
Outer width: 850 mm
Table load: 3000 kg (5000 kg with supports)

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Diameter of the working spindle: 128 mm
- - Retrofitted in 2008
- - Robust table design
Qualitative Machine Benefits:
- - Precision control, very good condition

Extra information

- Machine still under power // Machine was checked and refurbished in 2024: ■ cleaning, technical inspection of the machine ■ replacement of the Heidenhain TNC426 control system ■ complete inspection of the electrical cabinet ■ replacement of damaged cables ■ repair of the control panel ■ repair of the complete geometry of the machine (geometric accuracy protocol on request) ■ inspection of the drives (new bearings for the X+Z ball screw bearings) ■ inspection of the headstock ■ inspection of the hydraulic unit ■ inspection of lubrication and reinforcement ■ new telescopic covers

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
