➤ Used SMCTL PCB110 Boring Machine For Sale | gindumac.com

Show in original language

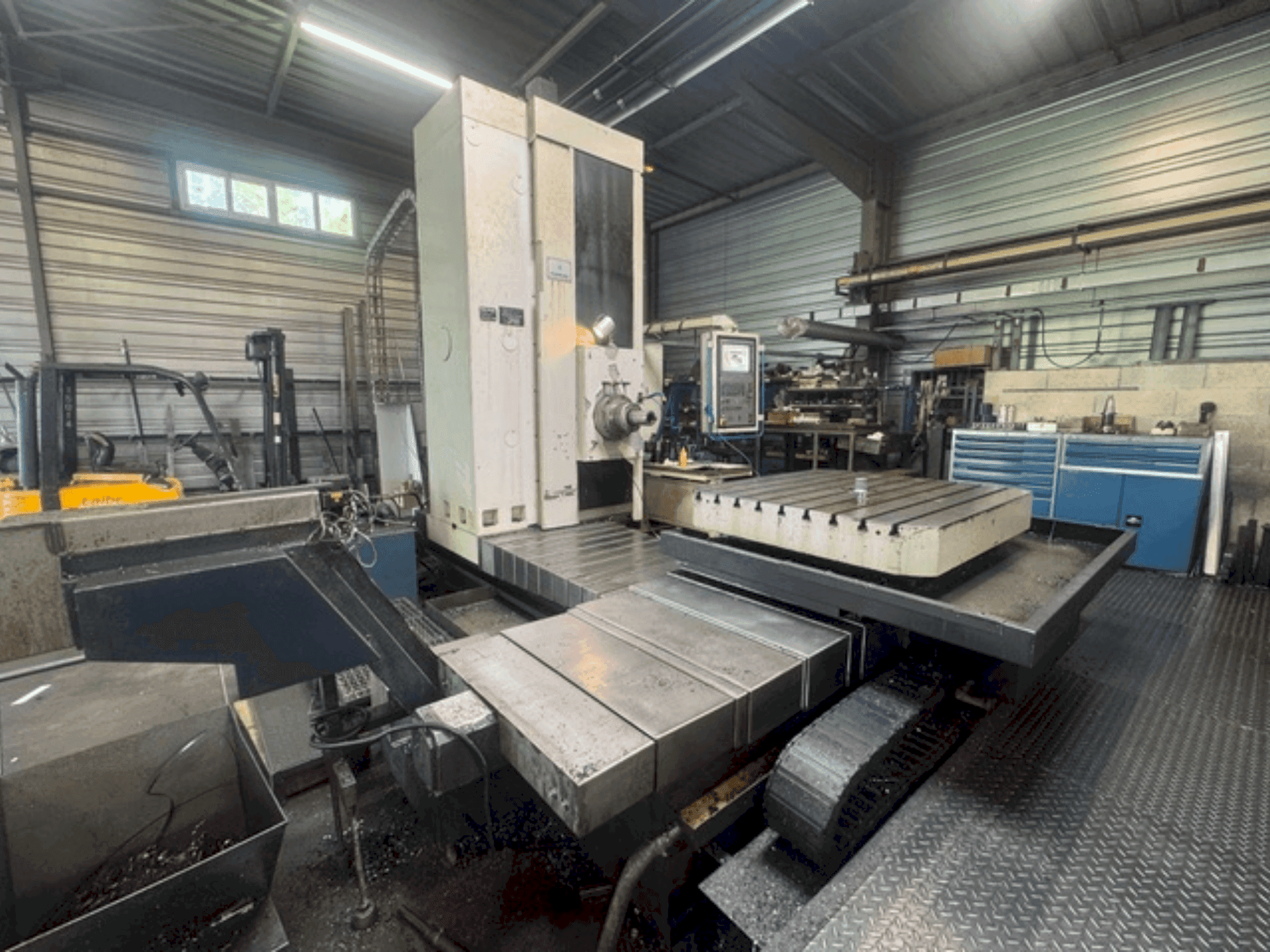

This 4-axis SMCTL PCB110 boring machine was manufactured in 2008. It features a spindle diameter of 110 mm, ISO50 spindle nose, and a spindle speed range of 10 to 2500 RPM. The table dimensions are 1250x1400 mm, supporting up to 5000 kg. It includes a HEIDENHAIN ITNC530 CNC, milling head, and a chip conveyor. Consider the opportunity to buy this SMCTL PCB110 boring machine. Contact us for more information about this machine.

Overview

brand: SMCTL
year: 2008
MODEL: PCB110
application type: Other Machine Tools
Location: France
machine type: Boring Machine (Metal)
control unit brand: HEIDENHAIN

Technical Information - SMCTL PCB110

General Data

Measurements width: 4155 mm
Measurements depth: 5555 mm
Measurements height: 4080 mm
Machine weight: 22000 kg

Control Unit

Brand: HEIDENHAIN
Model: ITNC530

Main drive

Spindle speed range: 2500 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 2500 mm
X-AXIS Rapid traverse: 2400 mm/min
Y-AXIS Movement: 1500 mm
Y-AXIS Rapid traverse: 6000 mm/min
Z-AXIS Movement: 1200 mm
Z-AXIS Rapid traverse: 9000 mm/min

Workpiece

Workpiece weight: 5000 kg

Media

Chip conveyor: Yes

Additional equipment

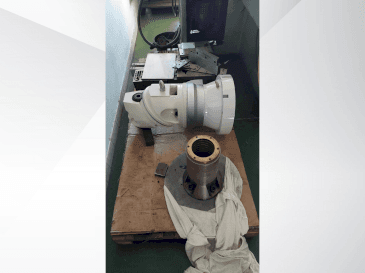

- Milling Head
- Coolant System
- All Tool Holders, Tools, Mounting Brackets, Cubes Clamping

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle diameter: 110 mm
- - Spindle nose: iso50
- - W travel: 550 mm
- - U travel: 140 mm
- - B rotation: 360°
- - Table dimension: 1250 x 1400 mm

Extra information

- Full Documentation in English

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
