MICROCUT - HBM-4HU-MIL-MIC-2018-00001

Name: MICROCUT HBM-4
Brand: MICROCUT
SKU: HU-MIL-MIC-2018-00001
Price: 22849250 INR
Availability: InStock

Rs. 22,849,250

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MICROCUT HBM-4 For Sale | gindumac.com

Show in original language

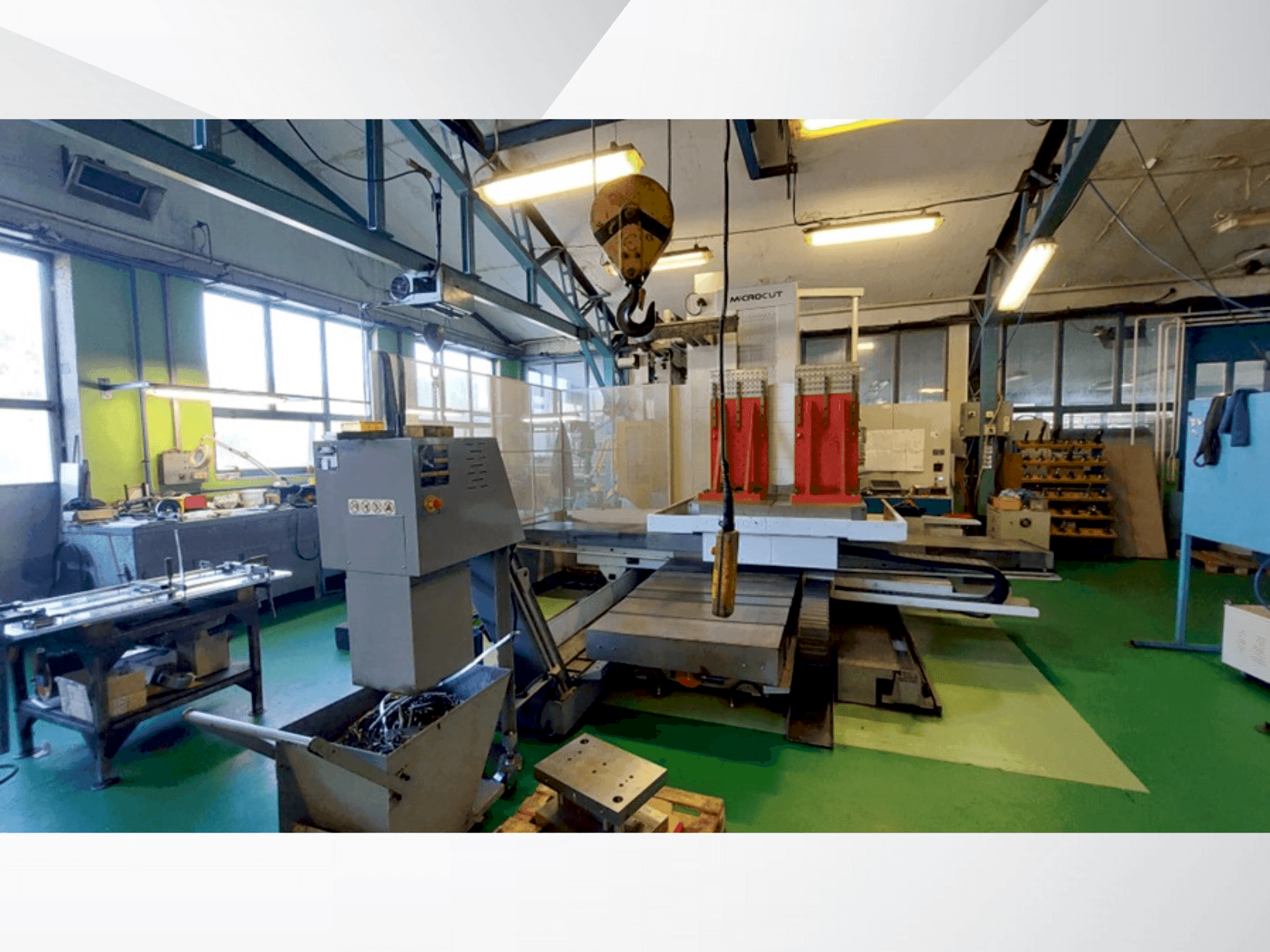

This 5-axis MICROCUT HBM-4 boring machine was manufactured in 2018. It features a robust Meehanite cast iron structure, high spindle speeds with low vibration, and a Fanuc 31iMB control for precision. The spindle supports a 150 mm diameter and operates at speeds up to 3000 rpm. The table can handle loads up to 5000 kg, with a working area of 1250 x 1500 mm. If you are looking to get high-quality boring capabilities, consider the MICROCUT HBM-4 machine we have for sale. Contact us for more information.

Overview

brand: MICROCUT
year: 2018
MODEL: HBM-4
production hours: 800
application type: Milling
Location: Hungary
machine type: Boring Machine (Metal)
control unit brand: FANUC

Technical Information - MICROCUT HBM-4

General Data

Measurements width: 4715 mm
Measurements depth: 7750 mm
Measurements height: 3700 mm
Machine weight: 22500 kg

Control Unit

Brand: FANUC
Model: 31iMB

Main drive

Spindle speed range: 35–3000 rpm 1/MIN
Spindle motor power: 15/18.5 kW
Tool taper: ISO 50
Wire diameter: 150 mm

Movement

X-AXIS Movement: 2200 MM
Y-AXIS Movement: 1600 MM
Z-AXIS Movement: 1600 MM
W-Axis Movement: 550 mm
B-AXIS Movement: 0.001°

Table

Outer length: 1250 mm
Outer width: 1500 mm
Table load: 5000 kg

Additional Information

Additional equipment

Tool Changer Type: Arm type / Tool Positions: 60 / Max Tool Diameter: Ø125 mm / Max Tool Length: 300 mm / Max Tool Weight: 25 kg / Tool Change Time: 9 seconds
Standard Accessories: Fanuc 0i CNC control, spindle oil cooler, chip conveyor, high-pressure cooling system (30 bar), hydraulic system and central lubrication, electronic handwheel, workspace lighting, spindle vibration monitoring
Optional Features: 0.001° table indexing, 3D Fanuc option for universal milling head

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
