KUNZMANN WF 650

Photo Gallery

KUNZMANN - WF 650DE-MIL-KUN-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KUNZMANN WF 650 For sale | gindumac.com

Show in original language

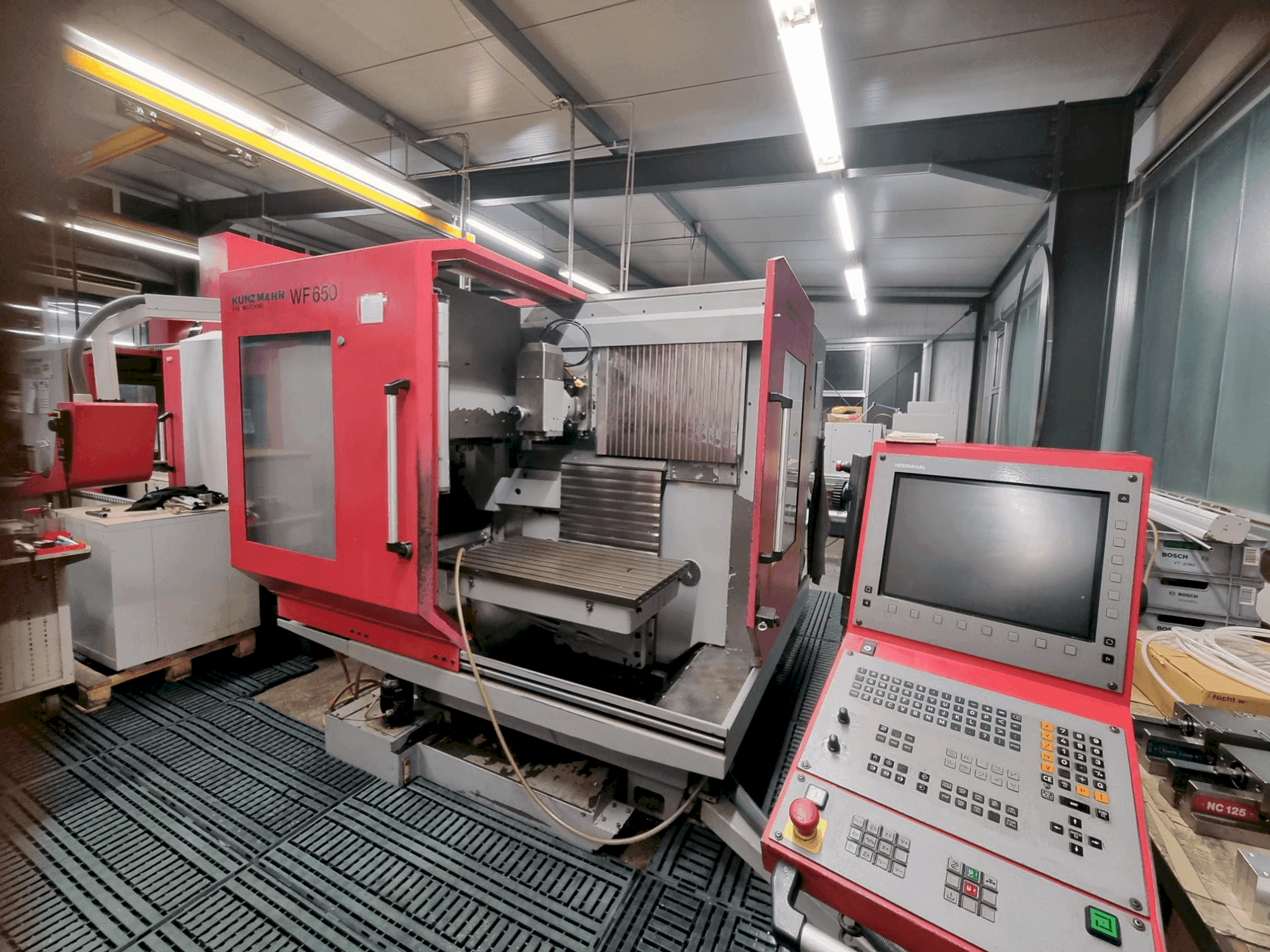

This 3-axis KUNZMANN WF 650 was manufactured in 2006. A vertical machining center featuring a robust angled table measuring 1,000 x 600 mm, iTNC 530 control, and a pull-out chip box. It includes a 2-stage gearbox with a spindle speed up to 6,500 rpm and SK 40 taper. With 20 tool places and spindle hours at 5,355, the KUNZMANN WF 650 machine we have for sale represents a solid opportunity. Contact us for further details.

Overview

brand: KUNZMANN
year: 2006
MODEL: WF 650
production hours: 20
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - KUNZMANN WF 650

General Data

Measurements width: 2700 MM
Measurements depth: 2300 MM
Measurements height: 2250 MM

Control Unit

Model: iTNC 530

Main drive

Spindle speed range: 6500 1/MIN
Spindle bore: 27mm
Tool taper: SK 40
Number of axis: 5

Movement

X-AXIS Movement: 650 MM
Y-AXIS Movement: 500 MM
Z-AXIS Movement: 450 MM

Table

Outer length: 1000 mm
Outer width: 600 mm

Tools

Slots in storage: 20

Additional equipment

- Chip flushing gun
- Pull-out chip box
- Table top edge to horizontal spindle center max 720mm
- Upper edge of table to lower edge of milling spindle max 550mm
- Max. workpiece weight 400kg
- Torque 300Nm
- Quill stroke 60mm // Quill diameter 98mm
- 20 tool places

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle hours: 5,355 h
- - Switch-on hours: approx. 20,000 h
- - Speeds: stage 1: 1-1625 min-1 stage 2 1626-6500 min-1
- - Weight with rigid angular table 4800kg
- - Weight with fixed angled table and tool changer 5300kg

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
