KUNZMANN WF650 milling machine

Show in original language

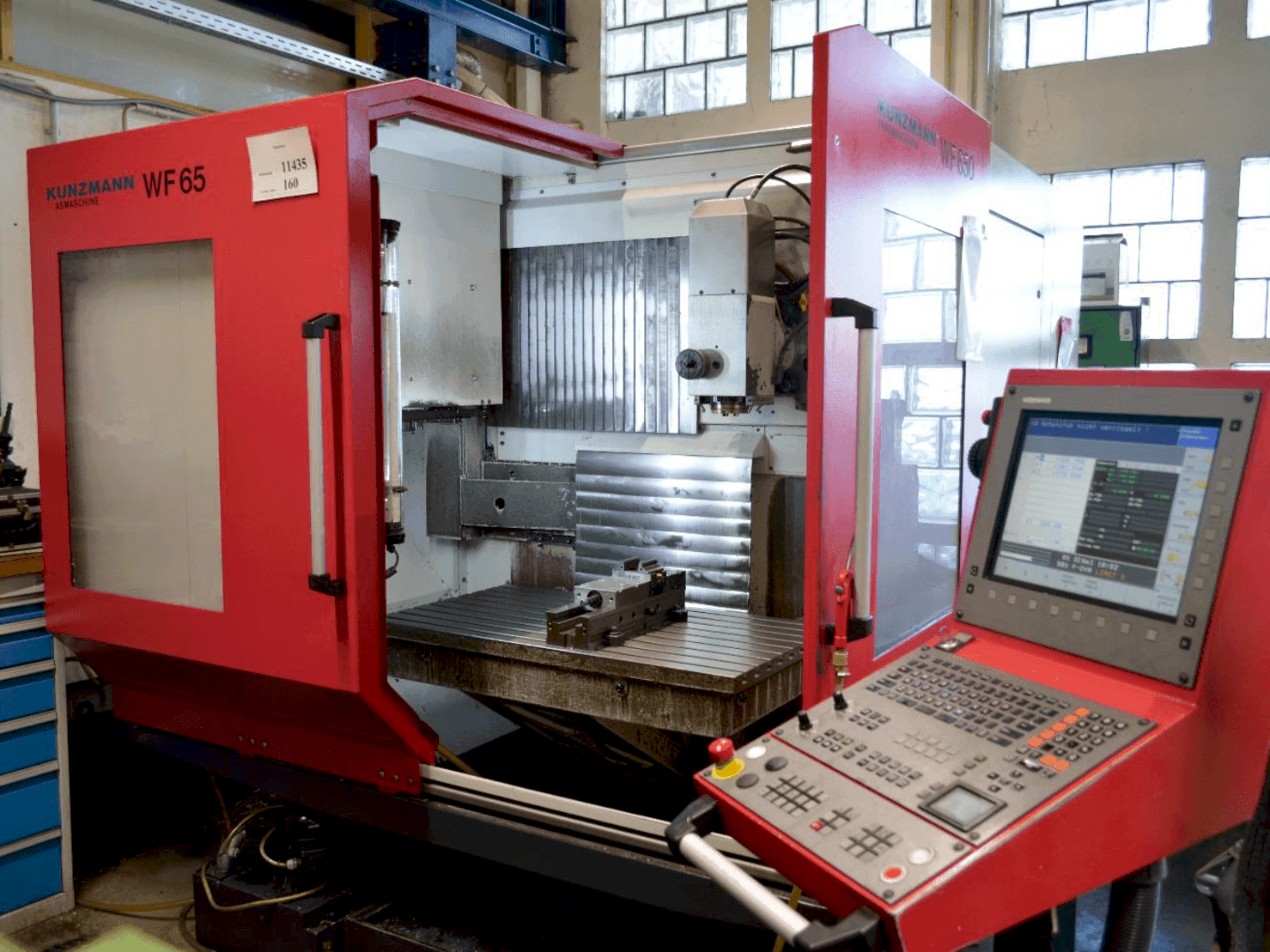

This KUNZMANN WF650 milling machine was made in the year 2010 in Germany and has 22183 hours, of which 6318 are spindle time. It is equipped with a Heidenhain iTNC 530 control unit and has 3 axis. The machine has a spindle speed of 6500 rpm.

Overview

brand: KUNZMANN
year: 2010
MODEL: WF650
production hours: 22183
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - KUNZMANN WF650

General Data

Measurements width: 2700 mm
Measurements depth: 2500 mm
Measurements height: 2300 mm
Machine weight: 6100 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 6500 1/MIN
Spindle motor power: 10 kw
Tool taper: SK 40
Number of axis: 3

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 450 mm

Table

Outer length: 1000 mm
Outer width: 600 mm
Table load: 450 kg

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool holder sk 40: tool changer 20-fold, mechanical tool clamping tightening force
- - Volume coolant tank: 160l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
