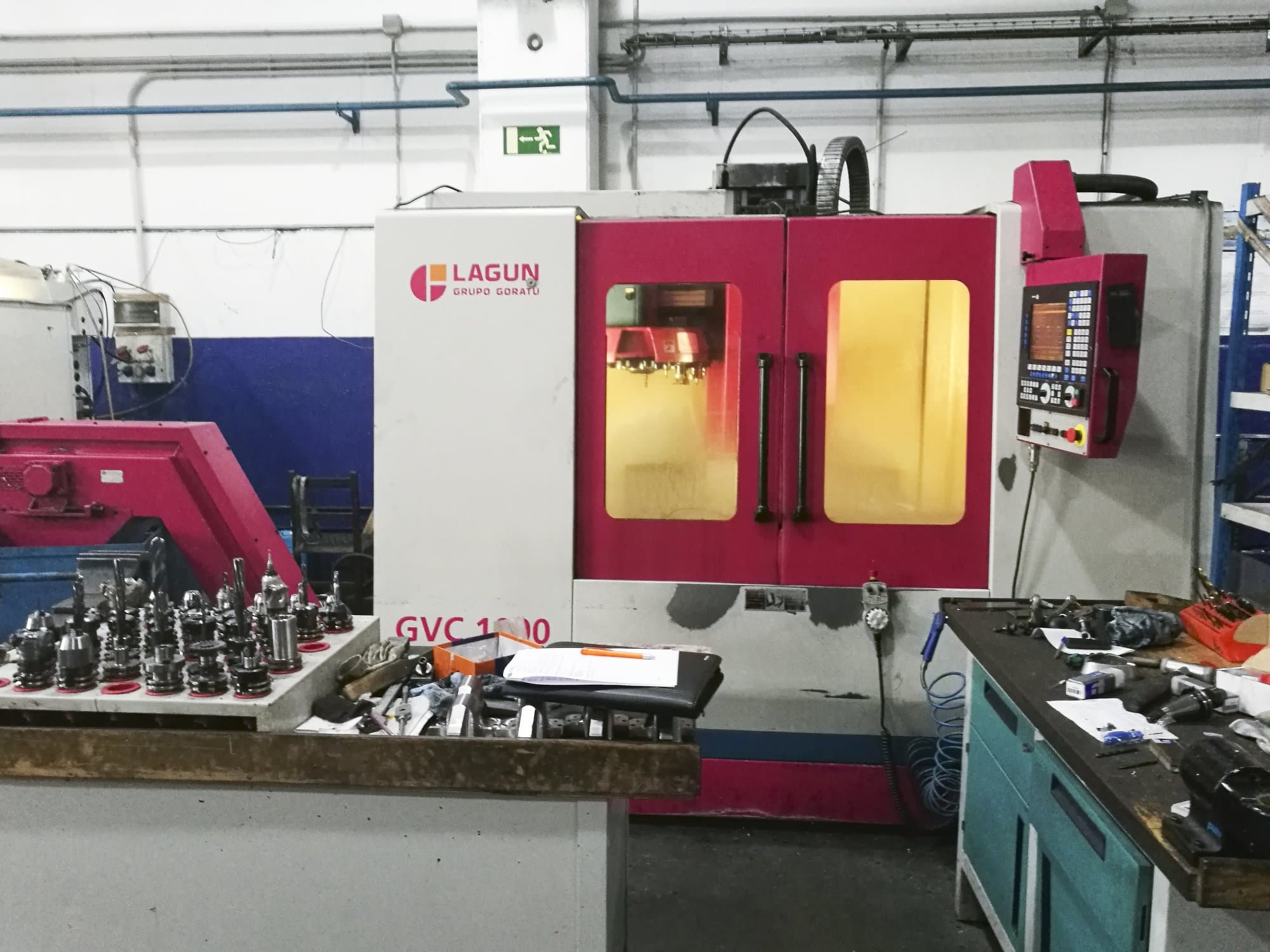

Lagun GVC 1000 Machining Center

Show in original language

This Lagun GVC 1000 Machining Center from 2005 has a production record of 6000 working hours. Operated through a Fagor 8055 Power Control unit (version of 2016, with remote control), the GVC 1000 stands out for its internal cooling system and offers the possibility to connect to Internet via RJ45. Additionally, its fast tool change and prismatic guides makes this robust model an excellent choice amongst Machining Centers. In the past, this machine has mainly produced special pieces for the Machine tool industry. The equipment is still under a maintenance contract, and had a Control unit replacement last year as well as a cone rectification in November 2016.

Overview

brand: LAGUN
year: 2005
MODEL: GVC 1000
production hours: 6000
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FAGOR

Technical Information - LAGUN GVC 1000

General Data

Measurements width: 2600 mm
Measurements depth: 2240 mm
Measurements height: 2370 mm
Machine weight: 6300 kg

Control Unit

Model: 8055 Power
Release: 2016
Remote control: Yes
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 60-6000 1/min
Spindle motor power: 13 kW
Tool taper: BT-40

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 20000 mm/min
Y-AXIS Movement: 500 mm
Y-AXIS Rapid traverse: 20000 mm/min
Z-AXIS Movement: 621 mm
Z-AXIS Rapid traverse: 20000 mm/min

Workpiece

Workpiece weight: 750 kg

Table

Outer length: 1200 mm
Outer width: 500 mm
TSlots size: 20 mm
Number of tslots: 3
Distance between: 135 mm

Tools

Slots in storage: 18
Max weight: 8 kg
Max tool diameter: 130 mm
Max tool length: 300 mm

Media

Air pressure: 6 bar
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
