Leadwell LTC-20DM

Photo Gallery

Leadwell - LTC-20DMPL-TUR-LEA-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Leadwell LTC-20DM Lathe

Show in original language

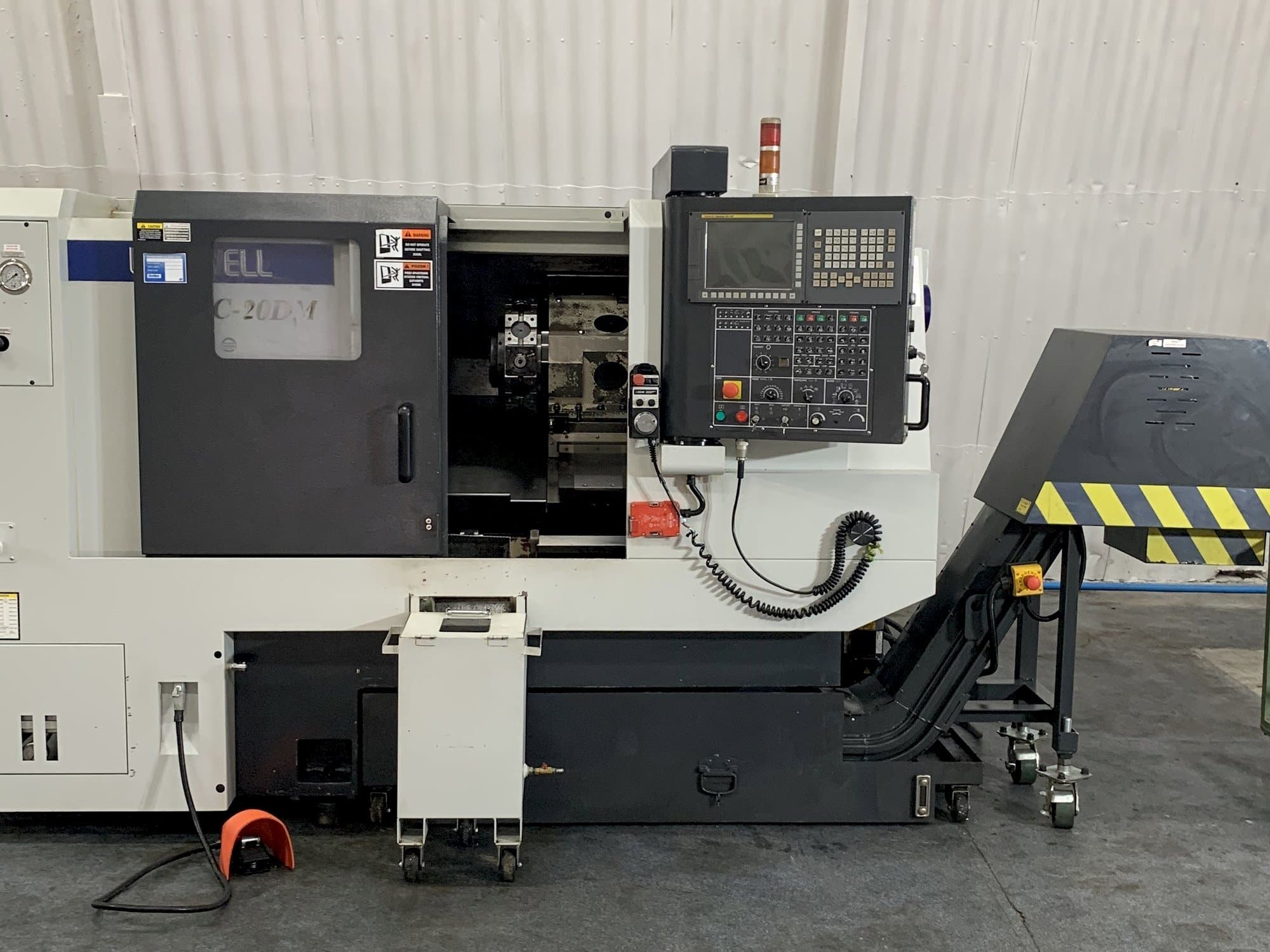

This Leadwell LTC-20DM Lathe was built in the year 2016 in Taiwan. It shows a production history of 3700 hours. The machine is operated through a FANUC Series Oi-TF control unit. It works with a spindle speed up to 4000 rpm and comes with some tool holders, including drived tools. Full documentation available.

Overview

brand: Leadwell
year: 2016
MODEL: LTC-20DM
production hours: 3700
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Leadwell LTC-20DM

General Data

Measurements width: 2638 mm
Measurements depth: 1590 mm
Measurements height: 1600 mm
Machine weight: 3900 KG

Control Unit

Model: Series Oi-TF
Brand: FANUC

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 15 kW

Movement

X-AXIS Movement: 160 + 20 mm
Z-AXIS Movement: 540 mm

Turret

Number of turrets: 12 pcs

Tools

Number of stations: 12 pcs

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 35 kVA
Chip conveyor: Yes

Additional equipment

- Tailstock
- Tool holders, including drived tools
- Detail catcher

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feed rate x/z: 20 m/min
- - Max swing: 540 mm
- - Max turning dia. : 320 mm
- - Max turning length: 430 mm
- - Max bar capacity dia. : 65 mm
- - Turret type: bmt 55 disc
- - Shank height for square tools: 25 mm
- - Shank dia. For boring tools: 40 mm
- - Rotary tool spindle speed range: 6000 rpm
- - Rotary tool motor power: 3. 7 kw
Qualitative Machine Benefits:
- - Full documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
