Leadwell - T-6PL-TUR-LEA-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

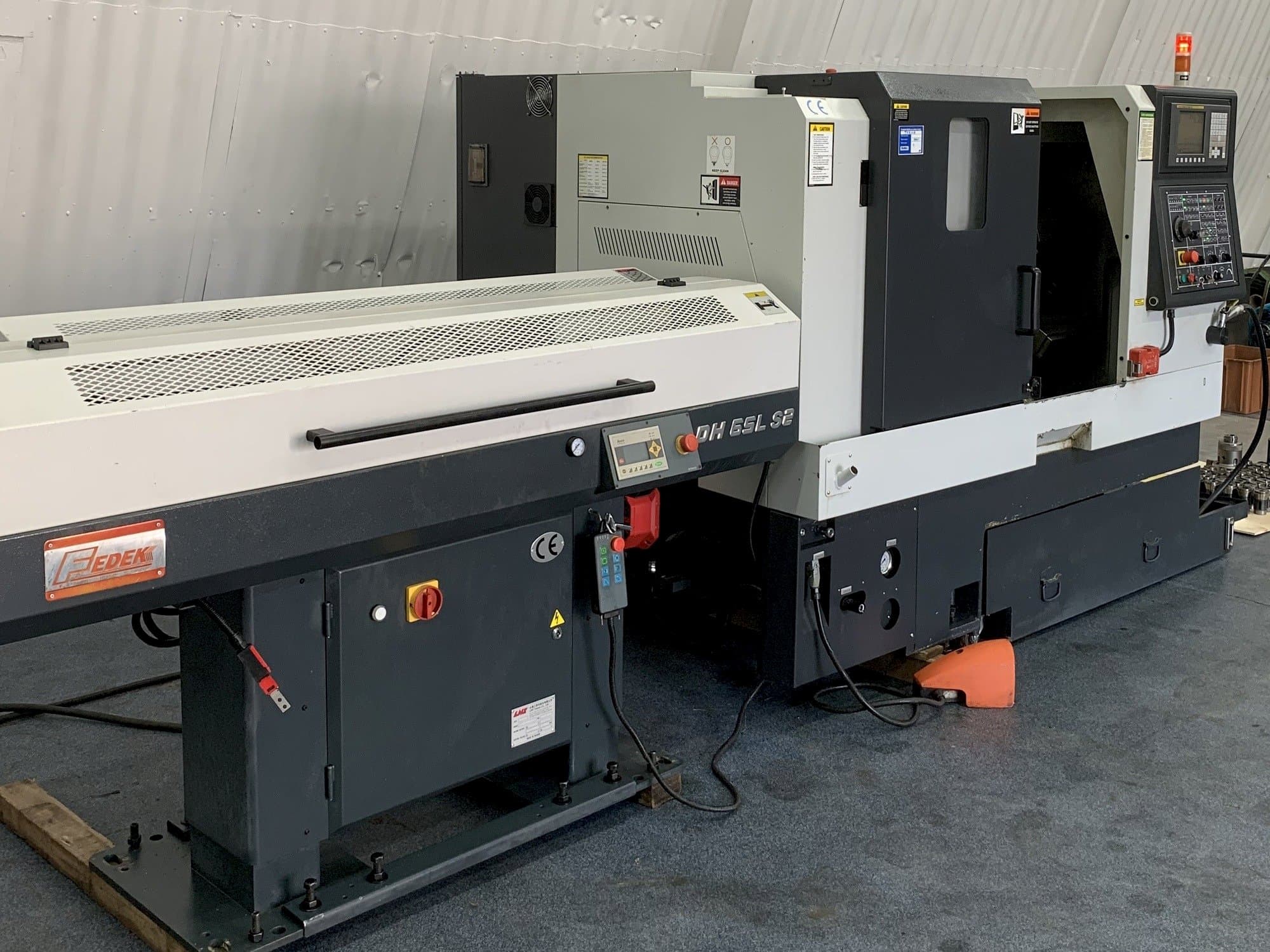

Leadwell T-6 Lathe

Show in original language

This Leadwell T-6 Lathe was built in the year 2015. It has been running 7304 hours, of which 4833 are working hours. It is operated through a FANUC Series Oi-Mate-TD control unit. This 2 axis machine can works with a spindle speed up to 4500 rpm. Includes a bar feeder and accessories.

Overview

brand: Leadwell
year: 2015
MODEL: T-6
production hours: 4833
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Leadwell T-6

General Data

Measurements width: 2896 mm
Measurements depth: 1580 mm
Measurements height: 2340 mm
Machine weight: 3000 KG

Control Unit

Model: Series Oi-Mate-TD
Brand: FANUC

Main drive

Spindle speed range: 4500 1/MIN
Number of axis: 2

Movement

X-AXIS Movement: 105 mm
Z-AXIS Movement: 160 mm

Media

Main electronic connection: 400V / 50Hz
Power consumption: 25 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max swing: 450 mm
- - Swing over cross slide: 290 mm
- - Max turning diameter: 210mm
- - Max turning length: 420 mm
- - Bar capacity: 52mm
- - Automatic tool changer (atc): 12 pcs
- - Included bar feeder
- - Included accessories
Qualitative Machine Benefits:
- - Very good working condition
- - Ready for tests
- - Full documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
