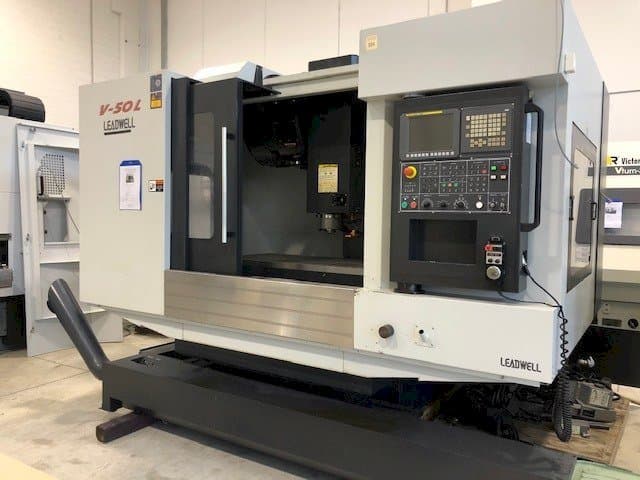

LEADWELL V50L Vertical Machining center

Show in original language

This LEADWELL V50L Vertical Machining center was manufactured in the year 2013. It is equipped with a Fanuc 0 i MD control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.

Overview

brand: Leadwell
year: 2013
MODEL: V50L
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Leadwell V50L

General Data

Machine weight: 7000 kg

Control Unit

Model: 0 i MD
Brand: FANUC

Main drive

Spindle speed range: 10000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 635 mm
Z-AXIS Movement: 610 mm

Table

Outer length: 1420 mm
Outer width: 610 mm.
Table load: 1000 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Feeds: fast x / y / z axes 36/36/36 m / min
- - Distance spindle nose - table min / max 100/710 mm
- - Distance spindle - column 630 mm
- - Spindle connection iso 40
- - Spindle motor power 18. 5 / 22 kw
- - Tool magazine 24 pos.
- - Max tool weight kg. 7
- - Max tool size diam / length. Mm. 80 adj. / 250
- - Refrigeration a. P. Through 20 bar spindle - chip conveyor and remote electronic handwheel.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
