➤ Used Maho MH 600 E2 Milling Machine

Show in original language

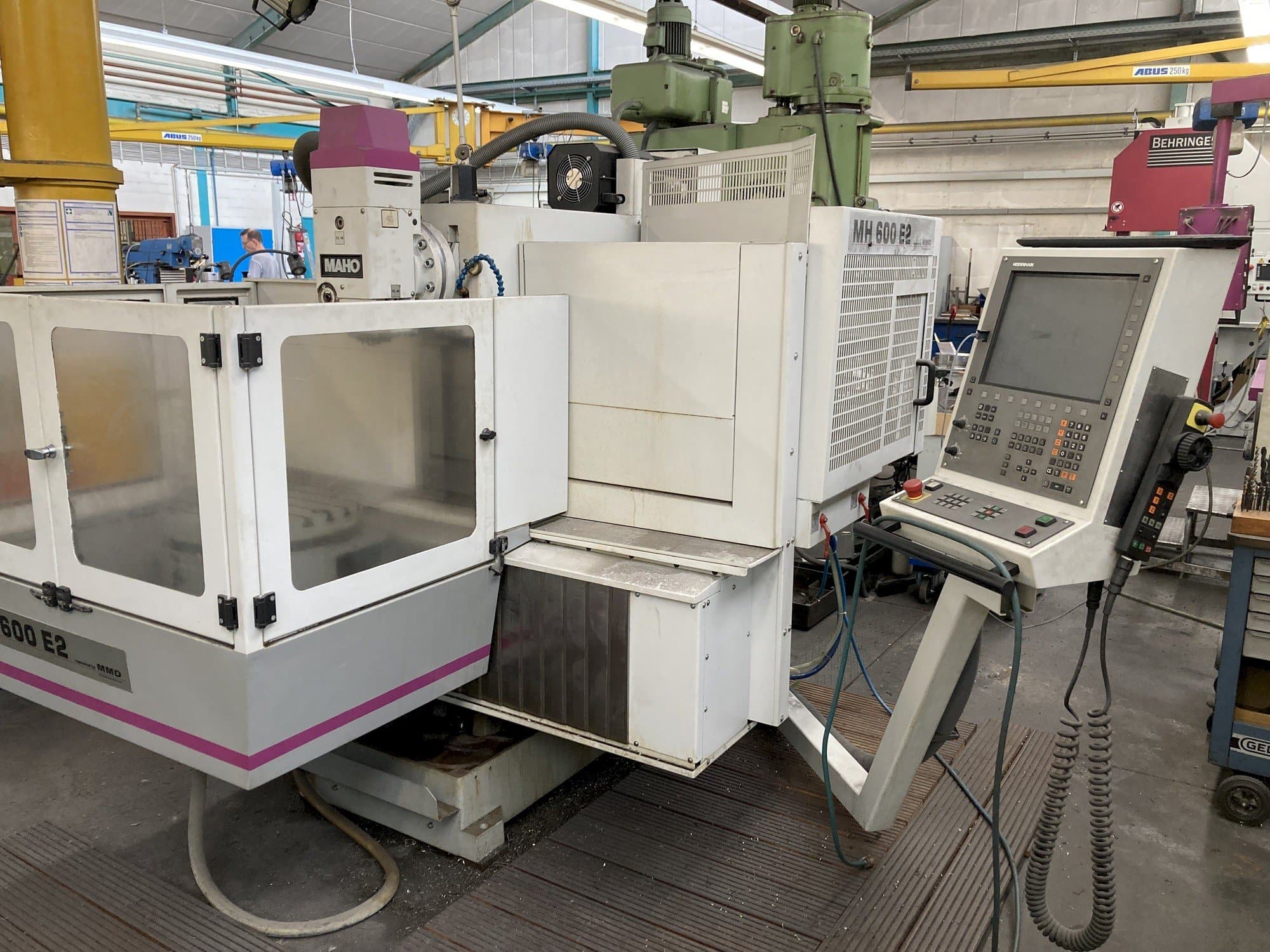

This MAHO MH 600 E2 Milling machine was manufactured in the year 1991 and has 4988 production hours, of which 1167 are spindle hours. It is equipped with an HEIDENHAIN TNC 320 control unit. The machine has a spindle speed of 20-4000 rpm.

Overview

brand: MAHO
year: 1991
MODEL: MH 600 E2
production hours: 4988
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MAHO MH 600 E2

Control Unit

Model: TNC 320
Brand: HEIDENHAIN

Main drive

Spindle speed range: 20-4000 1/MIN

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 450 mm

Workpiece

Workpiece weight: 6 kg

Additional equipment

- A vertical spindle incl. 20 tools and a box with tightening bolts for tool holders are included
- tightening bolts for tool holders are included.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rotary table Ø 500
- - Electronic handwheel
- - Clamping type of the tool clamp: 12 kn
- - A vertical spindle incl. 20 tools and a box with tightening bolts for tool holders are included.
- - Tightening bolts for tool holders are included.
- - Hours: machine hours after retrofitting has run in 1-shift operation machine was measured / protocol available
Qualitative Machine Benefits:
- - All operating instructions and control manual available
- - Electrics and control new 2015
- - The machine has been completely overhauled
- - It has a new control cabinet and a new control system. The scales have also been renewed.
- - The scales have also been renewed
- - Tool changer defective: change manually by hand.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
