MAHO MH 600 E2

Photo Gallery

MAHO - MH 600 E2HR-MIL-MAH-1989-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Maho MH 600 E2 Milling Machine - Used

Show in original language

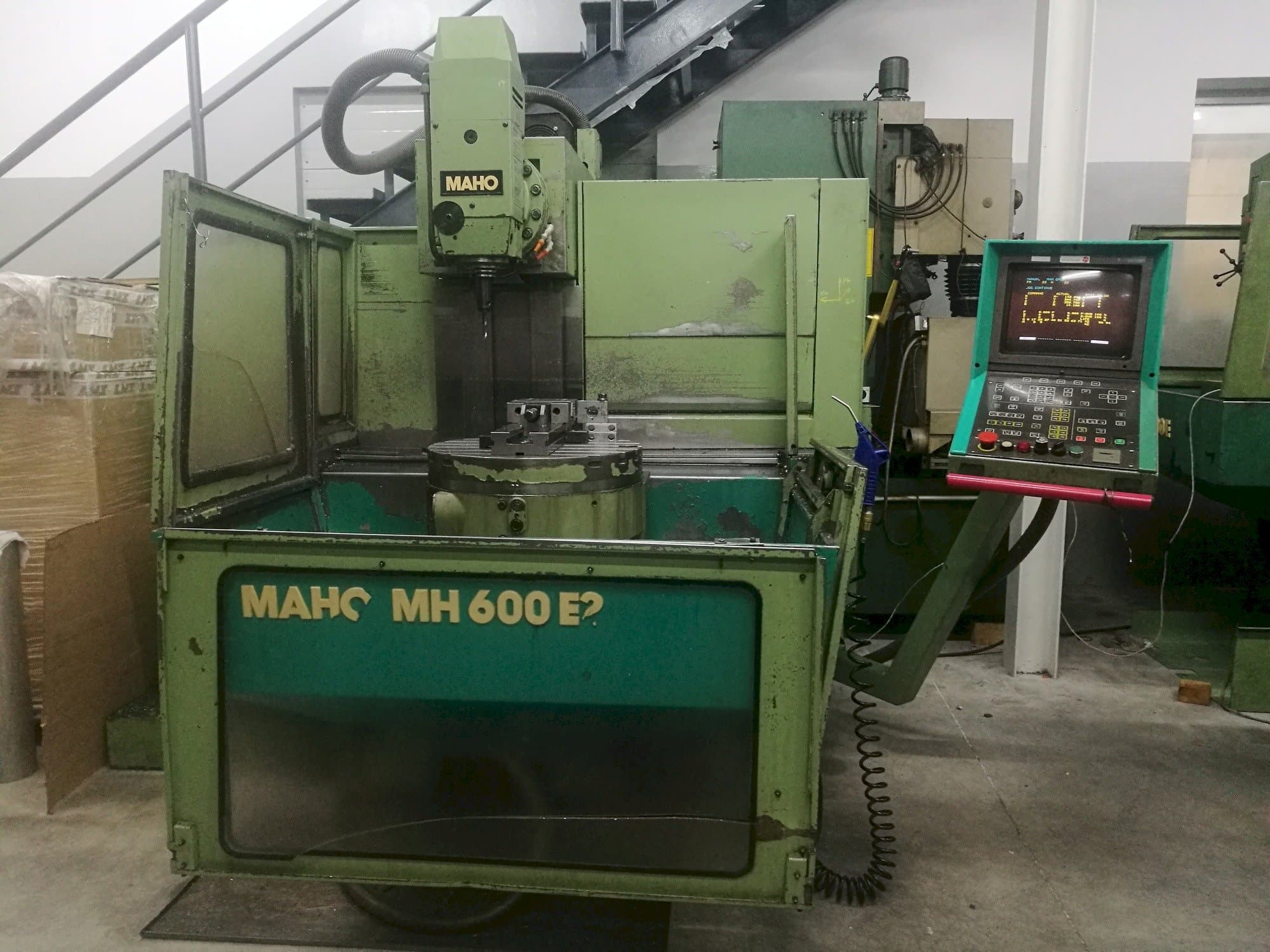

This Maho MH 600 E2 Milling Machine was produced in 1989 in Germany and has been working for 40000 hours. Operated through a Philips 432 Control unit, this machine has a spindle speed range up to 4000 rpm. It incorporates a rotary table with a diameter of 500 mm with 360° of rotation. It stands out for being able to work both in vertical and horizontal.

Overview

brand: MAHO
year: 1989
MODEL: MH 600 E2
production hours: 40000
application type: Milling
Location: Croatia
machine type: Universal Machining Centre

Technical Information - MAHO MH 600 E2

General Data

Measurements width: 2400 mm
Measurements depth: 2500 mm
Measurements height: 2100 mm
Machine weight: 3000 kg

Control Unit

Model: 432
CNC main language: English

Main drive

Number of spindles: 1
Spindle speed range: 4000 rpm 1/MIN

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 400 mm
B-AXIS Movement: 360°

Workpiece

Workpiece weight: 300 kg

Table

Number of tslots: 7
Distance between: 65 mm

Tools

Slots in storage: 20
Max weight: 8 kg
Max tool length: 250 mm
Type of tool holder: SK40

Media

Main electronic connection: 380V / 50Hz
Power consumption: 16 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
