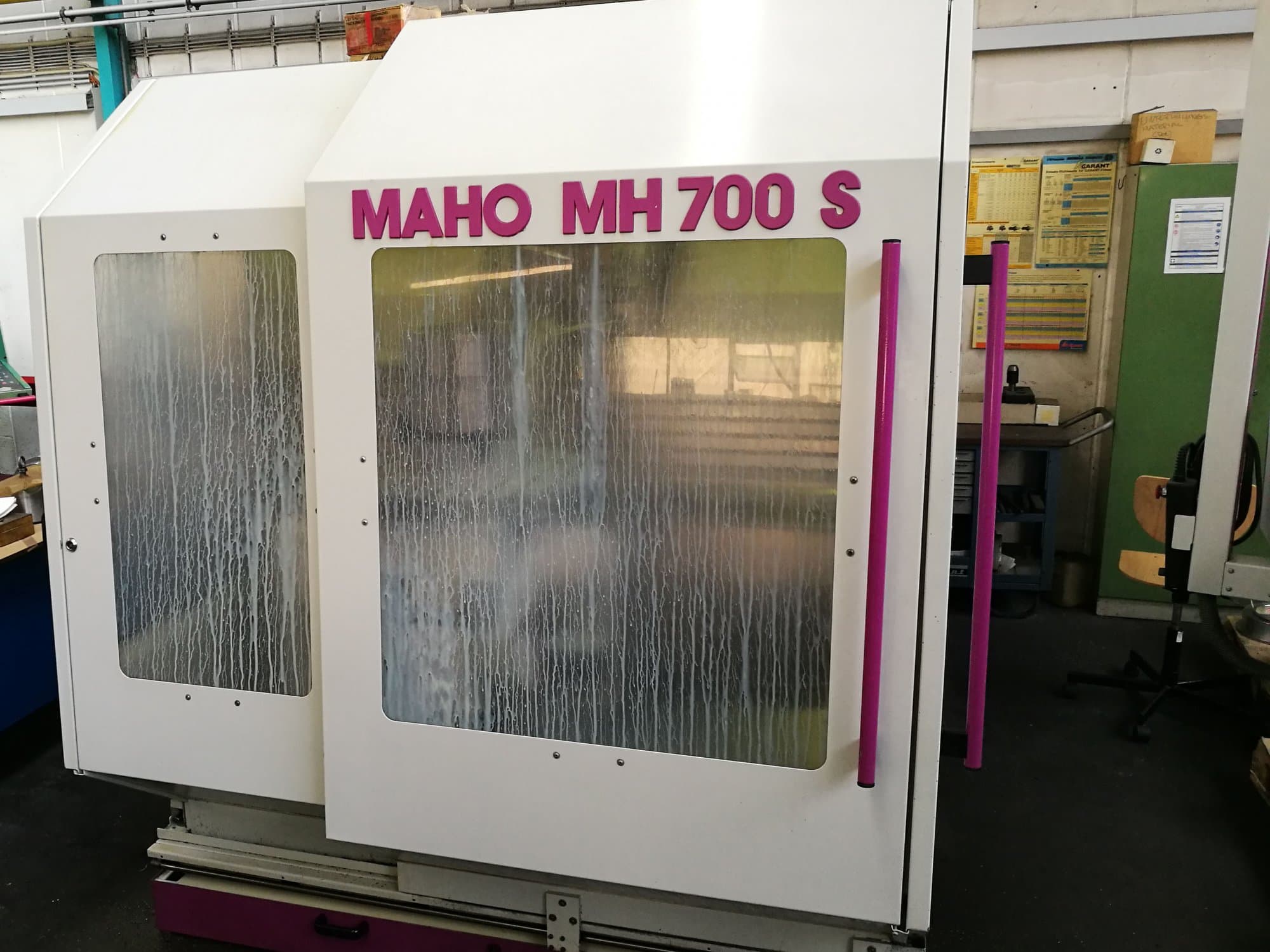

Maho MH 700 S Universal Machining Center

Show in original language

This MAHO MH 700 S Universal Machining Center from 1989 was manufactured in Germany and has been operative for 18042 working hours. Equipped with a MAHO CNC 532 Control unit, this oil free machine has exclusively worked with steel for sliding contact bearing production during the past. This machine was fully retrofitted in 2005.

Overview

brand: MAHO
year: 1989
MODEL: MH 700 S
production hours: 18042
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold

Technical Information - MAHO MH 700 S

General Data

Measurements width: 3250 mm
Measurements depth: 3120 mm
Measurements height: 2290 mm
Machine weight: 6600 kg

Control Unit

CNC main language: German
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 20-6300 1/min

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 600 mm

Table

Outer length: 1100 mm
Outer width: 600 mm

Media

Main electronic connection: 380V
Power consumption: 30 kVA
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
