Maier - MLK 32DRO-TUR-MAI-2007-00001

Name: Maier MLK 32D
Brand: Maier
SKU: RO-TUR-MAI-2007-00001
Price: 3351250 INR
Availability: InStock

Rs. 3,351,250

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Maier MLK 32D For Sale | gindumac.com

Show in original language

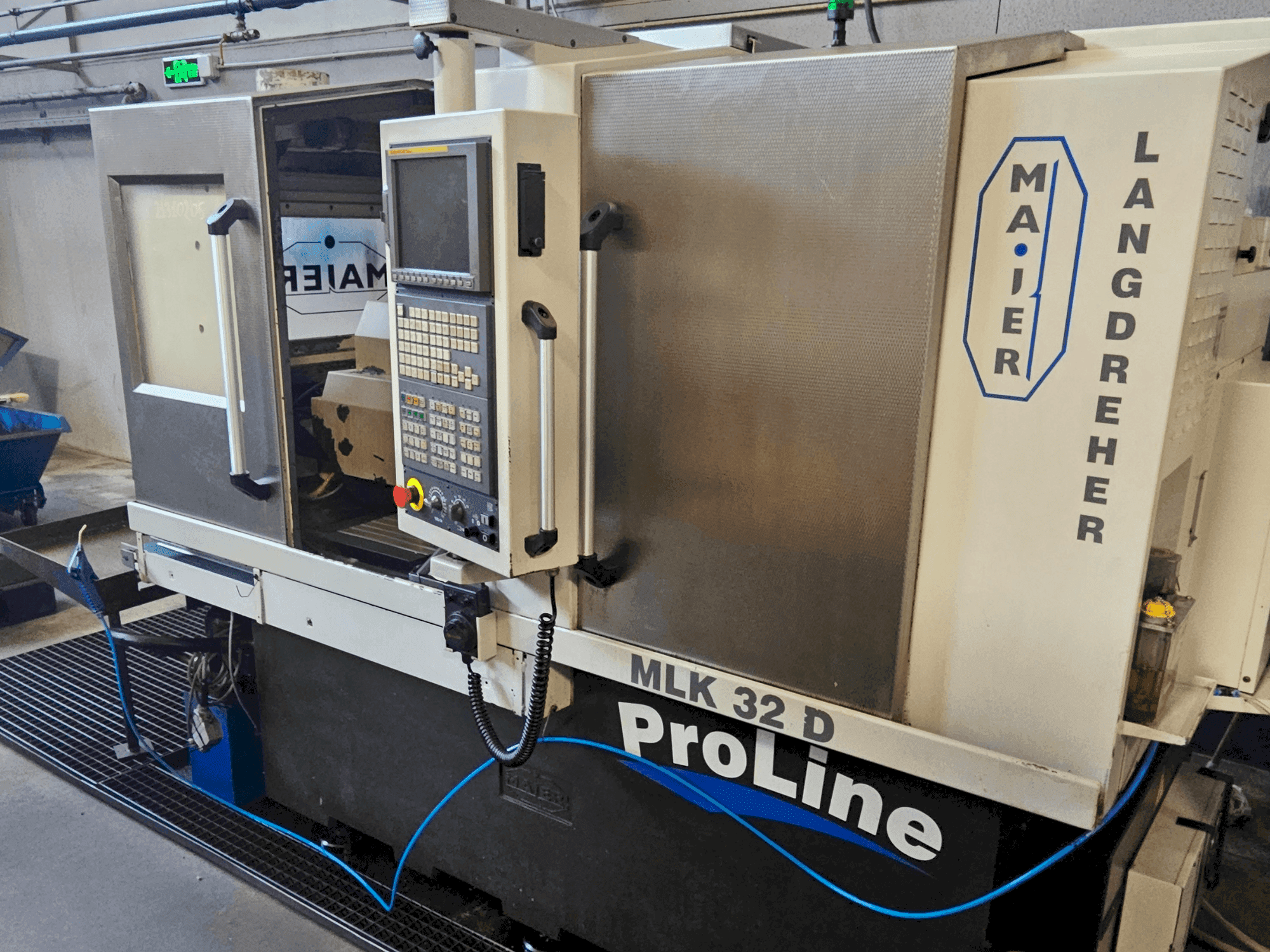

This Maier MLK 32D was manufactured in 2007. It features a maximum bar diameter of Ø 32 mm, machining length per clamping of 310 mm, and a sub-spindle re-machining length of 200 mm. The machine includes a main spindle with a max speed of 8,000 rpm and a power of 5.5 kW. It also has a tooling system with up to 23 tool stations and approximately 14 live tools. Contact us for more information about this machine.

Overview

brand: Maier
year: 2007
MODEL: MLK 32D
production hours: 0
application type: Turning
Location: Romania
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Maier MLK 32D

Control Unit

Brand: FANUC
Model: 16i-TB

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 5.5 kW

Tools

Number of stations: 23

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max bar diameter: 32 mm
- - Max machining length per clamping: 310 mm
- - Sub-spindle re-machining length: 200 mm
- - Axes configuration: up to 9 axes (x1, z1, y1, c1, x2, z2, c2, x3, z3) // c-axis indexing resolution: 0. 001°
- - Coolant delivery through tools and external nozzles
- - Optional high-pressure system (up to 80 bar)
- - Voltage: 220 v ac / 50 hz
- - Control voltage: 24 v dc
- - Total installed power: 16 kw
- - Max current: 60 a

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
