➤ Used Maier ML 32E For Sale | gindumac.com

Show in original language

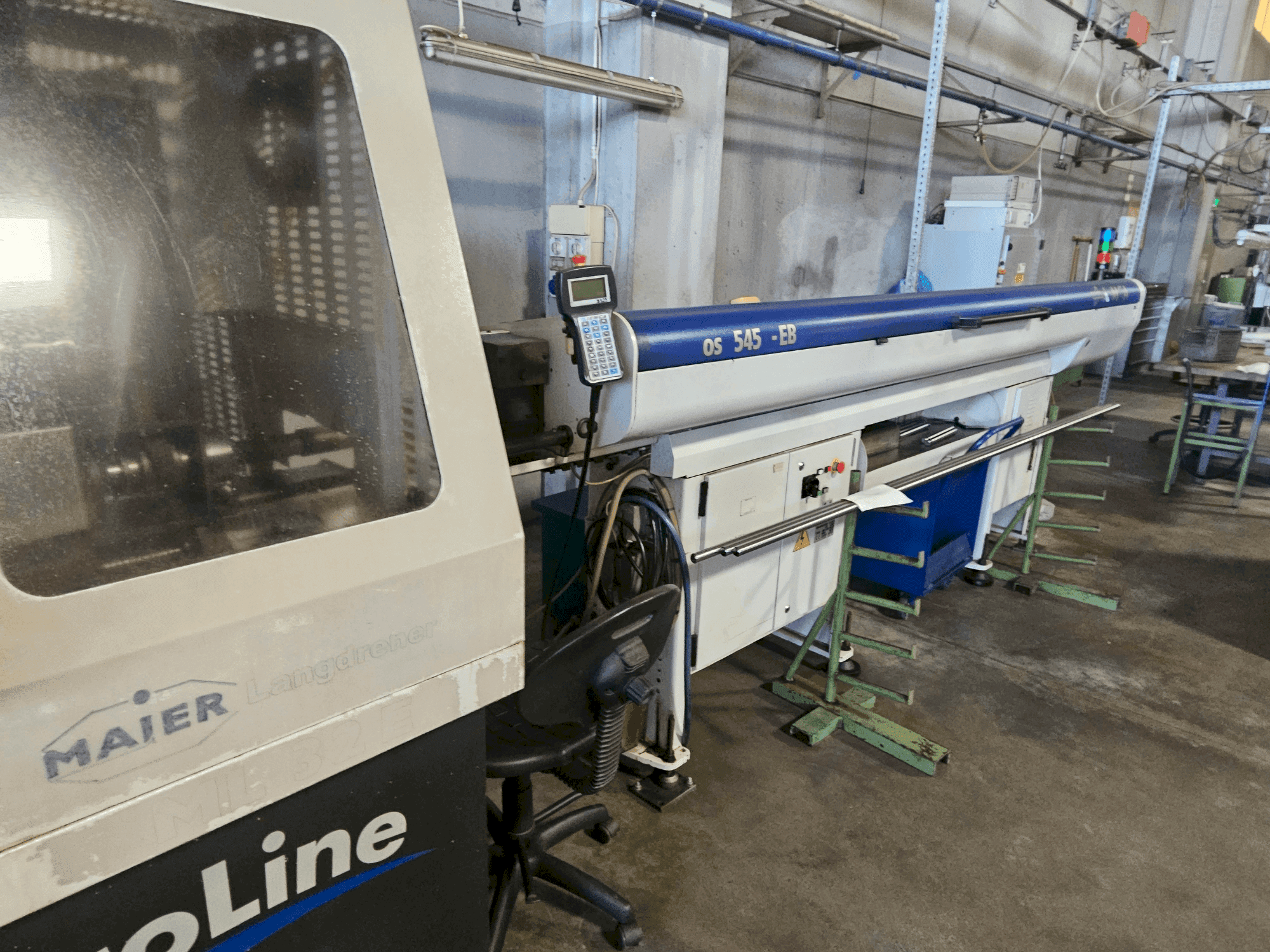

This Maier ML 32E was manufactured in 2003. It features a maximum bar diameter of 32 mm and a machining length per cycle of approximately 310 mm. The machine includes a high-precision indexing C-axis with a resolution of 0.001° and up to 23 tool stations, including 14 live tools. The CNC control unit is a GE Fanuc Series 16i-T with a color LCD and full QWERTY keyboard. Contact us for more information about this machine.

Overview

brand: Maier
year: 2003
MODEL: ML 32E
application type: Turning
Location: Romania
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Maier ML 32E

Control Unit

Brand: FANUC
Model: 16i-T

Main drive

Number of spindles: 2
Spindle speed range: 8000 1/MIN
Spindle motor power: 5.5 kW

Tools

Type of tool holder: ER16 or ER20 collets

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cnc axes: typically 9 axes (x1, z1, y1, c1; x2, z2, c2; optional x3, z3)
- - C-axis capability: high precision indexing (resolution: 0. 001°)
- - Max. Bar diameter: Ø 32 mm
- - Max. Machining length per cycle: approx. 310 mm
- - Sub-spindle re-machining length (z2 axis): up to 200 mm
- - Total tool stations: up to 23
- - Tooling configuration: front, side, and backworking
- - Driven tools available on both spindles
- - Sub-spindle speed: up to 8000 rpm
- - Sub-spindle power: approx. 3. 7–5. 5 kw

Extra information

- Control Unit Model: GE Fanuc Series 16i-T Display: Color LCD Inputs: Full QWERTY keyboard layout

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
