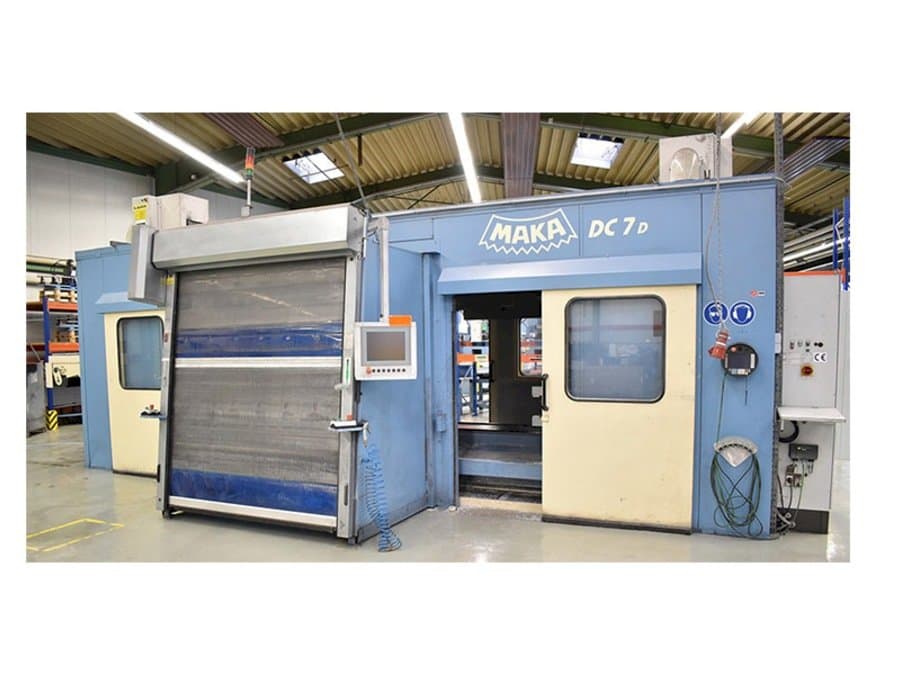

MAKA DC 7 D Universal Machining Center

Show in original language

This MAKA DC 7 D Universal Machining Center was built in Germany in the year 2012. It has a production record of 29386 working hours. This 5 axis machine can works with a range of movements of 1200mm, 1000mm, 575mm, 196mm, and 540mm (X-Axis, Y-Axis, Z-Axis, A-Axis, and C-Axis respectively).

Overview

brand: MAKA
year: 2012
MODEL: DC 7 D
production hours: 29386
application type: Milling
Location: Poland
machine type: Universal Machining Centre
availability: Sold

Technical Information - MAKA DC 7 D

General Data

Measurements width: 6000 mm
Measurements depth: 3200 mm
Measurements height: 3350 mm
Machine weight: 7500 kg

Main drive

Number of axis: 5

Movement

X-AXIS Movement: 1200 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 575 mm
A-AXIS Movement: 196 mm
C-AXIS Movement: 540 mm

Table

Outer length: 1200 mm

Media

Main electronic connection: 400V / 50HZ
Power consumption: 40 kW
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - This machine also has an interesting feature of a rotary table. During machining, you can mount a second part and immediately start working on it without wasting time after finishing the first one.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
