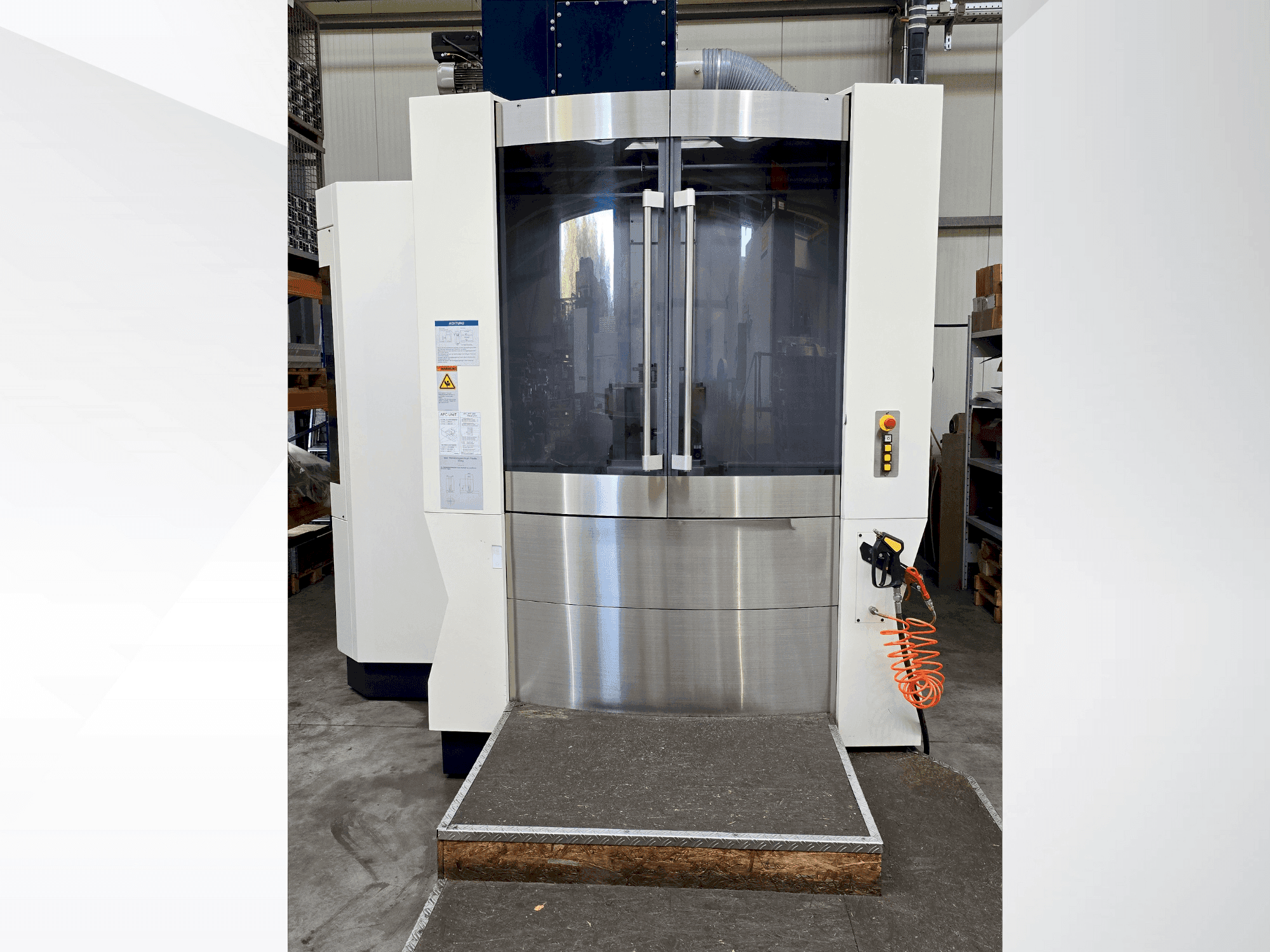

Makino A61nx

Photo Gallery

Makino - A61nxDE-MIL-MAK-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Makino A61nx For Sale | gindumac.com

Show in original language

This 4-axis Makino A61nx horizontal machining center was manufactured in 2015. It features a robust spindle with speeds up to 14,000 min-¹, a torque of 240 Nm, and a power of 30 kW. The machine includes a high-capacity tool magazine with storage for 60 tools and rapid tool change times. Ideal for heavy-duty machining with a pallet size of 500 × 500 mm and maximum workpiece weight of 700 kg. For more information about this horizontal machining center, please reach out to us.

Overview

brand: Makino
year: 2015
MODEL: A61nx
application type: Milling
Location: Switzerland
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Makino A61nx

General Data

Measurements width: 2910 mm
Measurements depth: 4888 mm
Measurements height: 2981 mm
Machine weight: 12000 kg

Control Unit

Brand: FANUC
Model: 310iS-A

Main drive

Number of spindles: 1
Spindle speed range: 14000 1/MIN
Spindle motor power: 22 kW
Tool taper: HSK-A 63
Number of axis: 4

Movement

X-AXIS Movement: 730 mm
Y-AXIS Movement: 730 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece weight: 500 kg

Tools

Max weight: 12 kg
Max tool diameter: 70 mm
Max tool length: 510 mm

Media

Chip conveyor: Yes
Internal cooling: Yes
Cooling pressure: 30 bar

Additional Information

Additional equipment

Direct path measuring systems in XYZ-axis
Core cooling of the ball screw spindles and bearings with circulating oil // Jacket cooling on spindle nose and motor
High-speed blanking function
Linear guides in heavy-duty design: 55 mm
https://gindumacgmbh.zendesk.com/sales/deals/176297652#:~:text=Tool%20magazine%3A%20Storage%20capacity%2060%20tools
Renishaw OMP60 touch probe // Renishaw Inspection Plus
Automatic override of the corners: G62
Restart after programme interruption
User macro with 600 variables
Flow monitor for coolant through the spindle

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
