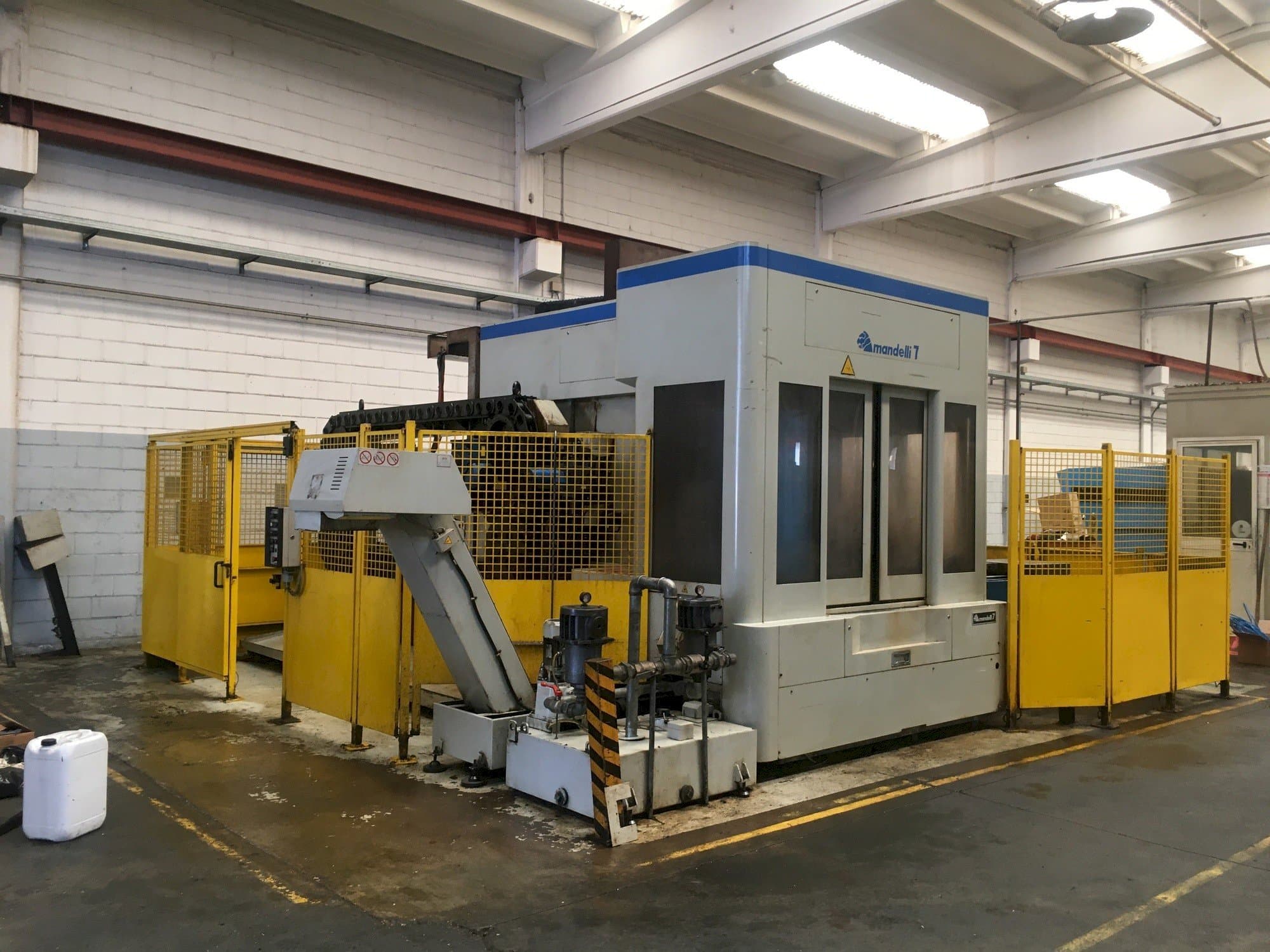

Mandelli Type 7 Horizontal Machine Center

Show in original language

This Mandelli Type 7 Horizontal Machine Center was manufactured in the year 1995. This 3 axis machine has a spindle speed up to 4000 rpm and an acceleration of 1500 mm/s2.

Overview

brand: Mandelli
year: 1995
MODEL: Type 7
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre

Technical Information - Mandelli Type 7

Main drive

Spindle speed range: 4000 1/MIN
Number of axis: 3

Additional Information

Machine Benefits

Qualitative Machine Benefits

Programmable speed: 16/4000 rpm
Din 50
Pallet 630x630m

Technical Machine Benefits

X axis: 1000mm longitudinal
Y axis: 80mm vertical
Z axis: transversal
Max diamter piece: 1100mm
Axis fast travels: 18,000 mm/min
Advance while working 10-18,000 mm/min
Accelleration: 1500 mm/s2
Motor power: 5,7kw
Milling head u25/4000
Power of the head: 25kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
