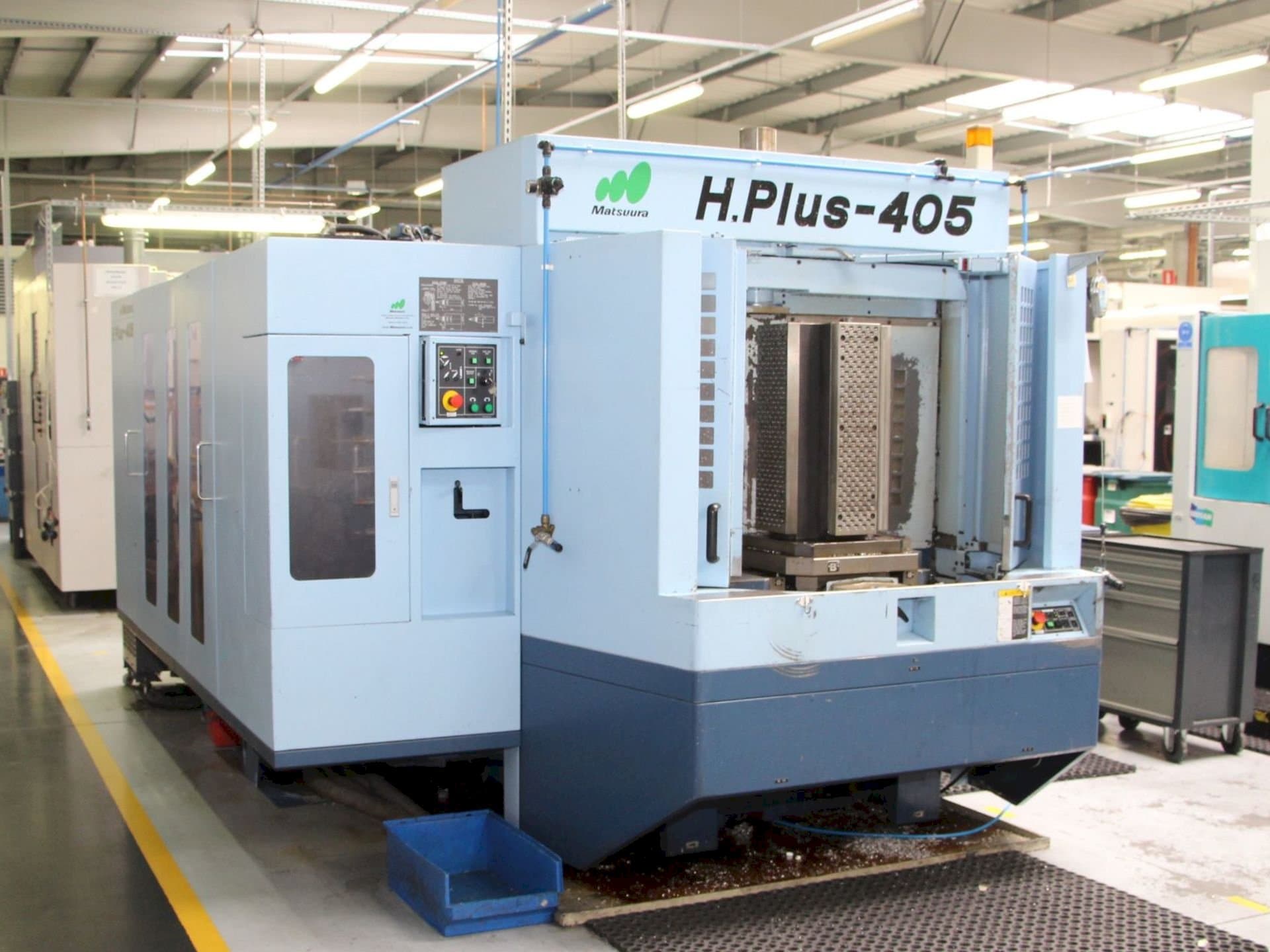

Front view of Matsuura H-Plus 405 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Matsuura H-Plus 405

Photo Gallery

Matsuura - H-Plus 405TR-MIL-MAT-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Matsuura H-Plus 405 Horizontal Machining centers

Show in original language

This Matsuura H-Plus 405 Horizontal Machining centers was built in Japan in the year 2007. It shows 15348 cutting hours. It is equipped with a FANUC G-Tech 30l control unit. This 4 axis machine can work with a spindle speed range between 40 ~ 12000 rpm. It comes with 81 tools.

Overview

brand: Matsuura
year: 2007
MODEL: H-Plus 405
production hours: 15348
application type: Milling
Location: Turkey
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Matsuura H-Plus 405

Control Unit

Model: G-Tech 30l
Brand: FANUC

Main drive

Spindle speed range: 40 ~ 12000 1/MIN
Spindle motor power: 15 / 22 kW
Tool taper: BT40
Number of axis: 4

Movement

X-AXIS Movement: 660 mm
X-AXIS Rapid traverse: 50000 mm/min
Y-AXIS Movement: 660 mm
Y-AXIS Rapid traverse: 50000 mm/min
Z-AXIS Movement: 660 mm
Z-AXIS Rapid traverse: 50000 mm/min
B-AXIS Movement: 360 deg

Tools

Number of index: 81
Max tool diameter: Ø90 mm
Type of tool holder: Shank JIS B 6339 40T

Media

Main electronic connection: 415 V / 50 Hz
Power consumption: 52 kVa

Additional Information

Machine Benefits

Qualitative Machine Benefits

Renishaw tool setter
Renishaw part setter

Technical Machine Benefits

Pallet working surface: 500 x 500 mm
Pallet loading capacity: 400 kg
Pallet max. Work size: ø 700 x h 850 mm
Motor torque: 187. 3 / 1120 n·m/min-1
Spindle motor power (contin. / short) kw (hp) 15 / 22 spindle max.
Rapid feed acceleration: 0. 98 / 1. 21 / 0. 91 g
Automatic tool changer
Type of retention knob jis b 6339 40p
Drum magazine: fixed address
Max. Tool diameter mm (in. ) Ø150 (5. 90) : with conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
