Mazak FF510

Photo Gallery

Mazak - FF510PL-MIL-MAZ-1998-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

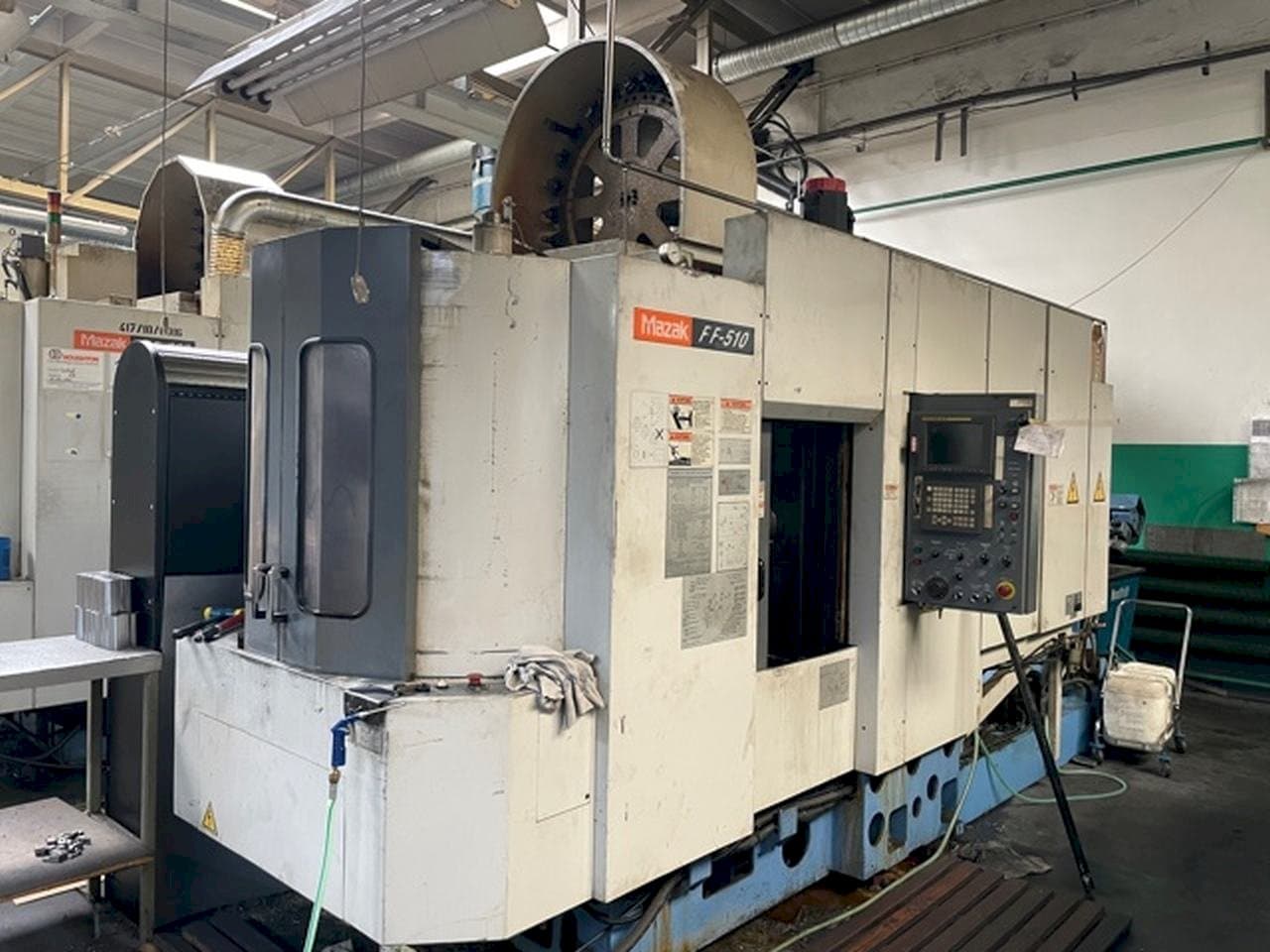

This Mazak FF510 Horizontal Machining Center was built in 1998 in Japan. It is operated through a FANUC 18i-M control unit. This 3 axis machine can work with a spindle speed up to 15000 rpm and a table dimension 400 x 400 mm. It is in good working condition and ready for tests.

Overview

brand: Mazak
year: 1998
MODEL: FF510
production hours: 0
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Mazak FF510

General Data

Measurements width: 5600 MM
Measurements depth: 2400 MM
Measurements height: 3300 mm
Machine weight: 7600 kg

Control Unit

Model: 18i-M
Brand: FANUC

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 10 kW
Tool taper: SK40
Number of axis: 3

Movement

X-AXIS Movement: 510 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 400 MM
Outer width: 400 mm
Table load: 250 kg

Turret

Number of tool slots: 24 pcs

Media

Main electronic connection: 200/220 V 50/60 HZ
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Also atc tool changer 24 pcs.
- - Pallet changer: 2 pallets
Qualitative Machine Benefits:
- - Machine in good working condition
- - Ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
