Mazak FJV-35/60

Photo Gallery

Mazak - FJV-35/60ES-MIL-MAZ-2003-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

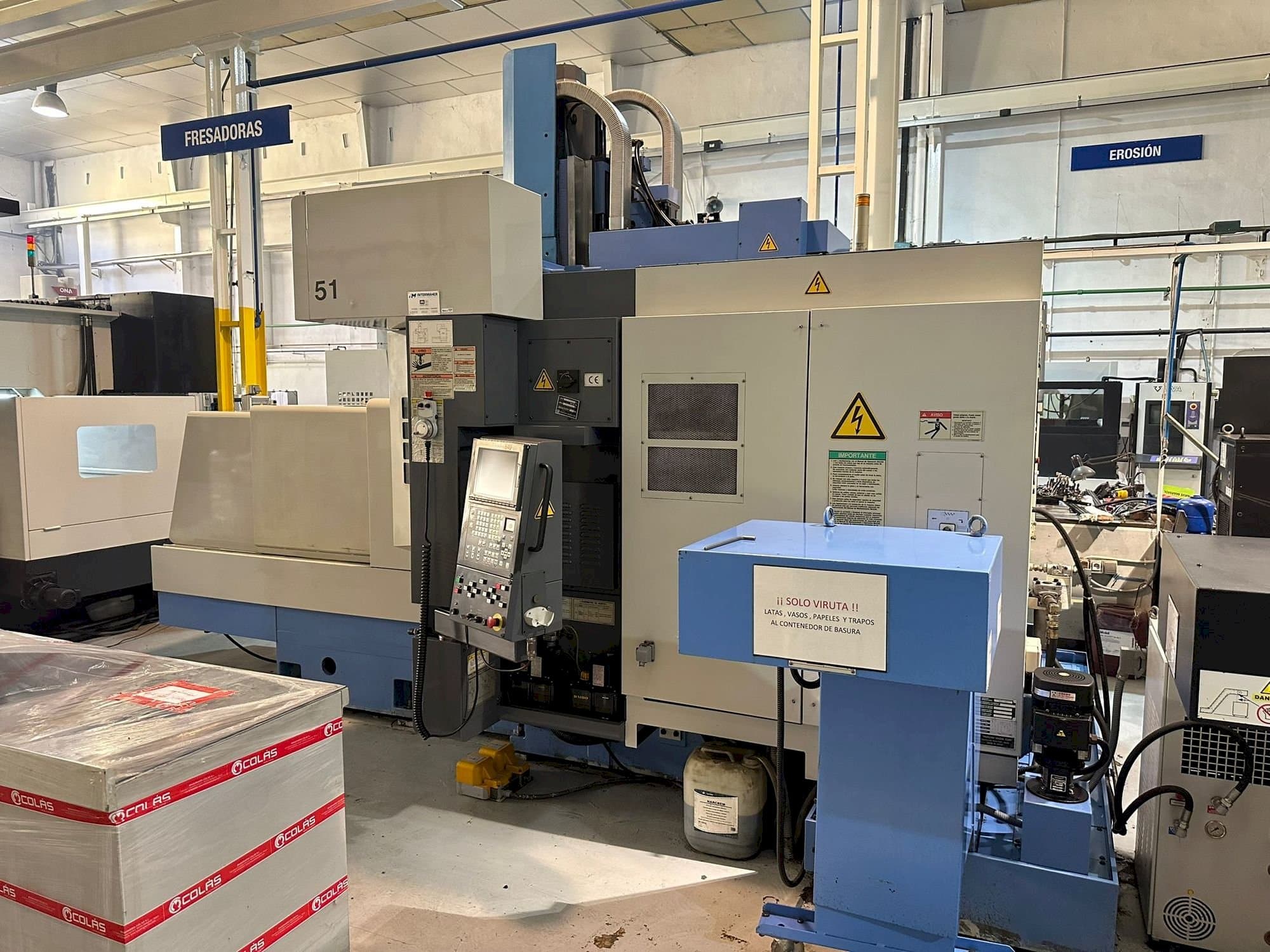

MAZAK FJV-35/60 Vertical Machining center

Show in original language

This MAZAK FJV-35/60 Vertical Machining center was manufactured in the year 2003. It is equipped with a MAZATROL PC-FUSION-CNC 640 M control unit. The machine has a spindle speed of 40-10000 rpm.

Overview

brand: Mazak
year: 2003
MODEL: FJV-35/60
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: MAZATROL

Technical Information - Mazak FJV-35/60

General Data

Measurements width: 62800 mm
Measurements depth: 3274 mm
Measurements height: 3510 mm
Machine weight: 14500 kg

Control Unit

Model: PC-FUSION-CNC 640 M
Brand: MAZATROL

Main drive

Spindle speed range: 40-10000 1/MIN
Spindle motor power: 59,40 kW

Movement

X-AXIS Movement: 2000mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 585 mm

Table

Outer length: 2240 mm
Outer width: 750 mm
Height adjustment: 830 mm
Number of tslots: 5x18 mm
Distance between: 150 mm
Max distance between vertical spindle and table: 880 mm
Table load: 3000 kg

Tools

Max weight: 20 kg
Max tool diameter: 210 mm
Max tool length: 380 mm
Type of tool holder: CAT-50

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
