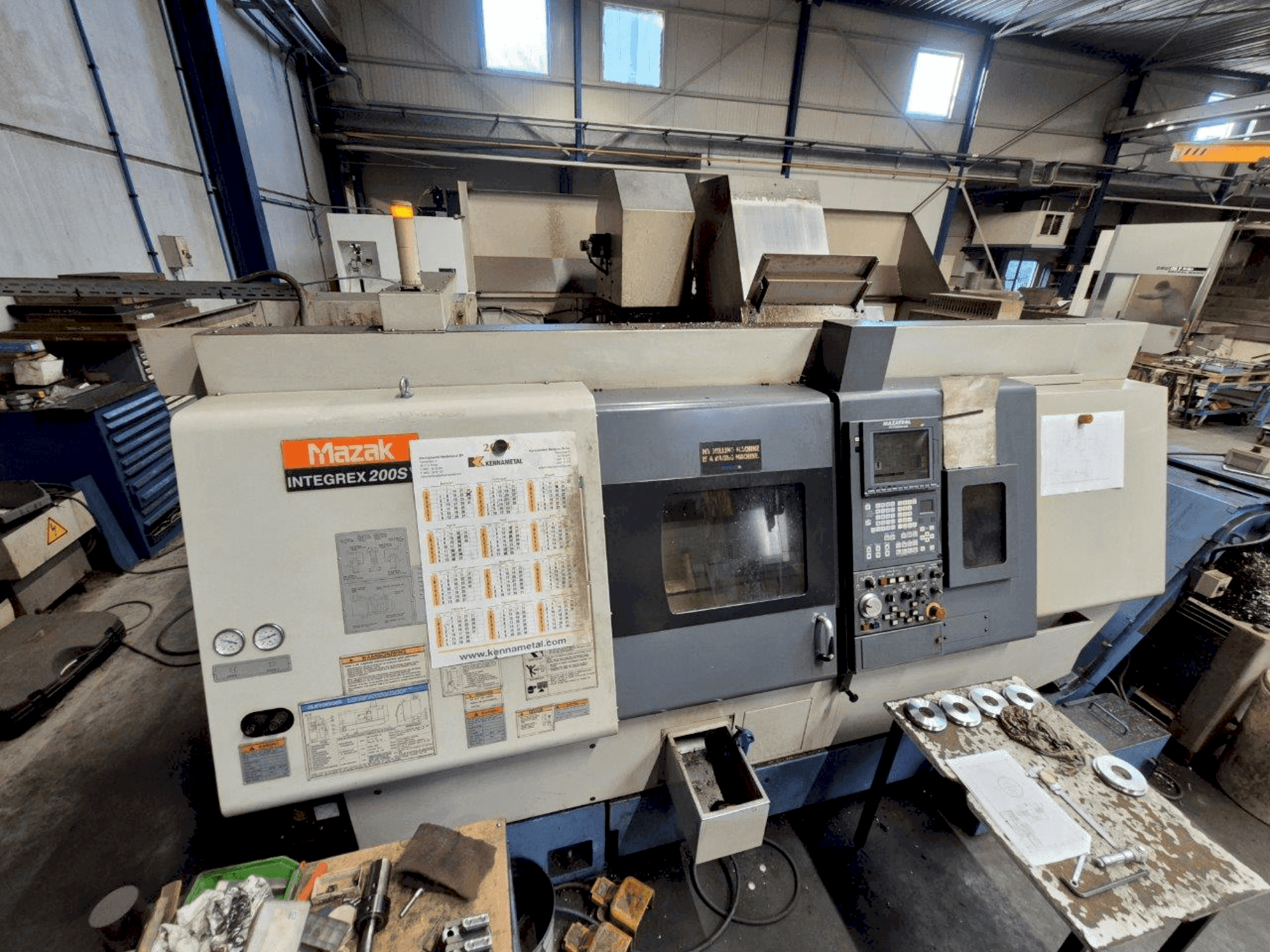

Front view of Mazak Integrex 200SY machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 200SY

Photo Gallery

Mazak - Integrex 200SYBE-TUR-MAZ-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Integrex 200SY For Sale | gindumac.com

Show in original language

This 5-axis Mazak Integrex 200SY turn-mill centre was manufactured in 1999, featuring a maximum turning length of 1018mm and a diameter of 540mm. It supports a weight up to 100kg, with X, Y, Z movements of 530mm, 140mm, and 1065mm respectively. The main spindle offers 22kW power and 5000 RPM, complemented by a sub spindle and live tools both at 7.5kW. It includes a 20-position ATC with a swift 1.3 sec change time. Contact us for more information about this machine.

Overview

brand: Mazak
year: 1999
MODEL: Integrex 200SY
application type: Turning
Location: Belgium
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak Integrex 200SY

General Data

Machine weight: 7500 kg

Control Unit

Brand: MAZATROL
Model: 640MT

Movement

X-AXIS Movement: 530 MM
Y-AXIS Movement: 140 MM
Z-AXIS Movement: 1065 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - X-axis speed: 30 m/min / y-axis speed: 15 m/min / z-axis speed: 33 m/min
- - Max. Turning length: 1018 mm / max. Turning length: 1018 mm / max. Weight: 100 kg
- - Main spindle power: 22 kw / main spindle speed: 5000 rpm / main spindle speed: 5000 rpm
- - Sub spindle power: 7. 5 kw / sub spindle speed: 5000 rpm
- - Live tools power: 7. 5 kw / live tools speed: 6000 rpm / atc (automatic tool changer): 20 positions / tool change time: 1. 3 sec
- - Total power requirement: 43 kva /

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
