Mazak - Integrex 400 II SYGB-TUR-MAZ-2003-00001
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- Mazak Integrex 400 II SY

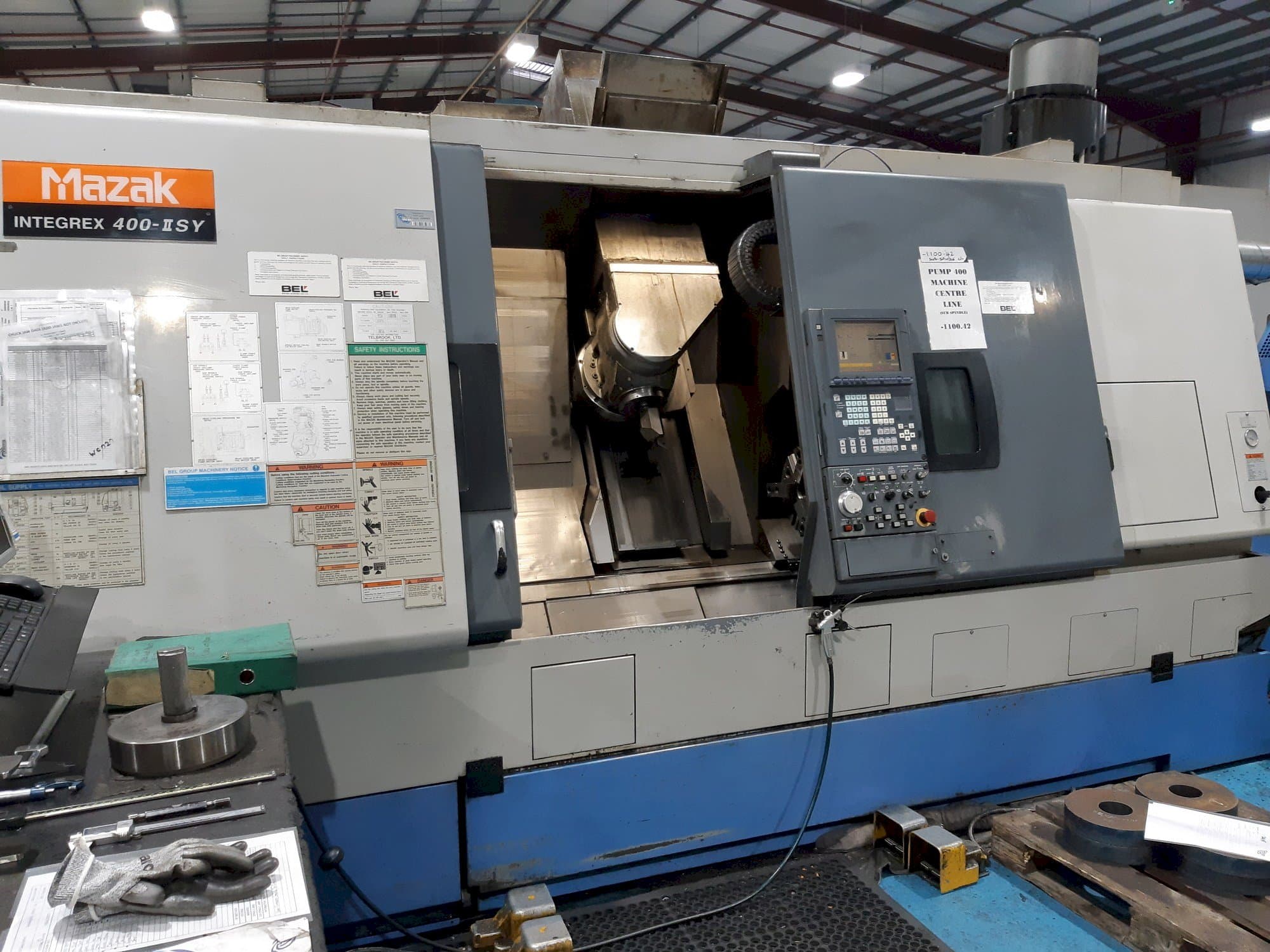

This Mazak Integrex 400 II SY lathe machine was built in 2003 in Japan. It has been on for 9652 hours, of which 7774 are cutting time. This 5 axis machine is operated through a Mazak Mazatrol Fusion 640 MT Pro control unit. It has a spindle speed up to 3000 rpm and a milling spindle speeds 10.000 rpm. It is in very good conditions.
Overview
- brand: Mazak
- year: 2003
- MODEL: Integrex 400 II SY
- production hours: 9652
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- control unit brand: MAZATROL
Technical Information - Mazak Integrex 400 II SY
Control Unit
- Model: Mazatrol Fusion 640 MT Pro
- CNC language customizable: Yes
- Brand: MAZATROL
Main drive
- Number of spindles: 2
- Spindle speed range: 3000 1/MIN
- Spindle motor power: 30 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 580 mm
- Y-AXIS Movement: 230 mm
- Z-AXIS Movement: 1137 mm
Tools
- Slots in storage: 40
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Max turning ø 610 mm
- - Through spindle coolant 70 bar
- - Subspindle speeds 3500 rpm, motor 15 kw
- - C-axis 0. 001° (both spindles)
- - Spindle bore diameter ø 88 mm
- - Milling spindle synchronous tapping, work measuring system renishaw mp10, eia/iso option package
- - Milling spindle speeds 10. 000 rpm, motor 15 kw
- - 6 jaw 15" chuck, 6 jaw 12" chuck
- - Max turning ø over slide 390 mm
- Qualitative Machine Benefits:
- - Very good condition of the machine
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
