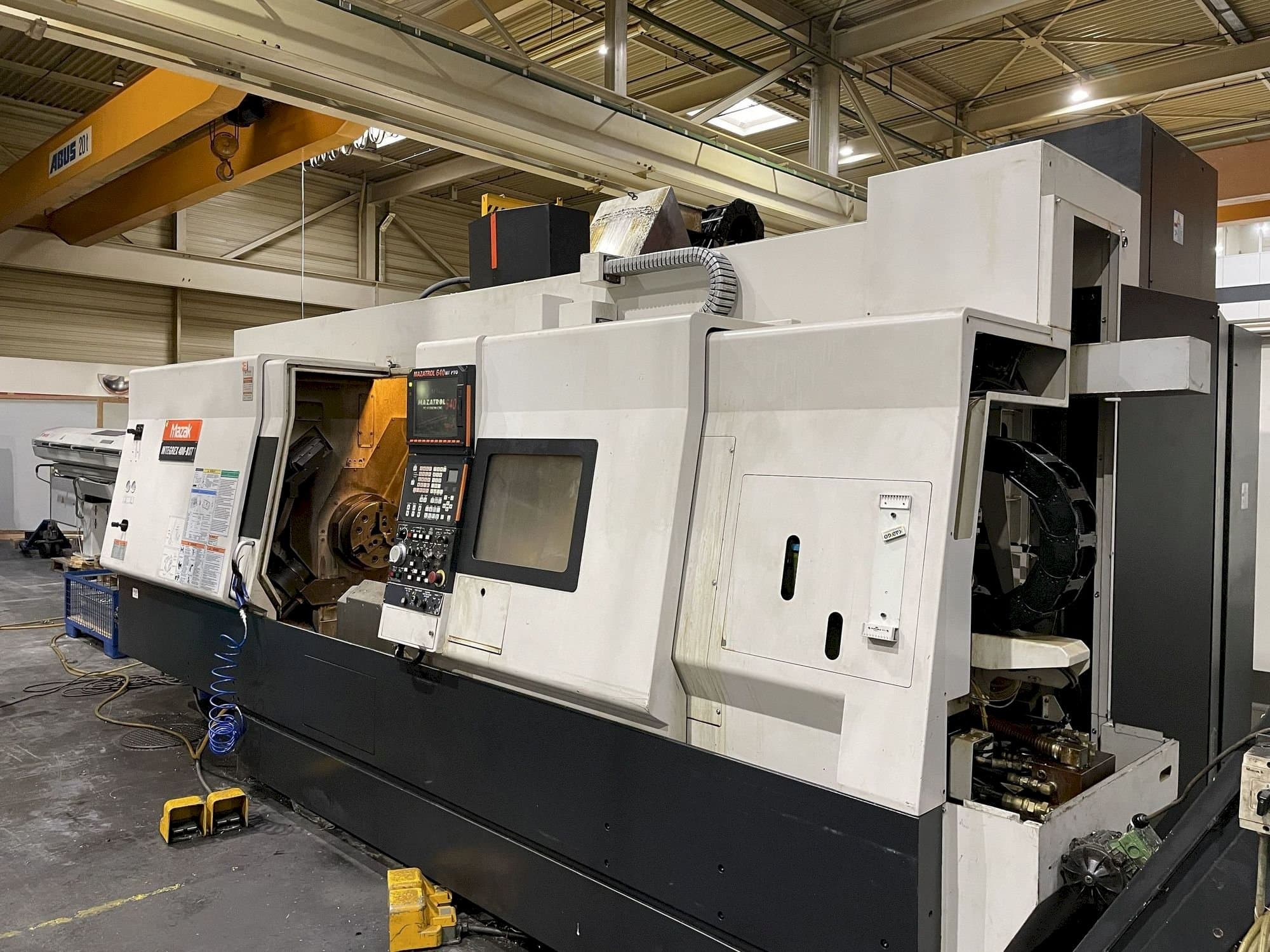

Front view of Mazak Integrex 400 III ST machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Integrex 400 III ST

Photo Gallery

Mazak - Integrex 400 III STDE-TUR-MAZ-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Integrex 400 III ST turning

Show in original language

This Mazak Integrex 400 III ST lathe was manufactured in 2005. It has a Mazatrol PC Fusion 640 Mt control unit. This 4 axis machine has a milling spindle speed up to 12000 rpm. The machine turns very precisely in the hundredths range. The spindle and the axes run very smoothly.

Overview

brand: Mazak
year: 2005
MODEL: Integrex 400 III ST
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: MAZATROL

Technical Information - Mazak Integrex 400 III ST

General Data

Machine weight: 13900 kg

Control Unit

Model: PC Fusion 640 Mt
Brand: MAZATROL

Main drive

Number of spindles: 2
Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 630 mm
X-AXIS Rapid traverse: 38 m/min
Y-AXIS Movement: 1585 mm
Y-AXIS Rapid traverse: 26 m/min
Z-AXIS Movement: 1585 mm
Z-AXIS Rapid traverse: 38 m/min

Turret

Number of turrets: 1

Additional Information

Machine Benefits

Technical Machine Benefits

30 capto tool holders available on request (at an additional cost)
Spindle passage = 102 mm
Dimensions: 630 mm x 270 mm
Drive power main / counter spindle: 30/ 26 kw
Circumferential diameter over bed: 760 mm
Swing diameter over slide: 760 mm
Max. Turning diameter: 1524 mm
Max. Turning length: 630 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
