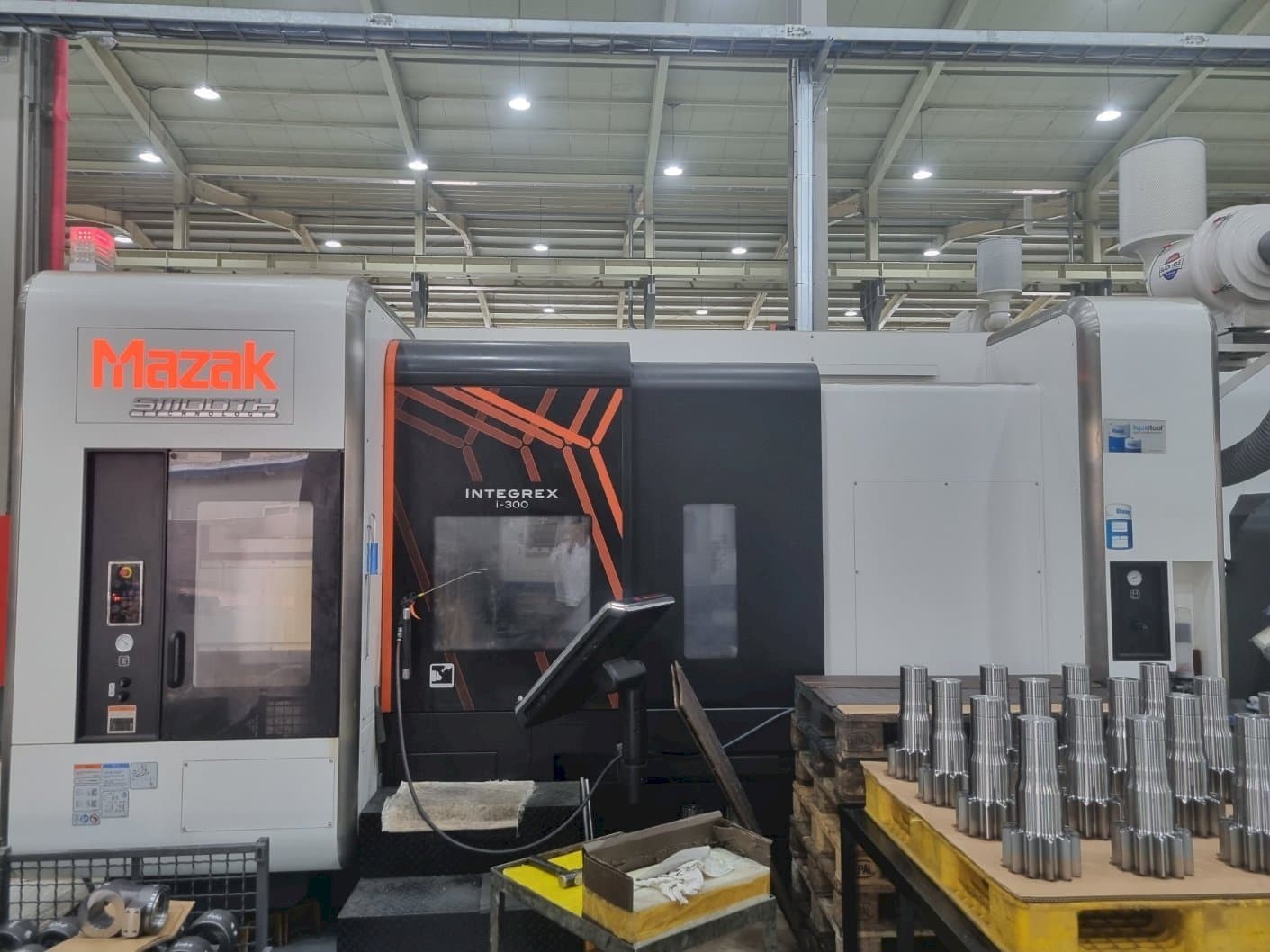

Mazak Integrex i-300

Photo Gallery

Mazak - Integrex i-300KR-TUR-MAZ-2019-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak Integrex i-300 Lathe

Show in original language

This Mazak Integrex i-300 Lathe was manufactured in the year 2019 in Japan. It has 5 axis. The machine has a spindle speed of 4000-12000 rpm.

Overview

brand: Mazak
year: 2019
MODEL: Integrex i-300
application type: Turning
Location: South Korea
machine type: Turn-Mill Centre
availability: Sold

Technical Information - Mazak Integrex i-300

General Data

Machine weight: 15700 kg

Main drive

Spindle speed range: 4000-12000 1/MIN
Tool taper: HSK-A63
Number of axis: 5

Movement

X-AXIS Movement: 615 mm
X-AXIS Rapid traverse: 50 M/min
Y-AXIS Movement: 260 mm
Y-AXIS Rapid traverse: 40 M/min
Z-AXIS Movement: 1585 mm
Z-AXIS Rapid traverse: 50 M/min
B-AXIS Movement: -30º~210º MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main chuck size: 254 mm
- - Max. Swing on carriage:dia 658 mm
- - Max. Machining dia:dia 658 mm
- - Max. Machining length:1519 mm
- - Mazak api, engraving function
- - Mtconnect adapter, synchronous tapping for turning/milling
- - Tool radius compensation / 5-axis, engraving function, tool cutting point control, additional m code one set (2 m-codes)
- - G00 slope constant, mill turning (mazatrol), cylindrical & polar coordinate (eia)
- - Preparation for multi & flash tool sys, mazak monitoring system b (rmp600), spindle shaper-type operation, install, training & supervision (w/o tryout)
- - Additional set of manuals (paper), foundation kit (anchor bolts & plates), delete standard chuck and cylinder, 10" thru-hole chuck b-210a0815x
Qualitative Machine Benefits:
- - Rotary-tool sp. 12000 rpm (oil & air) 24kw, tool eye (automatic)high/low chuck pressure system, mazak nc gage multi-tasking pack
- - Reference sphere+magnet stand,hobbing function (override w/o tool) , coolers for ball screw (y, z axis), oil skiimer rb-200a
- - Coolant and air blast for chuck jaws, coolant temp control sys, 1. 5mpa thru coolant/flood coolant simul
- - Prep. Gp1000 mist collect. W/pw&duct/1500u, energy dashboard function
- - Signal tower, k4 prep. Singl/auto w/shower coolant/1500u,
- - Chip bucket, chip conveyor, transformer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
