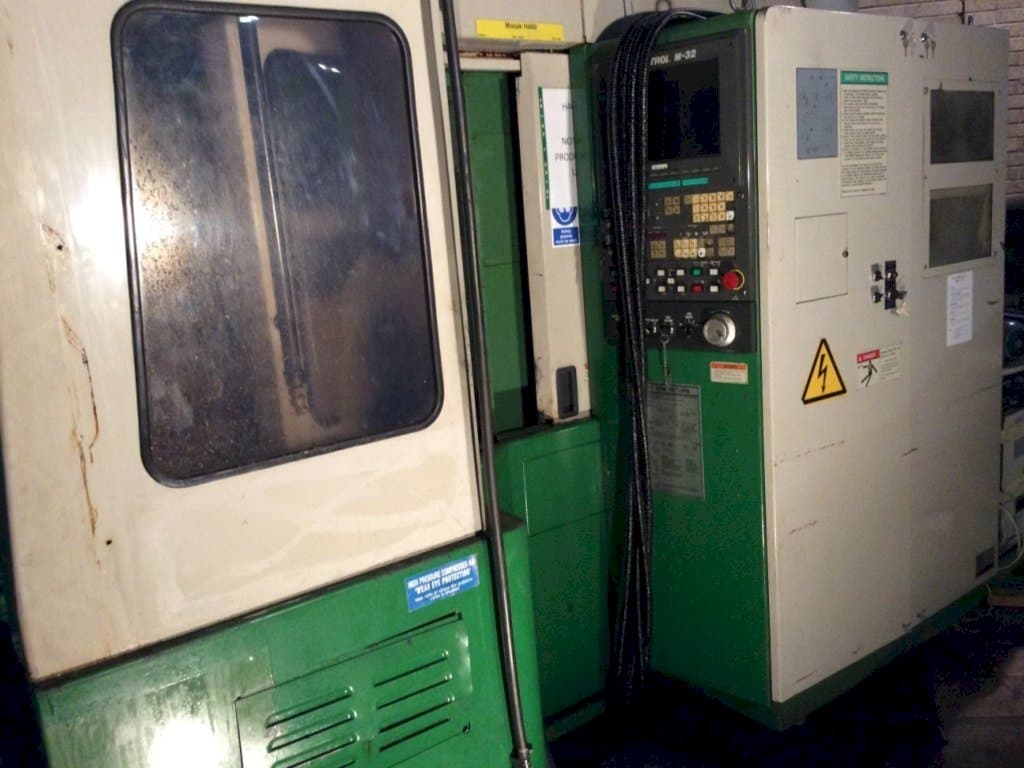

Front view of Mazak Mazatech H400 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak Mazatech H400

Photo Gallery

Mazak - Mazatech H400IE-MIL-MAZ-1987-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak Mazatech H400 Horizontal Machining Center

Show in original language

This Mazak Mazatech H400 Horizontal Machining Center was built in Japan in 1987. It is equipped with a Mazak Mazatrol M-32 control unit. This Mazak can operate with a spindle speed up to 10000 rpm. It includes 4 x tombstones.

Overview

brand: Mazak
year: 1987
MODEL: Mazatech H400
application type: Milling
Location: Ireland
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak Mazatech H400

General Data

Measurements width: 7000 mm
Measurements depth: 2700 mm
Measurements height: 2300 mm
Machine weight: 10900 kg

Control Unit

Model: Mazatrol M-32
CNC main language: English
CNC language customizable: Yes
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN
Spindle motor power: 15 hp

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece x: 610 mm
Workpiece y: 600 mm
Workpiece weight: 400 kg

Table

Outer length: 400 mm
Outer width: 400 mm

Tools

Slots in storage: 80
Max weight: 12 kg
Max tool diameter: 150 mm
Max tool length: 320 mm

Media

Main electronic connection: 400 V
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- 4 x Tombstones

Additional Information

Machine history

End product: Medical device parts
Industries: Medical device

Machine Benefits

Technical Machine Benefits:
- - Twin pallet horizontal machining centre
- - 80 tool atc
- - Spindle to table center: 100 - 610mm
- - Spindle nose to table top: 30 - 540mm
- - Pallet size: 400 x 400mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
