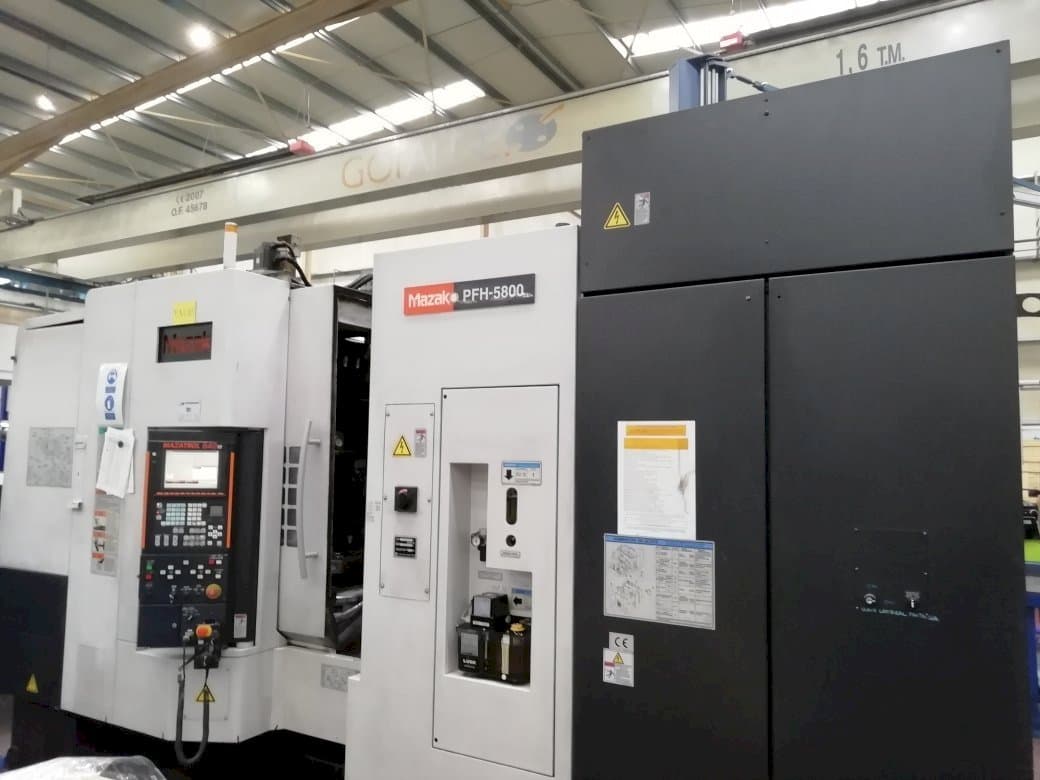

Mazak PFH 5800 Horizontal Machining Center

Show in original language

This Mazak PFH 5800 Horizontal Machining Center was manufactured in 2005 in Japan. It has a production record of 72658 working hours ever since. It is operated through a Mazatrol Fusion 640M control unit. This 4th axis machine can works with a spindle speed range up to 12000rpm. Two years ago, the spindles and bearings of the x and y axes were changed.

Overview

brand: Mazak
year: 2005
MODEL: PFH 5800
production hours: 72658
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak PFH 5800

General Data

Measurements width: 4445 mm
Measurements depth: 2730 mmº
Measurements height: 2641 mm
Machine weight: 11600 kg

Control Unit

Model: Fusion 640M
Brand: MAZATROL

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kW
Spindle bore: 4

Movement

X-AXIS Movement: 729 mm
Y-AXIS Movement: 729 mm
Z-AXIS Movement: 701 mm

Table

Outer length: 497.8 mm
Outer width: 497.8 mm
Table load: 700 kg

Tools

Type of tool holder: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4th axis
- - New grease pump
Qualitative Machine Benefits:
- - Well maintained
- - The spindles and bearings of the x and y axes were changed 2 years ago

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
