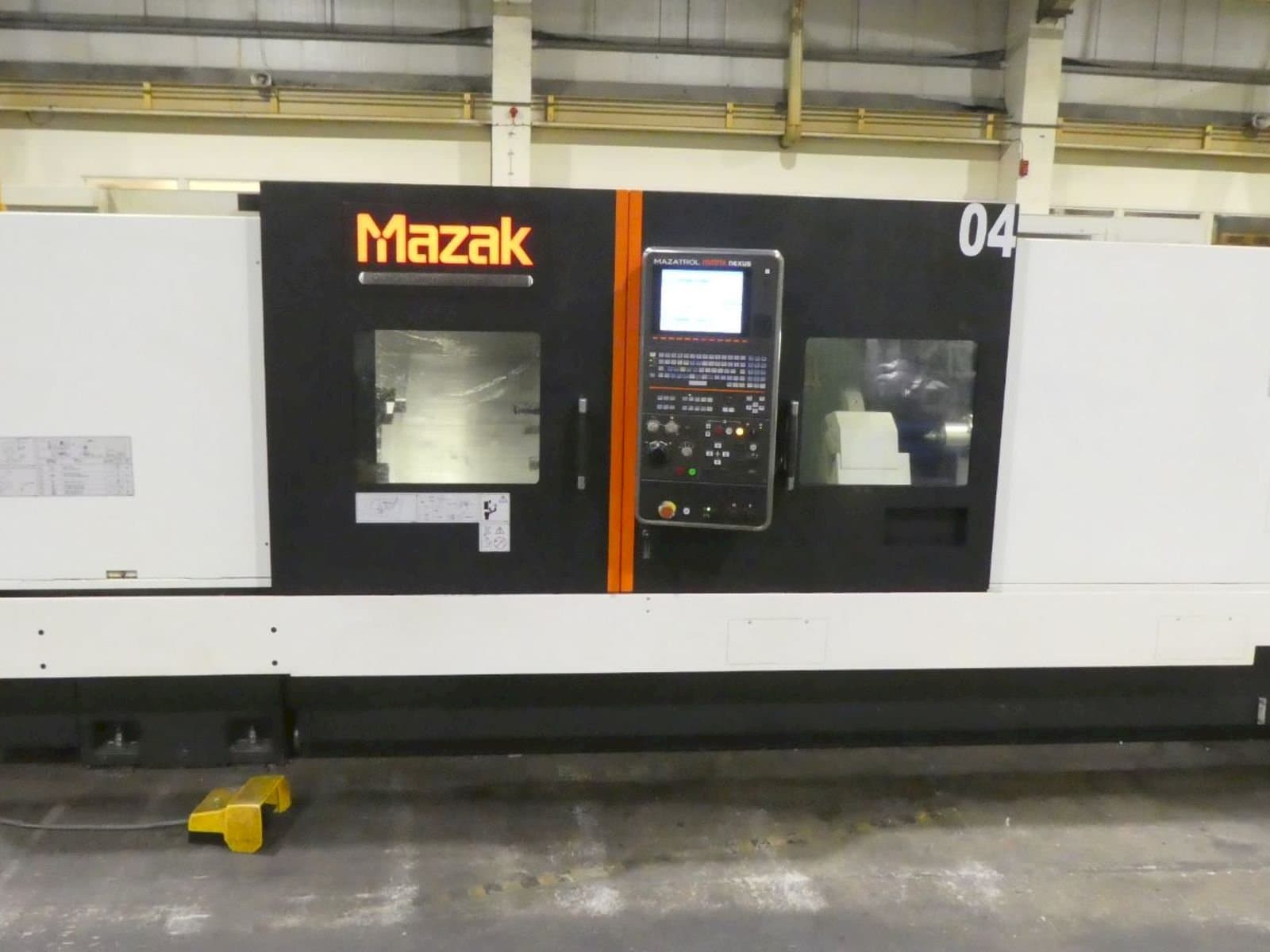

Front view of Mazak QUICK TURN NEXUS 450-II M machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak QUICK TURN NEXUS 450-II M

Photo Gallery

Mazak - QUICK TURN NEXUS 450-II MGB-TUR-MAZ-2013-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MAZAK QUICK TURN NEXUS 450-II M Lathe

Show in original language

This MAZAK QUICK TURN NEXUS 450-II M Lathe was manufactured in the year 2013 in United Kingdom and has 2169 cutting hours. It is equipped with a MAZATROL MATRIX NEX control unit and has 3 axis. The machine has a spindle speed of 35 - 2000 rpm.

Overview

brand: Mazak
year: 2013
MODEL: QUICK TURN NEXUS 450-II M
production hours: 2168
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: MAZATROL

Technical Information - Mazak QUICK TURN NEXUS 450-II M

General Data

Measurements width: 5680 mm
Measurements depth: 2536 mm
Measurements height: 2040 mm
Machine weight: 12150 kg

Control Unit

Model: MATRIX NEXUS
Brand: MAZATROL

Main drive

Spindle speed range: 35 - 2000 1/MIN
Spindle motor power: 30 kW
Tool taper: A2-15”
Number of axis: 3

Movement

X-AXIS Rapid traverse: 30 m/min
Z-AXIS Rapid traverse: 30 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum swing : 845 mm
- - Max. Machining dia. : 580 mm
- - Max. Machining length: 2075 mm
- - Z-axis stroke: 2120 mm
- - X-axis stroke: 340 mm
- - Chuck size: 18”
- - Through hole diameter: 166 mm
- - Bar work capacity : 165 mm
- - Tailstock travel: 2075 mm, tailstock centre: mt no. 5
Qualitative Machine Benefits:
- - Driven tool holders.
- - Static boring and turning tool holders.
- - Smw hydraulic steady rest.
- - Programmable tailstock.
- - Tool setter.
- - Swarf conveyor.
- - Machine manuals

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
