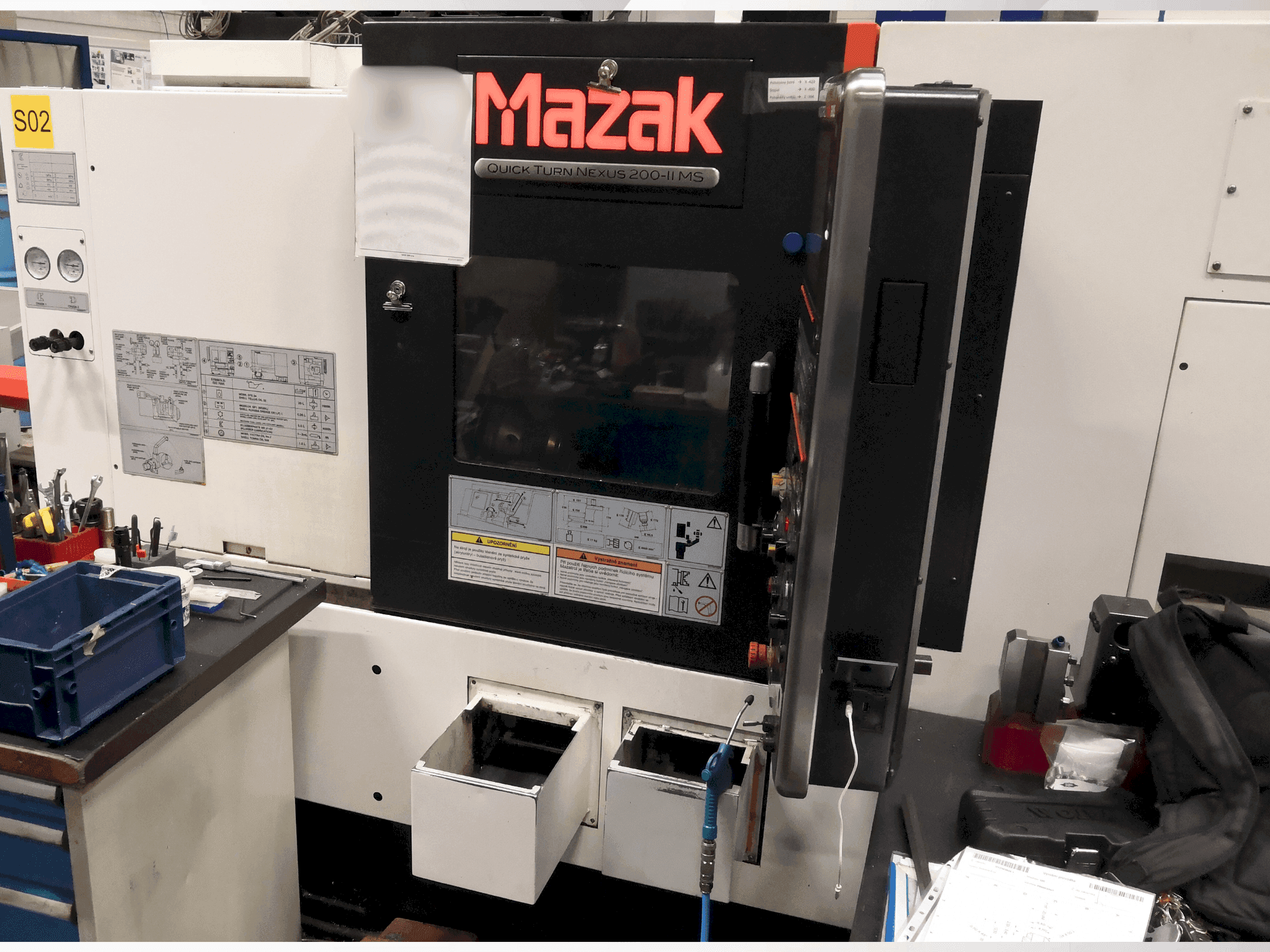

Mazak - Quickturn Nexus 200-II MSCZ-TUR-MAZ-2013-00001

Additional equipment

• - Barfeed Magazine: Spacesaver SS2500 (Ø6-80 mm, Max L=1525 mm)
• - Chip Conveyor: Mayfran
• - Collet Chuck: KITAGAWA QCRL60A6 for main spindle (without collets)
• - Jaw Chuck: KITAGAWA BB208 for main spindle (without jaws)
• - Jaw Chuck: KITAGAWA B20 for subspindle spindle (without jaws)

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Maximum turning diameter: 675 mm
  • - Turning length: 575 mm
  • - Maximum machining diameter: 380 mm
  • - Max. Bar diameter: 77 mm
  • - Positions: 12 (all driven)
  • - Machine with lower accuracy; turret head cannot achieve repeatability accuracy of 0. 1 mm. Achieved accuracies were within the range of 0. 02 to 0. 3 mm in the x and y axes.
  • - During the last thorough service (march 2025), potential x and z axis guide bending and turret off-axis rotation were noted.
  • - Possible issues with turret mounting (bearings, touching surfaces, etc. ).
  • - Machine needs new bearings on the main spindle.

Payment Terms

• Payment in advance

• Asset Financing
