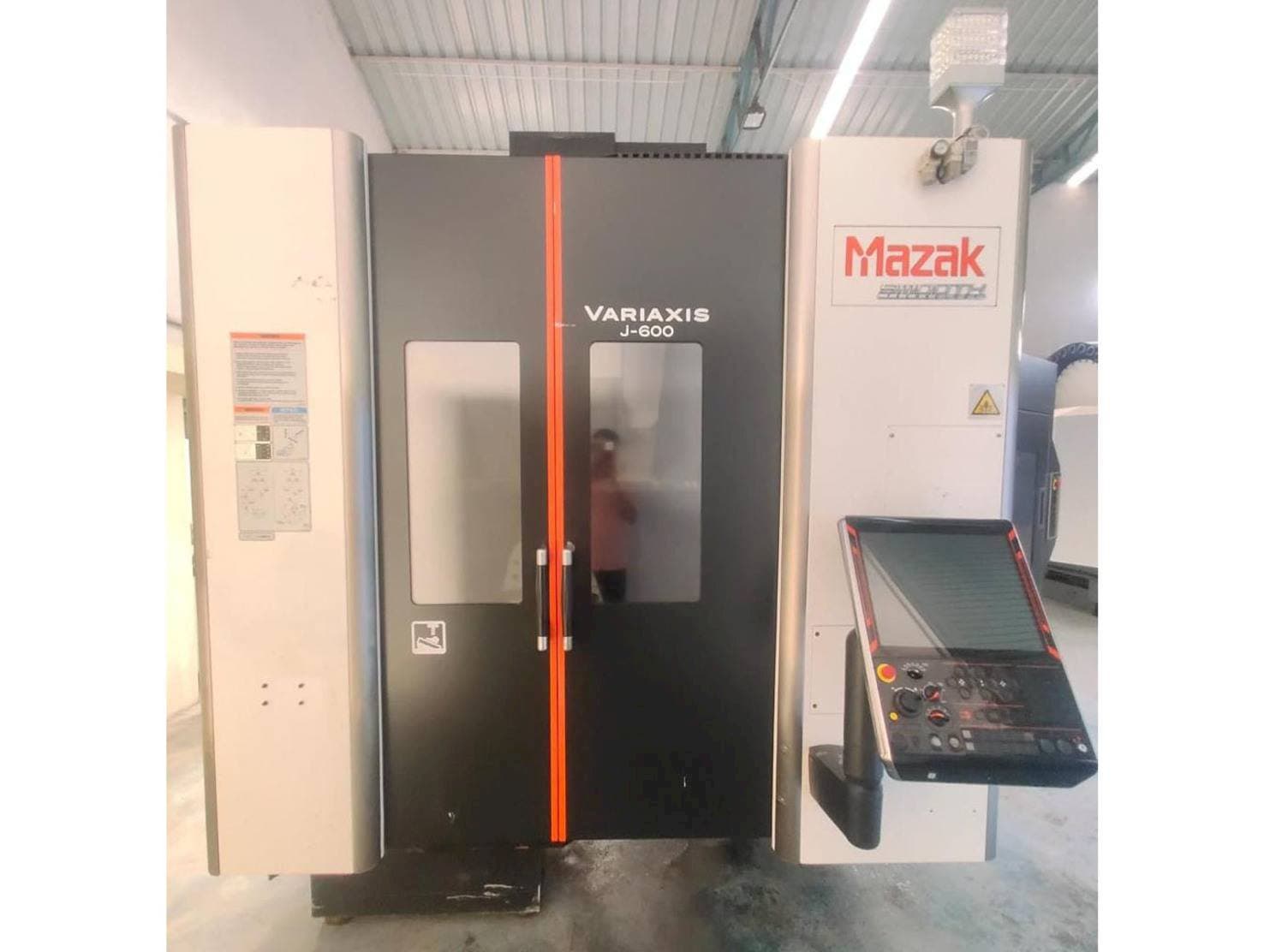

Mazak - VARIAXIS J-600IN-MIL-MAZ-2017-00001

General Data

• Measurements width: 2400 mm
• Measurements depth: 3325 mm
• Measurements height: 3060 mm
• Machine weight: 11000 kg

Main drive

• Spindle speed range: 35-12000 1/MIN
• Spindle motor power: 7.5/11 KW
• Spindle bore: 7/24 taper no. 40
• Tool taper: BT 40
• Number of axis: 5

Movement

• X-AXIS Movement: 850 mm
• X-AXIS Rapid traverse: 30000 mm/min
• X-AXIS Accuracy: 0.016 mm
• Y-AXIS Movement: 550 mm
• Y-AXIS Rapid traverse: 30000 mm/min
• Y-AXIS Accuracy: 0.012 mm
• Z-AXIS Movement: 510 mm
• Z-AXIS Rapid traverse: 30000 mm/min
• Z-AXIS Accuracy: 0.012 mm
• B-AXIS Accuracy: 14 s
• C-AXIS Accuracy: 14 s

Table

• Outer length: 600 mm
• Outer width: 500 mm
• Height adjustment: 950 MM
• Table load: 500 KG

Tools

• Max tool diameter: 130 mm
• Max tool length: 300 mm
• Type of tool holder: BT40 or CAT. no. 40

Media

• Main electronic connection: 50 / 60 hz +- 1 hz
• Power consumption: 29.4 kw
• Air pressure: 0.5 to 0.9 mpa
• Chip conveyor: Yes
