Mazak - VCS 530CES-MIL-MAZ-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

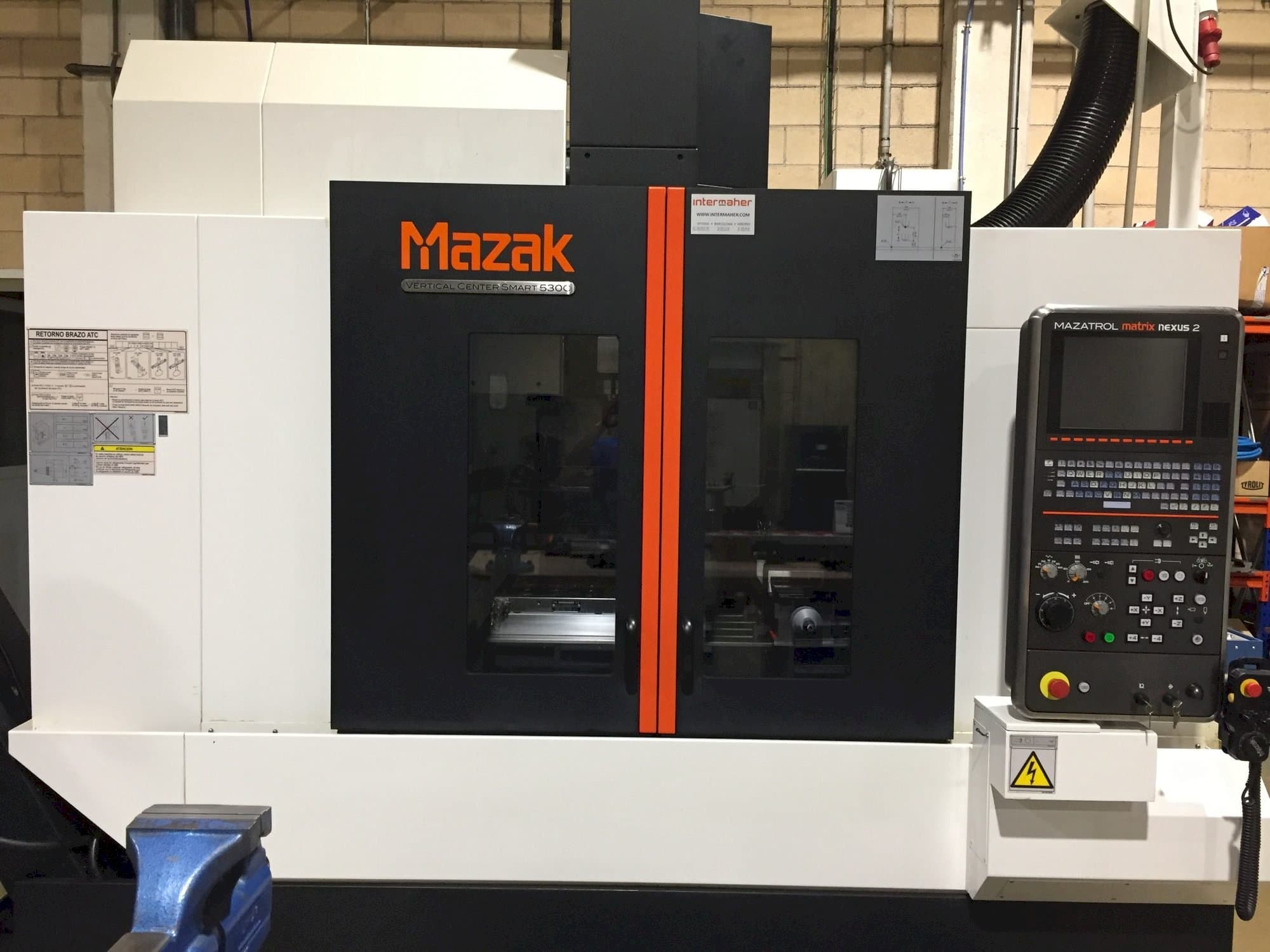

Mazak VCS 530C Vertical Machining Center

Show in original language

This Mazak VCS 530C Vertical Machining Center was manufactured in the year 2015 in United Kingdom. It has been working for 2371 hours. It is equipped through a Mazatrol Matrix NX2 control unit. This 3 axis machine can work with a spindle speed range up to 12000 rpm and counts with a table size of 1300 x 550 mm. It is in very good condition.

Overview

brand: Mazak
year: 2015
MODEL: VCS 530C
production hours: 2371
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak VCS 530C

Control Unit

Model: Matrix NX2
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1050 mm
Y-AXIS Movement: 530 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 1200 KG

Table

Outer length: 1300 mm
Outer width: 550 mm
Number of tslots: 5
Distance between: 18 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 350 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High pressure cooling 15 bar
- - Automatic tool gauge
- - Synchronized threading
- - Air blowing to the part
- - Renishaw ts 27r gage
- - Mazacc 3d software for high speed + high smoothing control
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
