➤ Used Mazak VTC-200C-II Vertical Machining Center

Show in original language

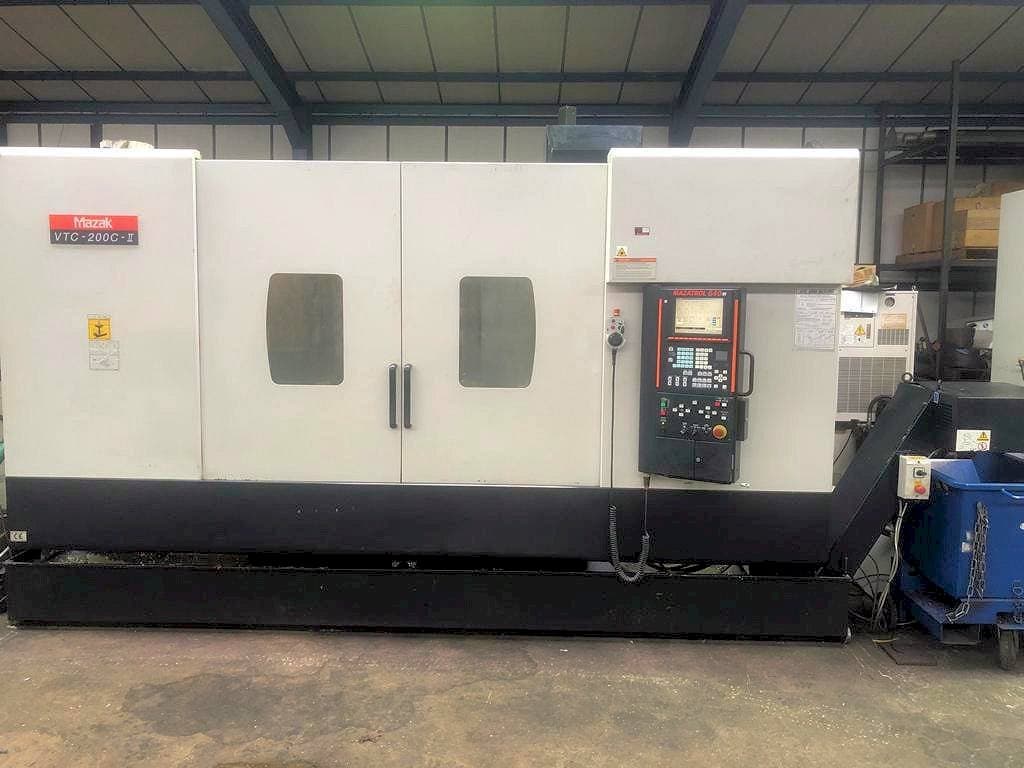

This Mazak VTC-200C-II Vertical Machining Center was built in the year 2007 in the United Kingdom. It is equipped with a Mazak Mazatrol 640M control unit. This machine incorporates a spindle speed range up to 12,000 rpm. It presents very good conditions.

Overview

brand: Mazak
year: 2007
MODEL: VTC-200C-II
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak VTC-200C-II

General Data

Measurements width: 2870 mm
Measurements depth: 2819 mm
Measurements height: 2870 mm
Machine weight: 8260 kg

Control Unit

Model: Mazatrol 640M
Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 1660 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 1200 kg

Table

Outer length: 2000 mm
Outer width: 510 mm

Tools

Slots in storage: 30
Type of tool holder: SK 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool breakage sensor
- - Interlocked guards
- - Coolant
- - Low volt light
- - Rapid feedrates x y z: 36 m/min
- - Max & min distance table-spindle 180 - 690 mm
- - 4th axis rotary table
- - Spindle motor power 15 kw
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
