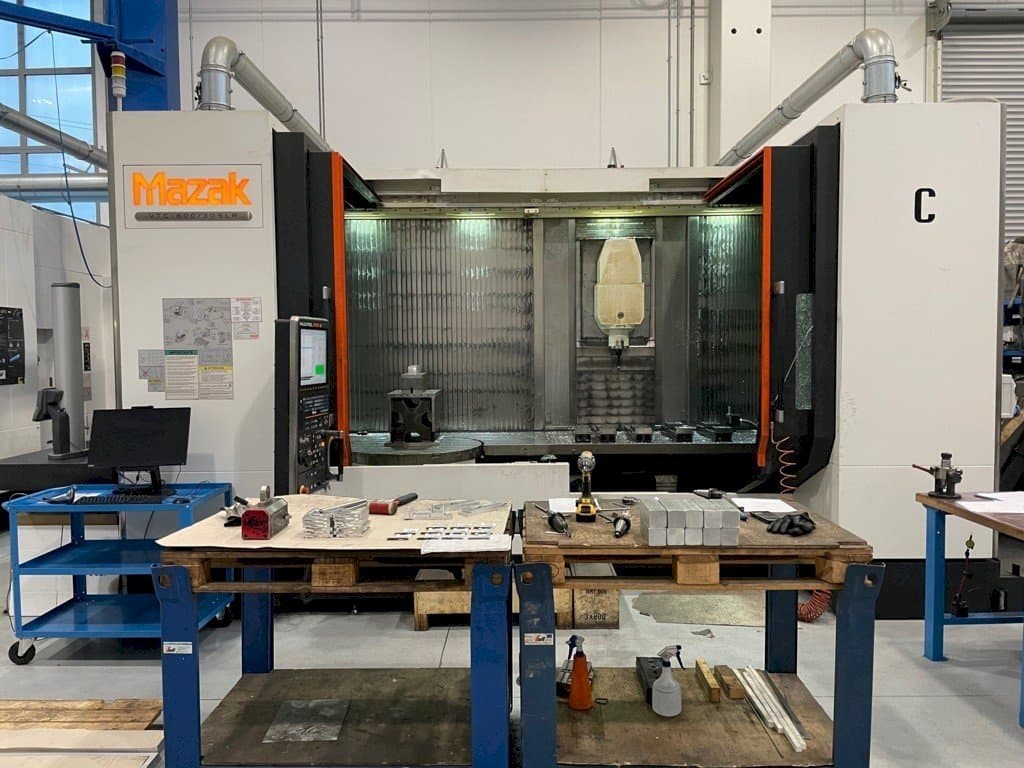

Front view of Mazak VTC 800/30 SLR machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Mazak VTC 800/30 SLR

Photo Gallery

Mazak - VTC 800/30 SLRIT-MIL-MAZ-2017-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak VTC 800/30 SLR Vertical Milling machine

Show in original language

This Mazak VTC 800/30 SLR Vertical Milling machine was made in 2017 and has been installed in the year 2018. It has a working history of 2500 hours. This 5 axis machine is operated through a Mazatrol matrix 2 control unit. It comes with a spindle speed up to 18000 rpm and a table dimension of 3500 x 820 mm.

Overview

brand: Mazak
year: 2017
MODEL: VTC 800/30 SLR
production hours: 2500
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Mazak VTC 800/30 SLR

General Data

Measurements width: 4210 mm
Measurements depth: 5250 mm
Measurements height: 3330 mm

Control Unit

Model: matrix 2
Brand: MAZATROL

Main drive

Spindle speed range: 18000 1/MIN
Spindle motor power: 35 kW
Tool taper: ISO 40
Number of axis: 5

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 720 mm

Table

Outer length: 3500 mm
Outer width: 820 mm

Media

Main electronic connection: 380 V
Chip conveyor: Yes

Additional equipment

- Hive tool magazine no. 155
- Remote handwheel
- Central bulkhead for pendular machining
- 3-colour lamp
- Spindle nose air blower
- High pressure coolant
- Through the spindle 15 bar
- Renishaw RMP60 probe
- 5 axis packages
- Sensitive drilling cycle

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Matrix 2 numerical control
- - Measurements width add: 624 mm (mobile cnc panel)
- - Integrated rotary table Ø 1000
- - X, y, z axis rapid feed speed: 50 m/min
- - Spindle power: 15 min working - 35 kw / continuous - 26 kw
- - G07 cylindrical interposer
- - Lateral chip conveyor
- - Right-handed mayfran conveyor
- - B-axis head rotation: +/- 110 degrees
- - C axis: +/- 360 degrees

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
