MCM Clock Horizontal Machining Center

Show in original language

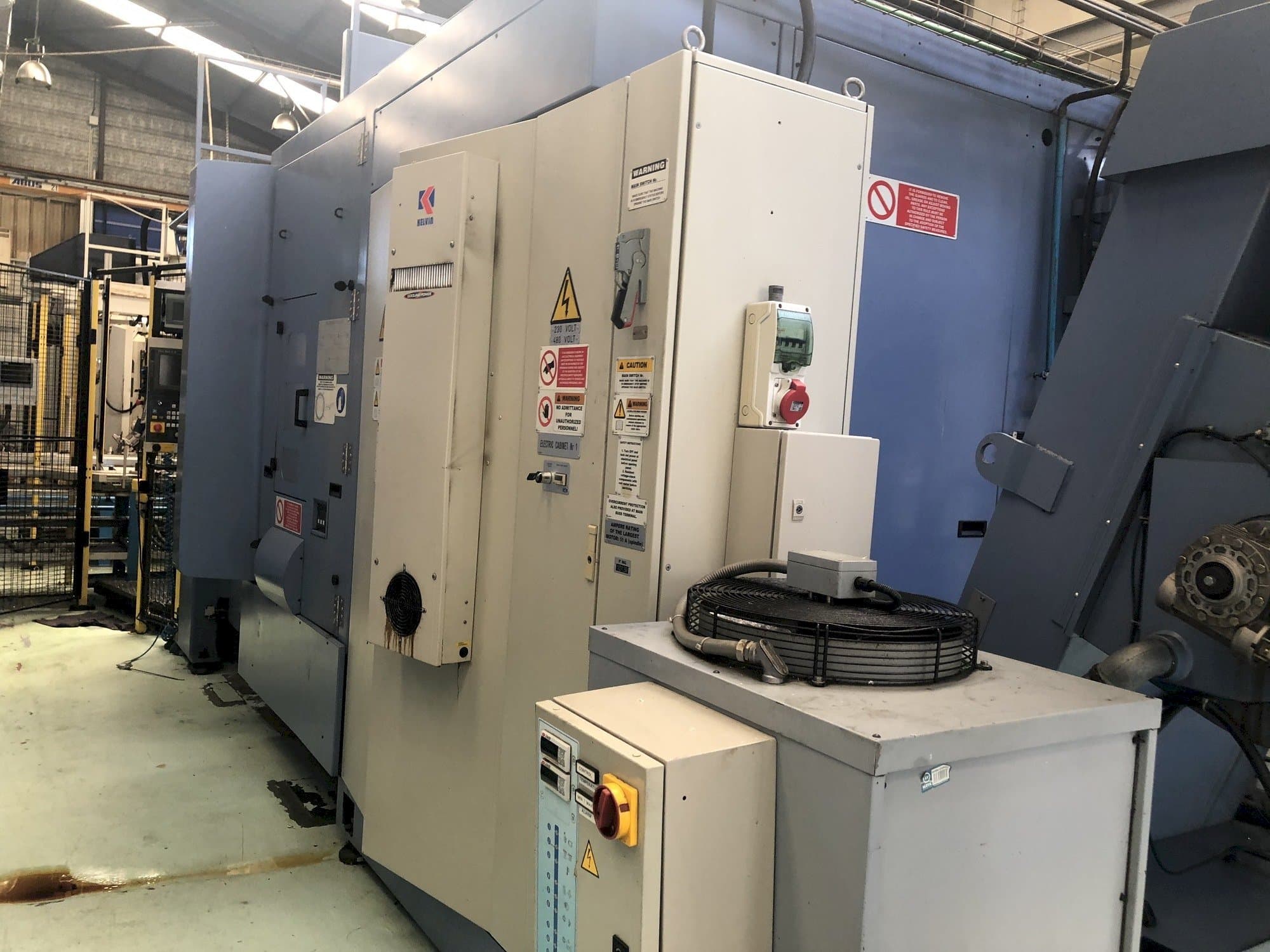

This MCM Clock Horizontal Machining Center was built in Italy in the year 2003. It is equipped with a Fanuc 16i M control unit. It can operate with a spindle speed up to 15000 rpm. Equipped with ARTIS MARPOSS tool. 4 UNITS AVAILABLE

Overview

brand: MCM
year: 2003
MODEL: Clock
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - MCM Clock

General Data

Measurements width: 7080 mm
Measurements depth: 2980 mm
Machine weight: 14200 kg

Control Unit

Model: 16i M
Brand: FANUC

Main drive

Spindle speed range: 15000 1/MIN

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 700 mm

Workpiece

Workpiece weight: 400 kg

Tools

Slots in storage: 40
Max weight: 8 kg
Max tool length: 300 mm
Type of tool holder: HSK63

Media

Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Equipped with artis marposs tool analyzer
- - Rotary tables 500 x 500 mm
- - Max load 400 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
