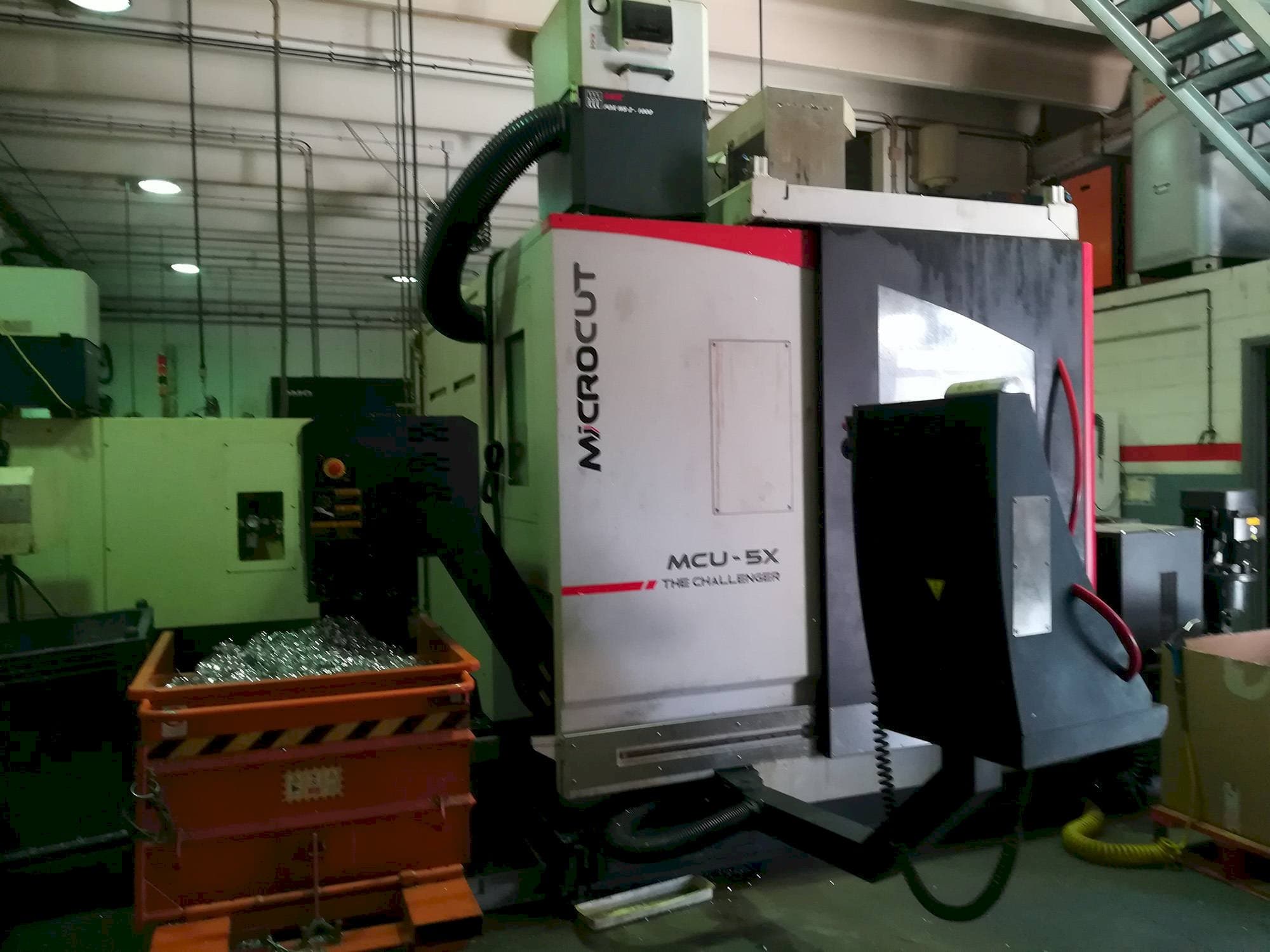

MICROCUT MCU-5X Milling Machine

Show in original language

This MICROCUT MCU-5X Milling Machine was manufactured in the year 2015 in Taiwan. It has a production record of 10131 working hours. It is equipped with a Heidenhain iTNC530 HSCI control unit. This machine counts with a spindle speed up to 24000 rpm. It has a new spindle since August 2019. It includes an air conditioning for electrical cabinet, an hydraulic head cooling unit, and a coolant for cleaning interior-exterior cabin.

Overview

brand: MICROCUT
year: 2015
MODEL: MCU-5X
production hours: 10131
application type: Milling
Location: Spain
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MICROCUT MCU-5X

General Data

Machine weight: 8000 kg

Control Unit

Model: iTNC530 HSCI
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000- 24000 1/MIN

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 600 mm

Tools

Slots in storage: 24-32
Type of tool holder: BT40/ DIN69871/ CAT40/ HSK A63

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - New spindle in august 2019
- - Motor power: 20/ 52. 5 kw (heidenhain) - 15/ 18. 5 kw (fanuc) -20/ 25 kw (built in spindle)
- - 5 axes simultaneous machining center
- - Internal cooling 70 bar
- - Renishaw probe 0 piece
- - Random tool changer
- - Maximum tool length 295mm
- - 32-tool tool magazine
- - Air conditioning for electrical cabinet
- - Hydraulic head cooling unit

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
