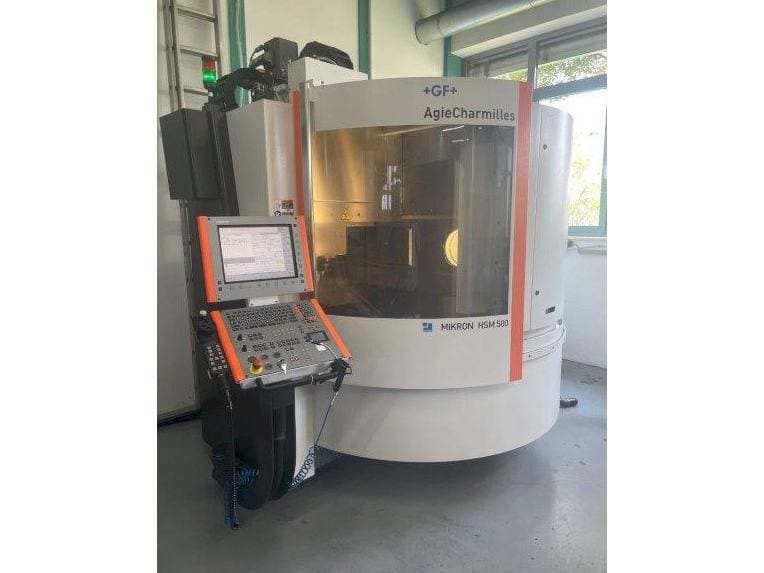

Mikron HSM 500 Milling machine

Show in original language

This Mikron HSM 500 Milling machine was made in 2010 and has 12778 hours, of which 9499 are spindle hours. It is equipped with a Heidenhain iTNC 530 control unit and has 3 axis. The machine has a spindle speed of 100-30000 rpm.

Overview

brand: MIKRON
year: 2010
MODEL: HSM 500
production hours: 12778
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON HSM 500

General Data

Measurements width: 2900 mm
Measurements depth: 2400 mm
Measurements height: 2700 mm
Machine weight: 5500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 100-30000 1/MIN
Spindle motor power: 10-12 kW
Tool taper: HSK E40
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 350 mm

Workpiece

Workpiece x: 55mm
Workpiece y: 45mm

Table

Table load: 200 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Measuring systems: m&h infrared receiver 91. 10-hdr

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
