MIKRON - HSM 600 U ProdmodDE-MIL-MIK-2005-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

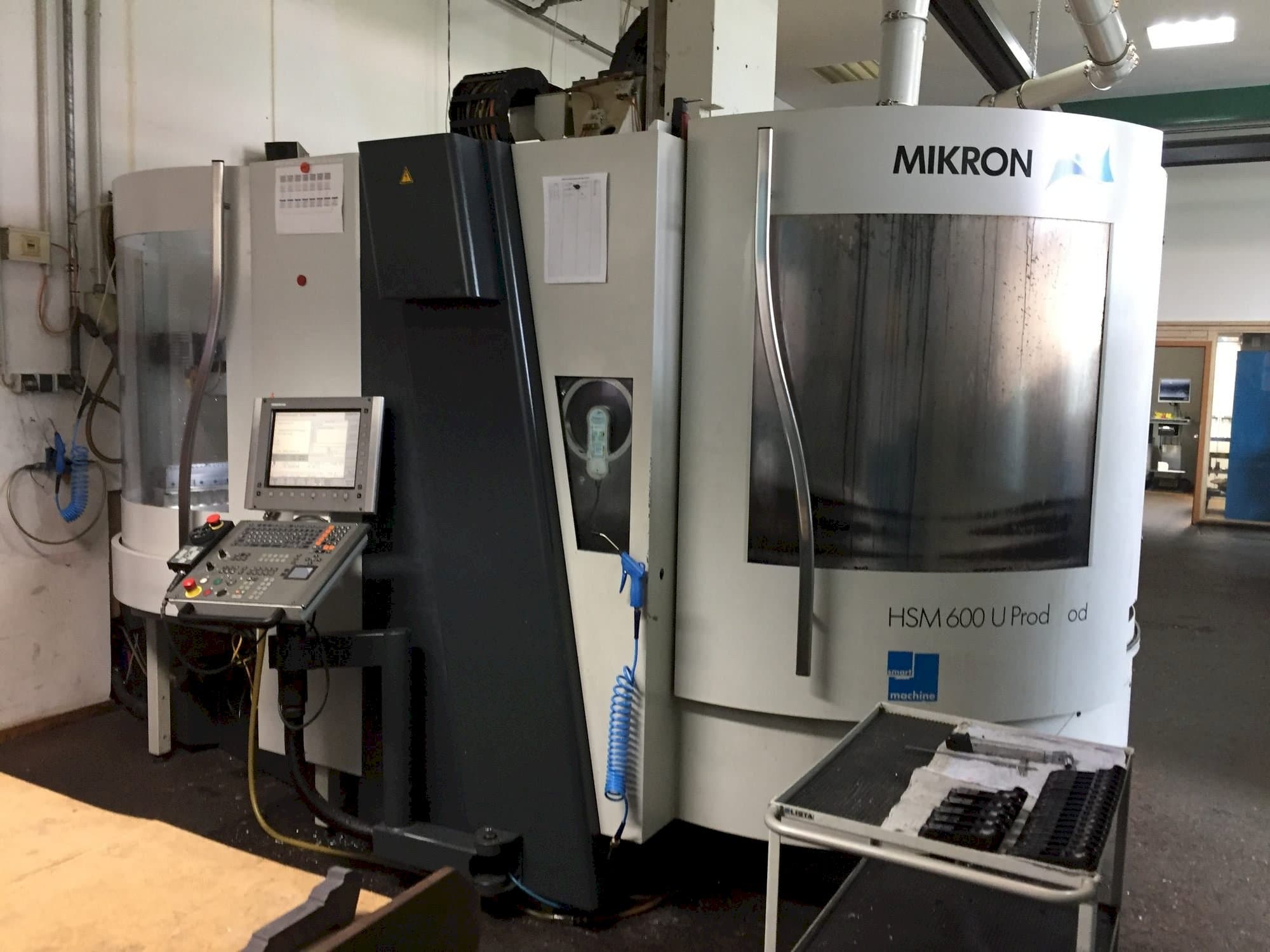

MIKRON HSM 600 U Prodmod Vertical Machining Center

Show in original language

This MIKRON HSM 600 U Prodmod Vertical Machining Center was built in the year 2005 in Switzerland. It is equipped with a Heidenhain iTNC 530 control unit. This machine incorporates a spindle speed range 36 - 24,000 rpm.

Overview

brand: MIKRON
year: 2005
MODEL: HSM 600 U Prodmod
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON HSM 600 U Prodmod

General Data

Measurements width: 6500 mm
Measurements depth: 5500 mm
Measurements height: 3000 mm
Machine weight: 8300 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 36 - 24000 1/MIN

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 500 mm

Workpiece

Workpiece weight: 150 kg

Tools

Type of tool holder: HSK 63

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool magazine: 170
- - 5-axis
- - Table clamping surface 280 x 280 mm
- - Clamping system: upc zero point clamping system
- - Feed rates (x/y/z) 20 / 20 / 40 m/min
- - Feed rapid traverse: 50 m/min

Extra information

- High-speed machining center for production use. The basis is the proven HSM basic machine, which is characterised by high dynamics, compactness, variety of variants and ergonomics is designed. The ProdMod expansion stage also has a tool storage tower that can hold 220 tools offers space. A work area cladding with chip flushing nozzles and various Expansion stages on chip conveyors and coolant treatment systems complete the system. Besides the Mikron pallet changers also provide an interface for connecting a third-party robot available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
