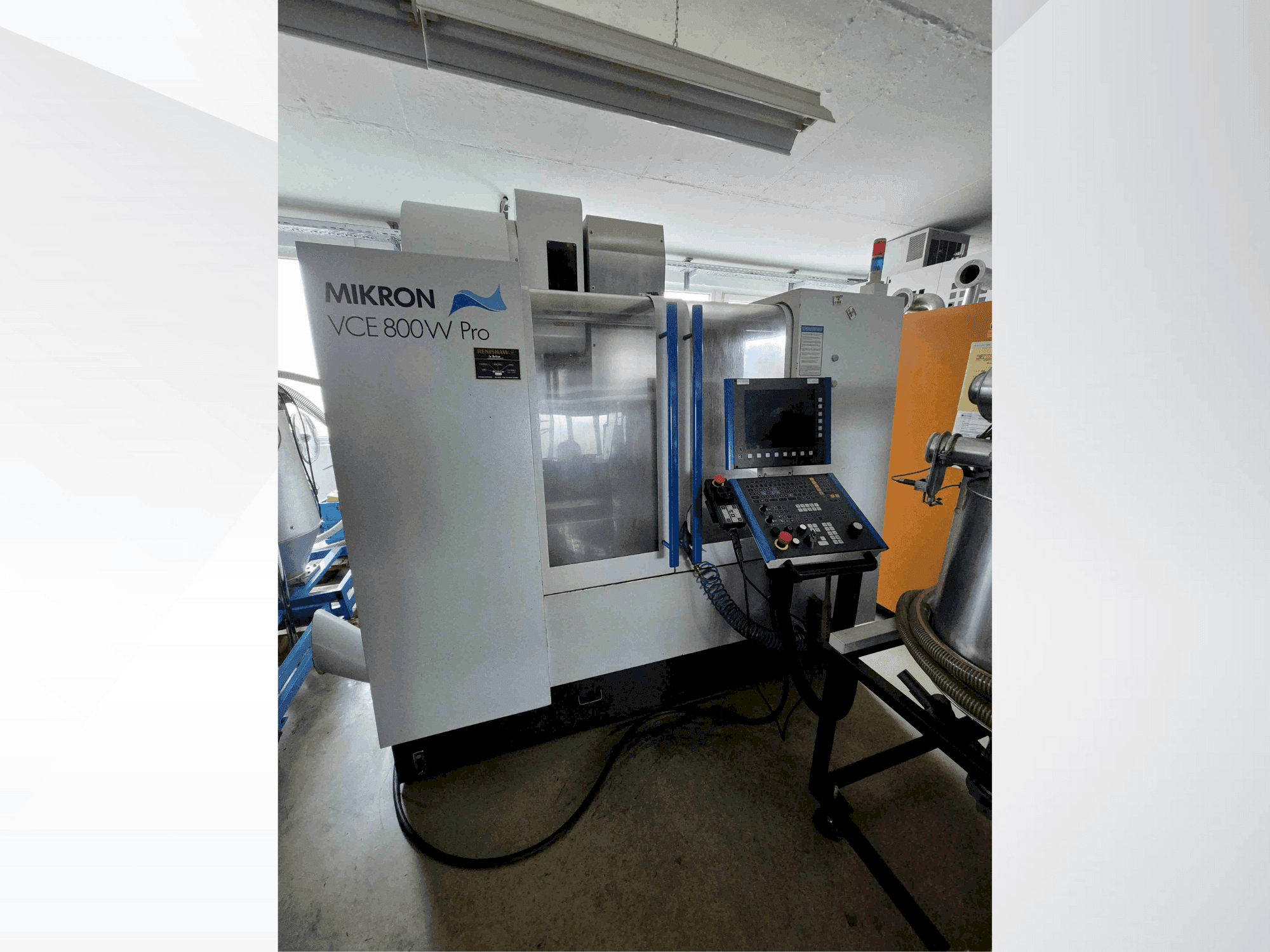

Front view of MIKRON VCE 800W Pro machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MIKRON VCE 800W Pro

Photo Gallery

MIKRON - VCE 800W ProDE-MIL-MIK-2003-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MIKRON VCE 800W Pro For Sale | gindumac.com

Show in original language

This 3-axis MIKRON VCE 800W Pro vertical machining center was manufactured in 2003. It features a robust tool changing system with a 24-slot capacity and a maximum table load of 1350 kg. The machine offers rapid traverse rates up to 24 m/min in X and Y, and 20 m/min in Z, ensuring efficient machining. If you are looking to get high-quality milling capabilities, consider the MIKRON VCE 800W Pro machine we have for sale. Contact us for more information.

Overview

brand: MIKRON
year: 2003
MODEL: VCE 800W Pro
production hours: 0
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON VCE 800W Pro

General Data

Measurements width: 2550 MM
Measurements depth: 3500 MM
Measurements height: 2800 MM
Machine weight: 6500 KG

Control Unit

Brand: HEIDENHAIN

Main drive

Spindle speed range: 3000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 860 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 600 mm
Z-AXIS Rapid traverse: 20 m/min

Table

Outer length: 1000 mm
Outer width: 560 mm
TSlots size: 18 mm
Number of tslots: 5
Table load: static - 1350 kg ; dynamic - 1100 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool holder: iso-b-40 / din 69871
- - Tool changing system: 24-fold
- - T-slots (width/spacing): 18 x 100 mm
- - Coolant system capacity: 270 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
