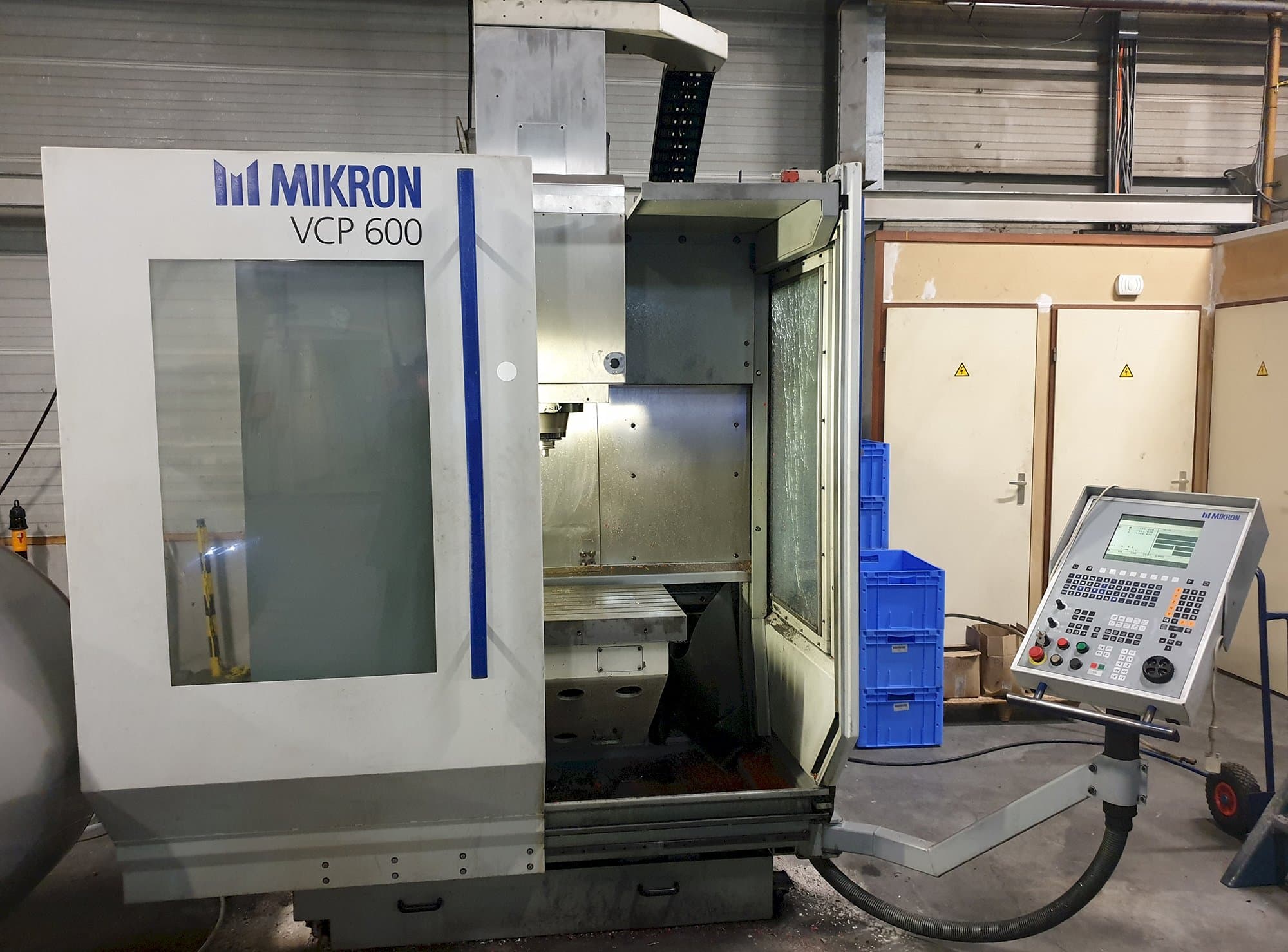

MIKRON VCP 600 Vertical Machining Center

Show in original language

This MIKRON VCP 600 Vertical Machining Center was made in 1999 in Switzerland and has a production time of 44000 hours. Equipped with a Heidenhain 426PB Control unit, this machine works with a continuous speed range and no drop off in power. It includes ceramic hybrid bearings with "life lubrication" and an ISO 40 spindle taper.

Overview

brand: MIKRON
year: 1999
MODEL: VCP 600
production hours: 44000
application type: Milling
Location: Netherlands
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON VCP 600

General Data

Measurements width: 1600 mm
Measurements depth: 2500 mm
Measurements height: 2650 mm
Machine weight: 6100 kg

Control Unit

Model: 426PB
Brand: HEIDENHAIN

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 450 mm

Workpiece

Workpiece weight: 400 kg

Table

Outer length: 850 mm
Outer width: 530 mm

Media

Main electronic connection: 380 V
Power consumption: 44 kVA
Internal cooling: Yes

Additional Information

Machine history

Material type: Stainless steel, plastic
Material thickness: 30 mm
End product: Machining tool parts
Industries: Machinery

Machine Benefits

Technical Machine Benefits:
- - Iso 40 spindle taper
- - Continuous speed range - no drop off in power
- - Ceramic hybrid bearings with 'life lubrication'
Qualitative Machine Benefits:
- - This machine was always working without any downtime
- - Machine has been regulary inspected and maintained by a local engineer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
