MIKRON VCP 800

Photo Gallery

MIKRON - VCP 800CH-MIL-MIK-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MIKRON VCP 800 For Sale | gindumac.com

Show in original language

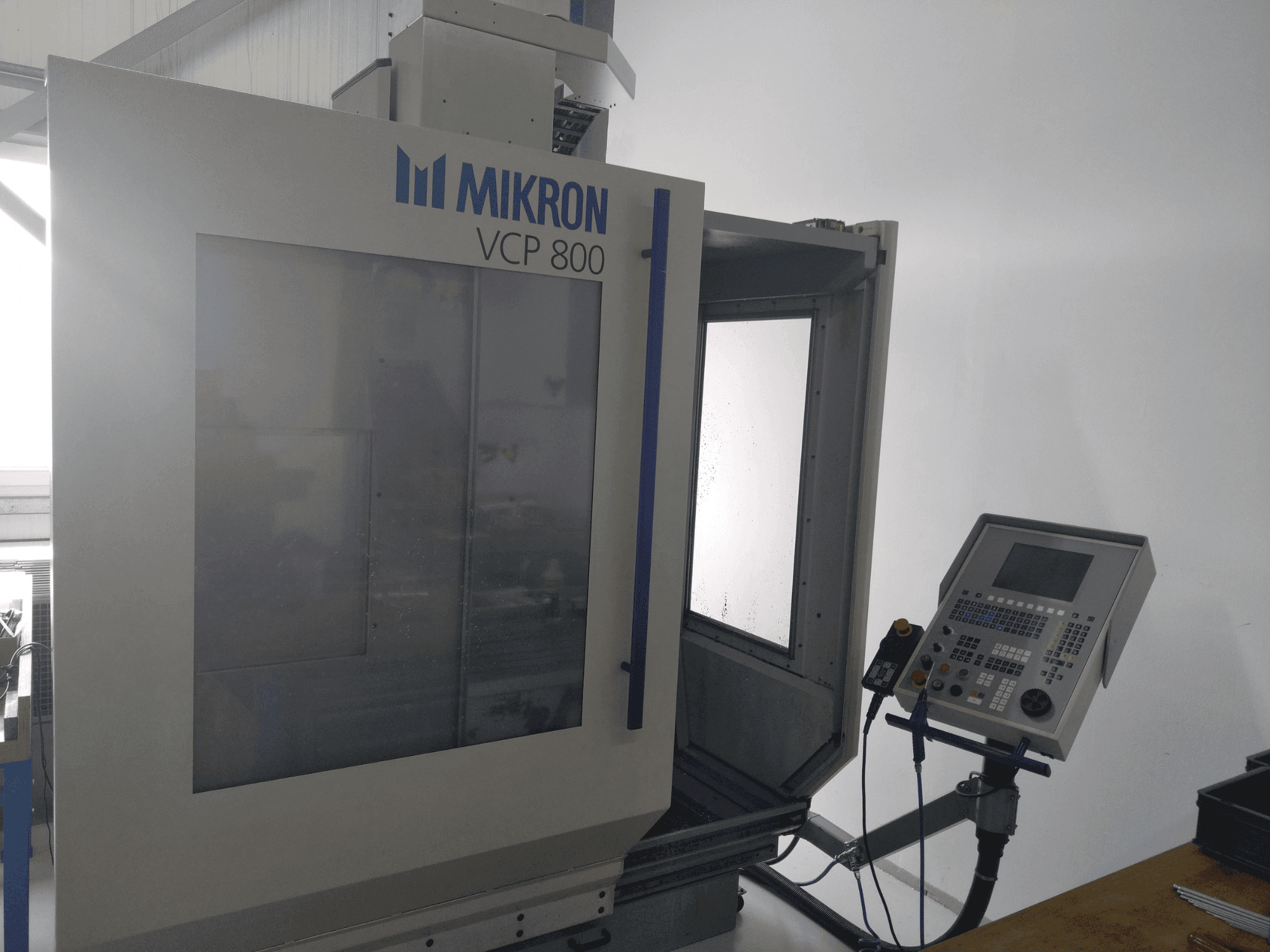

This 5-axis MIKRON VCP 800 was manufactured in 2001. A vertical machining centre, it offers advanced capabilities for detailed and complex machining tasks. Consider the opportunity to buy this MIKRON VCP 800 vertical machining centre. Contact us for more information about this machine.

Overview

brand: MIKRON
year: 2001
MODEL: VCP 800
production hours: 1518
application type: Milling
Location: Switzerland
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON VCP 800

Control Unit

Brand: HEIDENHAIN
Model: TNC 430

Main drive

Spindle speed range: 50 - 20000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 450 mm

Additional equipment

- Lehmann 4/5axle with Erowa ITS148
- Optional accessories such as clamping devices and tools available, 30 WKZ, HSK63

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Power output: 16 kw at 44% duty cycle, 12 kw at 100% duty cycle
- - Tool holder: iso-b-40 / din 69871
- - Pull stud: din 69872 form b (without through hole)
- - Max. Tool projection: up to 1000 rpm: 350 mm, up to 4000 rpm: 250 mm, up to 20000 rpm: 200 mm
- - 30 tools
- - No internal cooling supply
- - No chip conveyor
- - (new spindle, control, ball screw, lehmann 4/5-axis with erowa its 148, currently not installed)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
