Miyano LZ-01RY2

Photo Gallery

Miyano - LZ-01RY2ES-TUR-MIY-2018-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Miyano LZ-01RY2 Lathe Machine - Used

Show in original language

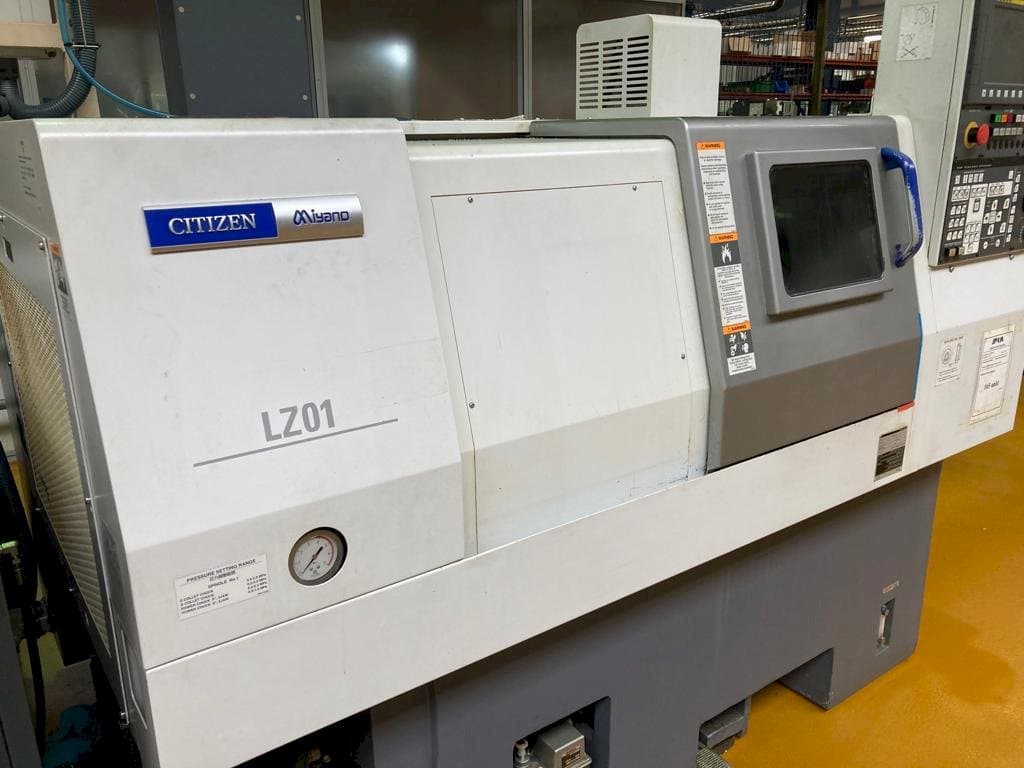

This Miyano LZ-01RY2 Lathe machine was built in 2018 in Japan and has been operative for 5511 hours. It’s equipped with a FANUC Series Oi-TD Control unit. This 4 axis machine works with a spindle speed between 60 - 6000 and a universal automatic parts feeder. This machine comes with a high pressure equipment Müller Combiloop CL4-400.

Overview

brand: Miyano
year: 2018
MODEL: LZ-01RY2
production hours: 5511
application type: Turning
Location: Spain
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Miyano LZ-01RY2

General Data

Measurements width: 2100 mm
Measurements depth: 1555 mm
Measurements height: 1680 mm
Machine weight: 4000 kg

Control Unit

Model: Series Oi-TD
Brand: FANUC

Main drive

Spindle speed range: 60 - 6000 1/MIN

Movement

X-AXIS Movement: 245 mm
Y-AXIS Movement: (+-35) mm
Z-AXIS Movement: 240 mm

Workpiece

Workpiece drm: 490 MM

Tools

Slots in storage: 12

Additional Information

Additional equipment

High Pressure Equipment Müller Combiloop CL4-400

Machine Benefits

Qualitative Machine Benefits

Machine in perfect condition

Technical Machine Benefits

Max. Bar diameter on main spindle 70 mm
Max. Bar diameter on main subspindle 80 mm
Inner diameter of spindle 46 mm
Number of motorized stations on turret 6
Maximum workpiece size in the feeder Ø70x80 mm
Minimum workpiece size in the feeder Ø10x10 mm
Maximum workpiece weight in the feeder 0,7x2 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
