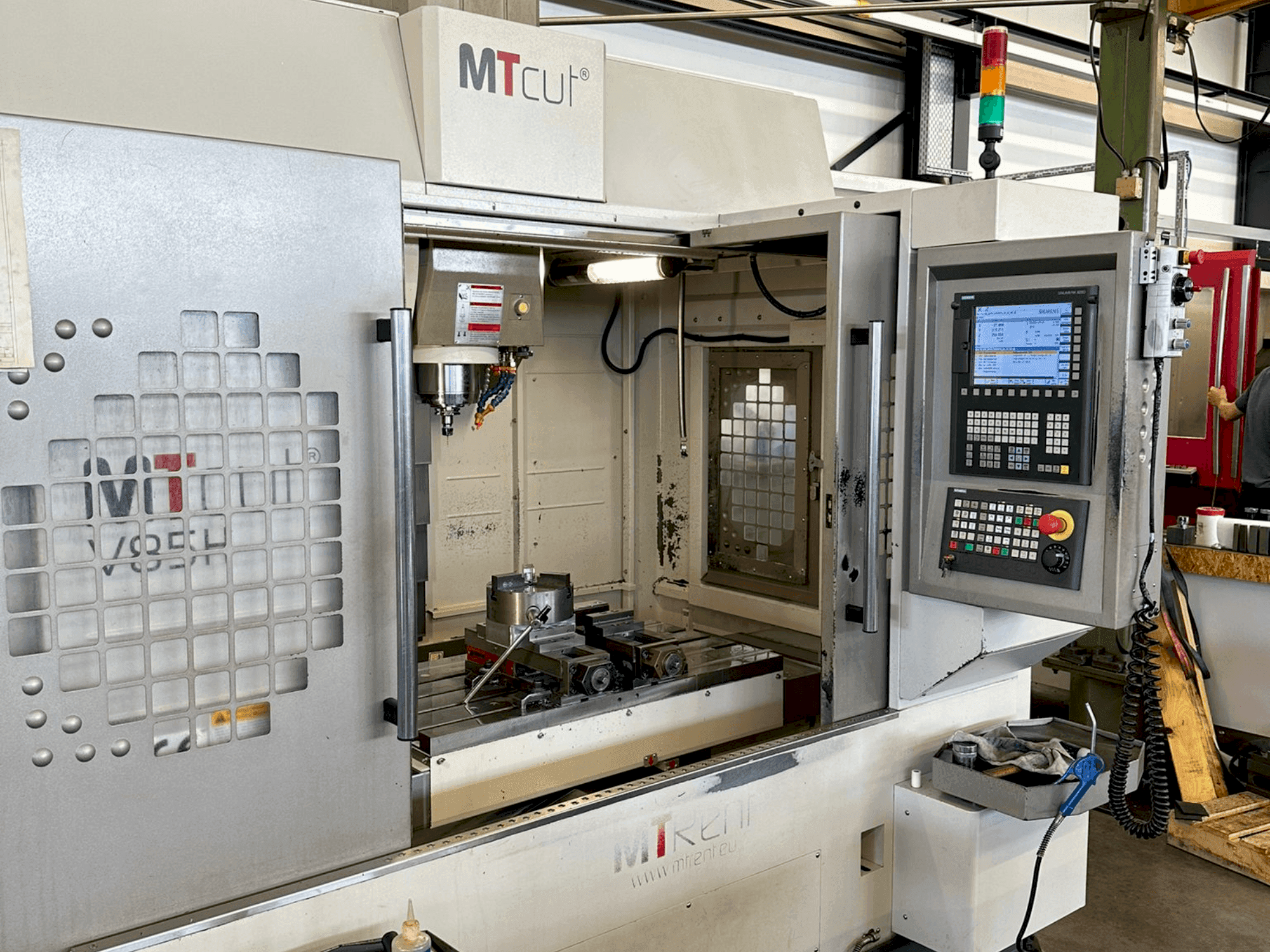

Front view of MTcut V 85 H machine
Front view of MTcut V 85 H machine

MTcut - V 85 HDE-MIL-MTC-2013-00001

Rs. 5,273,450
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis MTcut V85H vertical machining centre was manufactured in 2013. It features a robust work table measuring 1000 x 520 mm with a maximum load capacity of 800 kg. The spindle operates at speeds ranging from 60 to 15,000 rpm, accommodating tools up to 80 mm in diameter and 300 mm in length. With 24 tool positions and a feed rate of up to 12,000 mm/min, the MTcut V85H machine we have for sale is ideal for diverse machining tasks. Contact us for further details.

Overview

  • brand: MTcut
  • year: 2013
  • MODEL: V 85 H
  • production hours: 35411
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately

Technical Information - MTcut V 85 H

General Data

  • Measurements width: 2530 mm
  • Measurements depth: 3100 mm
  • Measurements height: 3000 mm
  • Machine weight: 7800 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 60-15000 rpm 1/MIN
  • Tool taper: SK40
  • Number of axis: 3

Movement

  • X-AXIS Movement: 850 mm
  • Y-AXIS Movement: 520 mm
  • Z-AXIS Movement: 610 mm

Table

  • Table load: 800 kg

Tools

  • Max weight: 7 kg
  • Max tool diameter: 80 mm
  • Max tool length: 300 mm

    Additional equipment

    • - Work table:Size: 1000 x 520 mm
    • - T-slots: 18 mm x 5 x 100 mm
    • - Distance between spindle nose and work table: 130-740 mm
    • - Distance spindle nose stand: 623 mm
    • - Feed rate: 1-12,000 mm/min
    • - Spindle diameter: 70 mm

    Additional Information

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
