MTRent - T22YDE-TUR-MTR-2019-00001

Name: MTRent T22Y
Brand: MTRent
SKU: DE-TUR-MTR-2019-00001
Price: 9714200 INR
Availability: InStock

Rs. 9,714,200

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MTRent T22Y Lathe

Show in original language

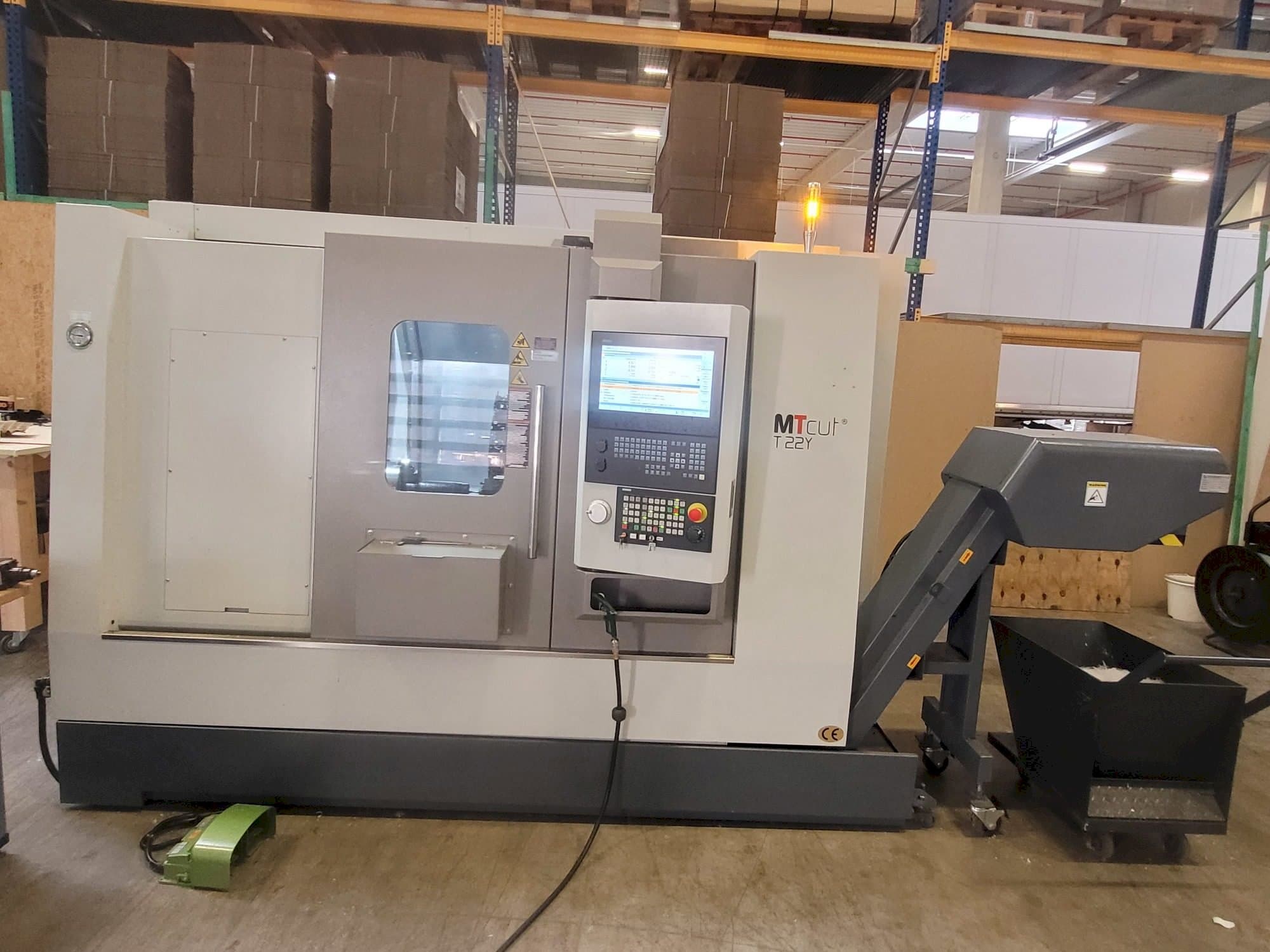

This MTRent T22Y Lathe was made in 2019 in Taiwan and has 1294 production hours. It is equipped with a SIEMENS SINUMERIK 828D control unit. The machine has a spindle speed of 4500 rpm.

Overview

brand: MTRent
year: 2019
MODEL: T22Y
production hours: 1294
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - MTRent T22Y

General Data

Machine weight: 5700 kg

Control Unit

Model: Sinumerik 828D
Brand: SIEMENS

Main drive

Spindle speed range: 4500 1/MIN

Movement

X-AXIS Movement: 200 mm
Y-AXIS Movement: 110 (± 55)mm
Z-AXIS Movement: 560 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Machine has x, y and z axis

Extra information

- Main spindle chuck size: 200 mm Max. swing Ø over bed: 610 mm Max. turning Ø: 270 mm Max. turning length: 510 mm X/Z travel: 200 / 560 mm Y travel: 110 (z 55) Max. Bar capacity: 65 mm Main spindle Spindle speed: 4500 rpm Number of driven tools Tool positions: 16 BMT 45 Machine weight: 5700 kg Siemens Touch Display 15,6 '' Jaw chuck Ø 200 mm C-axis Y-axis Chip conveyor Coolant system, 20 bar Work area light; foot pedal chuck; Machine status light multicolored CE test Tools: 7 driven tools Various tool holders + tools

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
