Muga S500

Photo Gallery

Muga - S500DE-MIL-MUG-2004-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

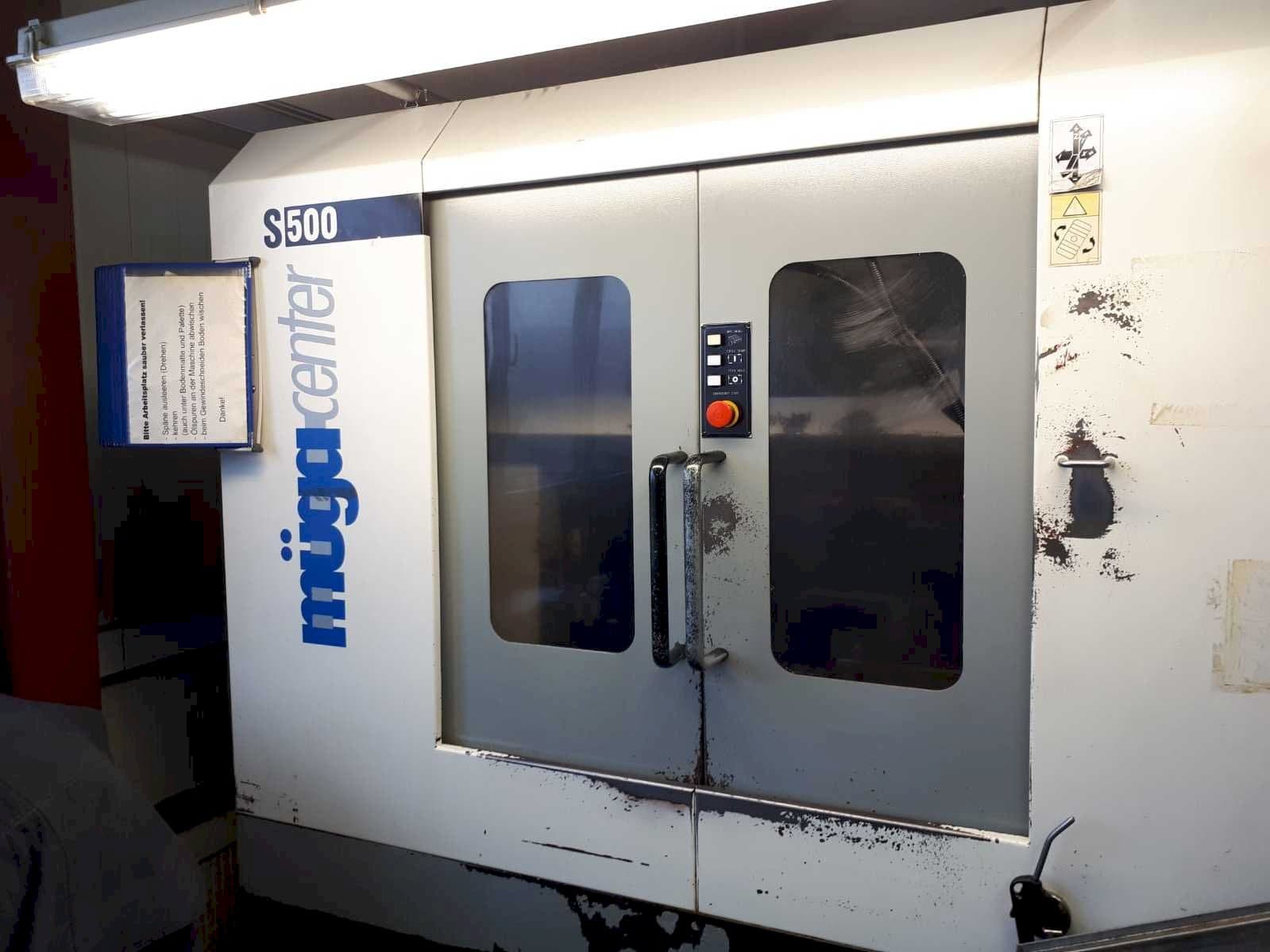

Müga S500 Vertical Machining Center

Show in original language

This Müga S500 Vertical Machining Center was built in 2004. This machine is operated through a control unit of the same brand. This 3 + 4 axis machine can work with a spindle speed range of 60 - 12000 rpm.

Overview

brand: Muga
year: 2004
MODEL: S500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - Muga S500

General Data

Measurements width: 1996 mm
Measurements depth: 4130 mm
Measurements height: 2370 mm
Machine weight: 5250 kg

Main drive

Number of spindles: 1
Spindle speed range: 60 - 12000 1/MIN
Number of axis: 3 + 4

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 350 mm
Z-AXIS Rapid traverse: 30 m/min

Tools

Type of tool holder: BT 30

Media

Main electronic connection: 400V - 3 phases 50Hz
Power consumption: 30 kVA

Additional Information

Machine Benefits

Technical Machine Benefits

Axes: 3 + 4 axes
Feeder: 4x10 mm2

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

müga - center S500 Platzbedarf .pdf
