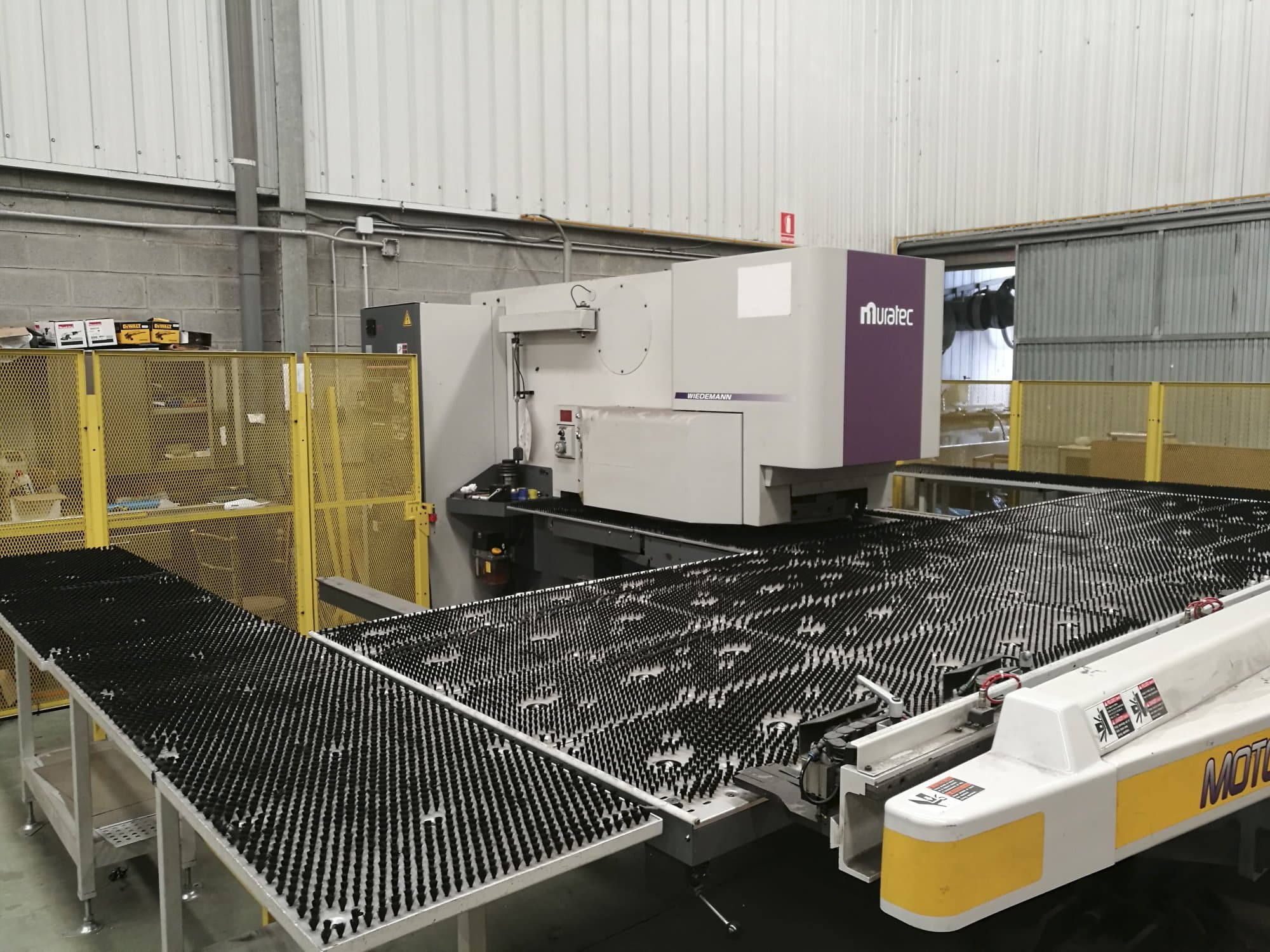

Murata Wiedemann M-2558-T Turret Punching Machine

Show in original language

This Murata Wiedemann M-2558-T Turret Punching Machine from 2007 has a record of 1000 working hours. Operated through a FANUC control unit, the model is a quick and precise option for all punching tasks. In the past, the equipment has handled mostly stainless steel of up to 1.5 mm of thickness and produced pieces for the Hostelry market. It also stands out for its perfect condition: with regular maintenance and low wear, this Murata Wiedemann is almost like a new machine. Approximately 50 extra punches are included as well as additional equipment.

Overview

brand: Murata Wiedemann
year: 2007
MODEL: M-2558-T
production hours: 1000
application type: Punching
Location: Spain
machine type: CNC Punch Press
availability: Sold
control unit brand: FANUC

Technical Information - Murata Wiedemann M-2558-T

General Data

Measurements width: 5152 mm
Measurements depth: 5374 mm
Measurements height: 2250 mm
Machine weight: 15000 kg

Control Unit

Brand: FANUC

Main drive

Punching force: 250 kN

Movement

X-AXIS Movement: 2550 mm
Y-AXIS Movement: 1635 mm

Workpiece

Workpiece x: 2500 mm
Workpiece y: 1525 mm
Workpiece z: 6.35 mm
Workpiece weight: 150 kg

Tools

Number of stations: 68

Max Material thickness

Steel: 6.35 mm

Media

Main electronic connection: 220 V
Power consumption: 23 kVA

Additional equipment

- 50 Punches (approximately)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
