Muratec - MW120ES-TUR-MUR-2008-00008

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

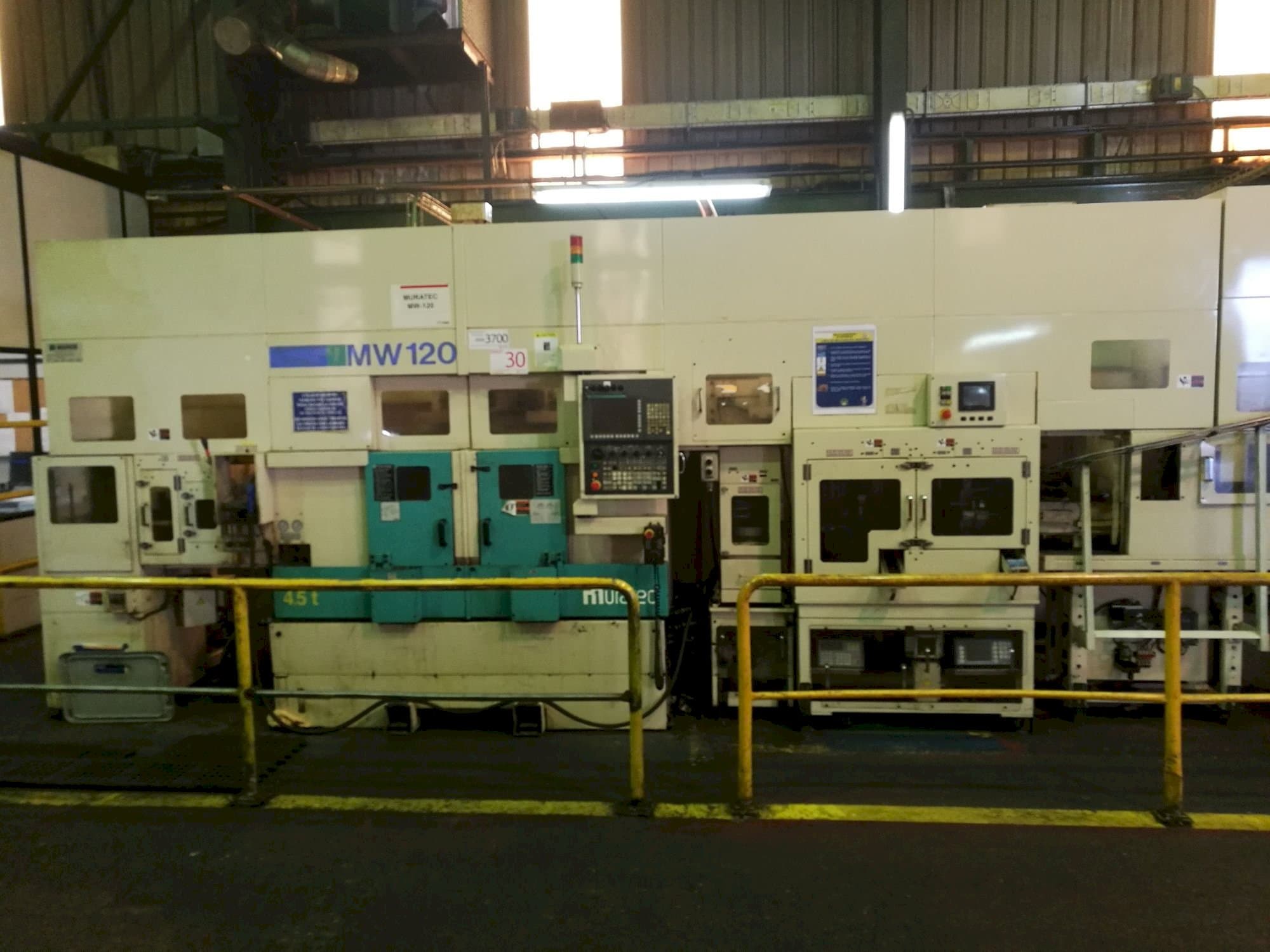

This Muratec MW120 lathe machine was manufactured in Japan in the year 2008. This machine is operated through a FANUC FS31i-Model A series control unit. It can perform with a spindle speed range 45-4500 rpm. It has a working record of 3000 production hours. This machine is in a good status.

Overview

brand: Muratec
year: 2008
MODEL: MW120
production hours: 20000
application type: Turning
Location: Spain
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Muratec MW120

General Data

Measurements width: 1760 mm
Measurements depth: 1900 mm
Measurements height: 2500 mm
Machine weight: 4400 Kg

Control Unit

Model: FS31i-Model A series
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 45 - 4500 1/MIN

Movement

X-AXIS Movement: 130 mm
Z-AXIS Movement: 145 mm

Workpiece

Workpiece drm: 120/230 mm
Workpiece weight: 3 Kg

Turret

Number of turrets: 2

Tools

Slots in storage: 8
Max tool diameter: 40 mm

Media

Main electronic connection: 200 V / 50 Hz
Power consumption: 16 kVA
Chip conveyor: Yes

Additional Information

Machine history

Material type: Astm-a105

Machine Benefits

Qualitative Machine Benefits:
- - Machine is in good status

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
